InnoPhase is a fabless semiconductor company specializing in innovative wireless solutions

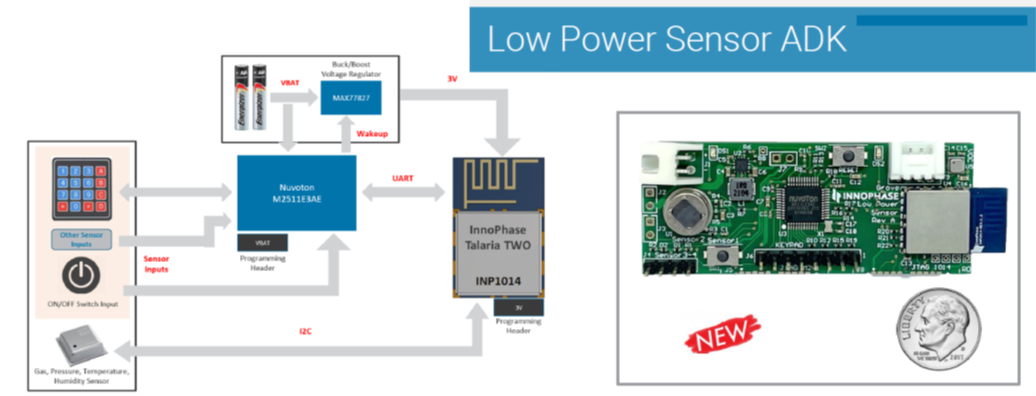

Low Power Sensor ADK
- Battery Powered; Wi-Fi Enabled Sensors
- Low Power / Long Battery Life Wi-Fi Provisioning Through BLE5
- Periodic Sampling and/or Posting of Sensor Data
- Low Duty Cycle or Event-Based Posting
- Battery Powered Web Client (HTTP/s) or MQTT Publisher Wi-Fi and TLS Security
- Maintains Router Association/Connection (Keep Alive)
- Device Management

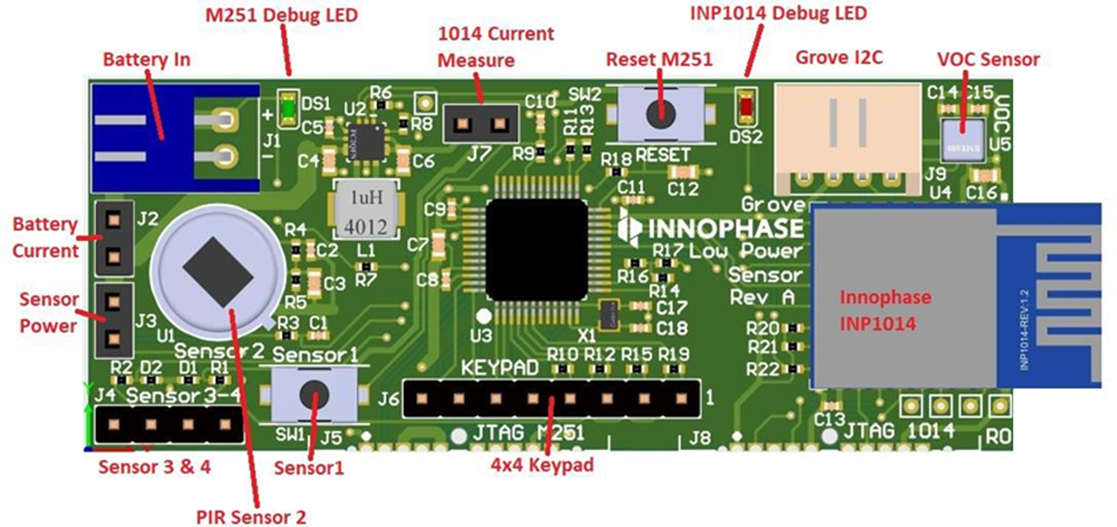

Hardware Details – Low Power Sensor ADK
Key Hardware Features:
- Small form factor (25.4mm x 63.5mm.
- Supports constant monitoring of sensors & long interval monitoring of “sleeping sensors.”
- Rapid integration of new customer sensors (Grove I2C Connection)
- Integrated PIR Motion Sensor.
- Integrated VOC gas sensor.
- Directly connected to the internet via existing home or enterprise router.
- No separate gateway required – unlike BLE or Sub-GHz technologies.
Wi-Fi connectivity serves as the critical infrastructure enabling seamless data transmission,
transforming healthcare by bridging medical devices, patient environments, and healthcare systems, thereby unlocking unprecedented capabilities that were previously unimaginable.

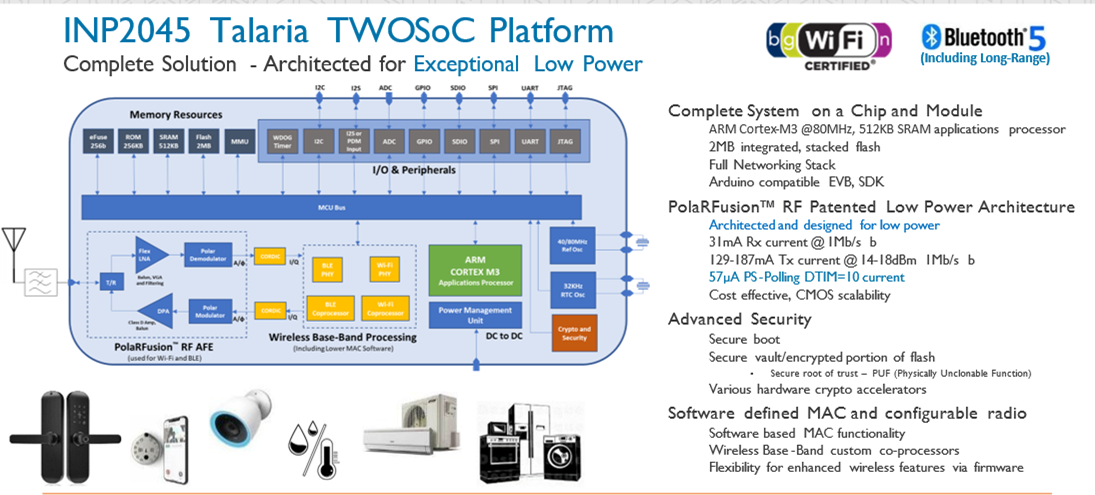

The Talaria TWO Ultra Low Power (ULP) Wi-Fi and BLE platform is the technology behind InnoPhase IoT’s low-power, long-battery life solution. Using a dual-stack power optimized software solution combined with an advanced digital polar radio design, the multiprotocol cloud-connected platform eliminates the challenges involved with yesterday’s power-hungry processing of video IoT designs.
Until now, untethered wireless cloud connectivity and an elusive long battery life were two major design barriers for video IoT. The new InnoPhase IoT video solution features address all these previous challenges with a solution available now that provides 40% lower power consumption and 1+ year battery-life performance. InnoPhase IoT also offers device developers a variety of market ready solutions from OEMs and ODMs.

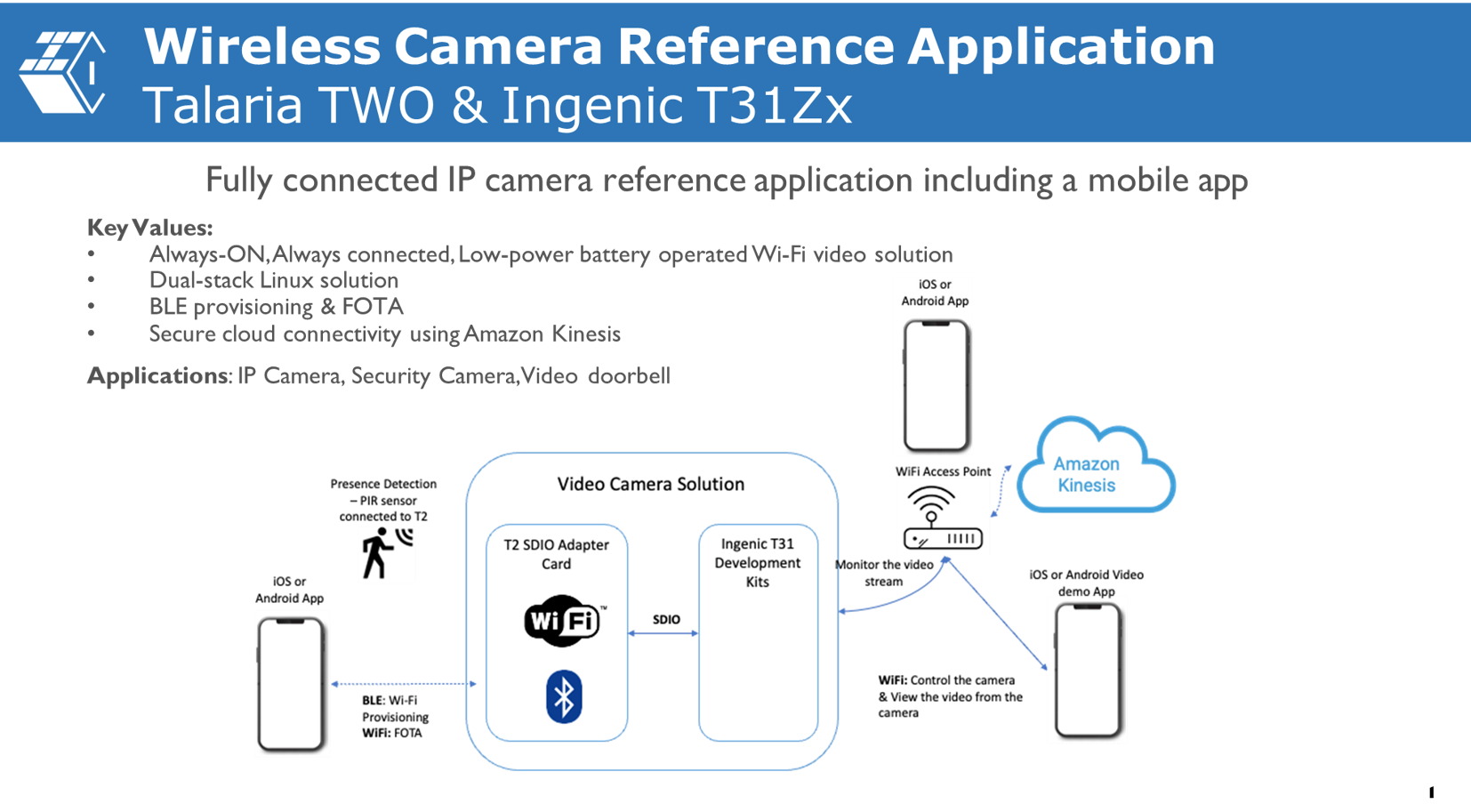

The camera will be in one of two key modes:
Wi-Fi Idle Connected Mode
- Talaria TWO is connected to Wi-Fi router/AP, processing beacons, and sending Keep-Alive messages as needed.
- Ingenic T31 Video Processor platform is completely powered down.
Active Video Capture Mode
- Ingenic T31 platform actively capturing High-Resolution / 30fps video and passing it to Talaria TWO over SDIO.
- Talaria TWO sends large data packets over high-bandwidth Wi-Fi to the internet.
