Vanity Light: Concept
- 2mm Film Coupler

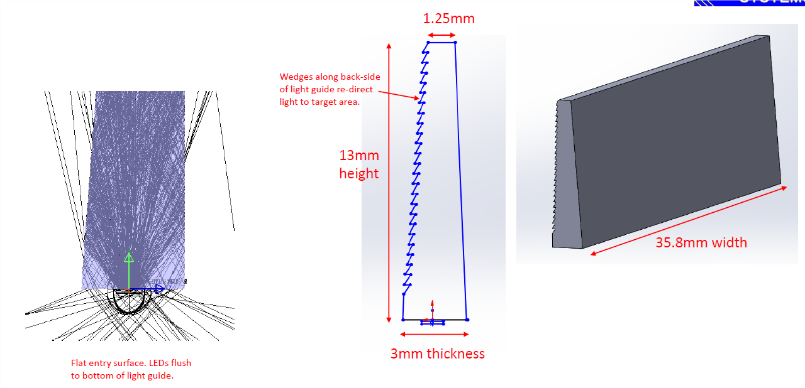

- Coupled into textured Wedge
- Wedge directs light outward
- Lens material / texture options
- Satin Ice Diffusive Material
- White Back Paint
- DBM engineered texture
Advantages:
- Surface-mount pick and place tape and
- reel optical component
- Converts top emitting LEDs into side- emitters
- Able to use with many automotive- approved LEDs
- Couples light into lightguides of any thickness (size-specific tooling required)
- Provides color-mixing for RGB LEDs
- Creates continuously lit output’ zone for
- emitted light (eliminates dark spots)
- Mechanical protection for LEDs in thin applications
- Creates a defined entry point/stop for mechanical alignment/attachment to light guide
- Can be arranged in a linear array
- Good fit for size-constrained low-profile packages
