FOCUSLIGHT ULTRA-WIDE FOV VCSEL MODULES
The technology is ideally suited for Driver Monitoring Systems (DMS) and Occupant Monitor Systems (OMS).
- Passive DMS for the Steering wheel (torque), braking, capacitance (touch for steering wheels), or front camera.
- Camera-based Active DMS/OMS – real-time video data of the driver’s face to actively measure the driver’s attention and engagement.
- ToF-based Active DMS/OMS VCSEL is generally used as the light source, 3D depth imaging, head position monitoring, gesture monitoring, analysis of the line of sight, not disturbed by strong sunlight, and real-time.

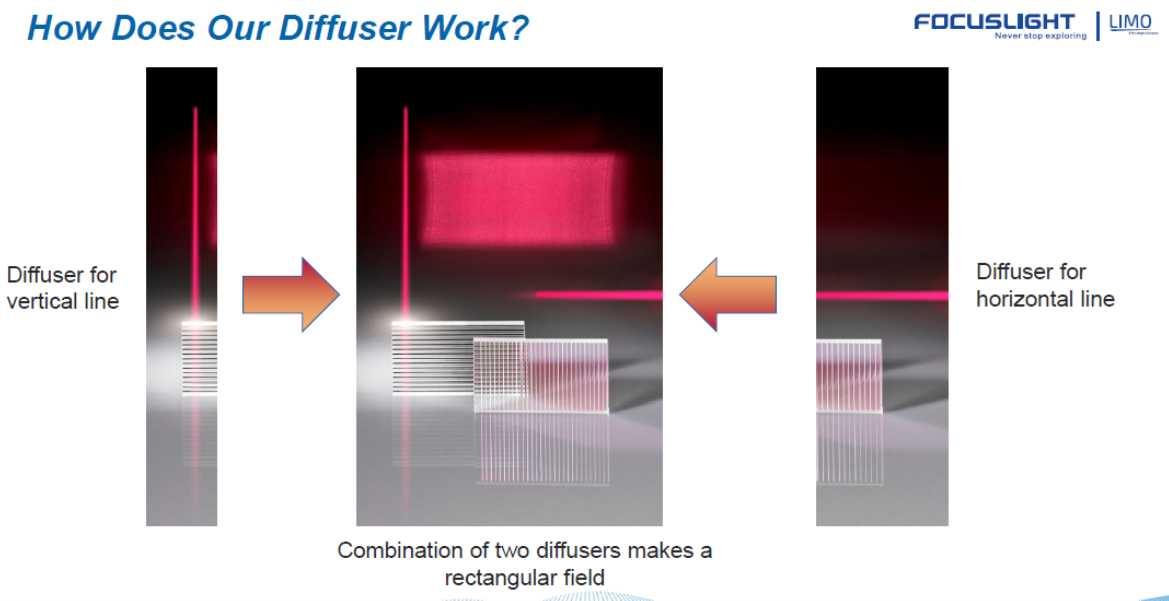

- Key Feature No.1- Uniformity & Edge Sharpness and 2D intensity distribution of 120°x20° FOV diffuser:
- Key Feature No.2 – Automotive Grade Reliability passing thermal shock test (-40℃~110℃), 20min/cycle, and FocusLight glass diffusers stay intact even after 3104 cycles.

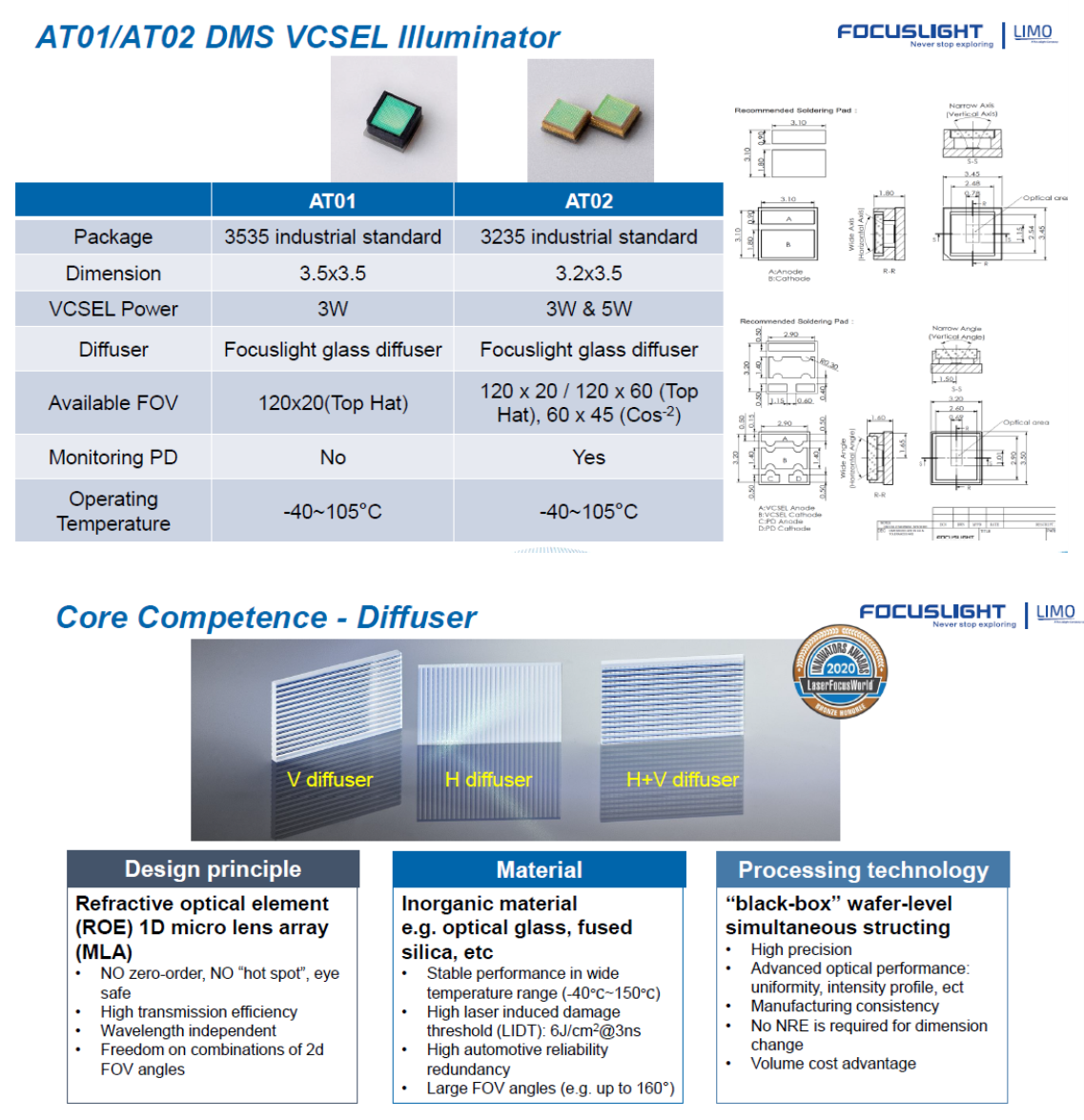

FocusLight Ultra-Wide FOV VCSEL Illuminator AT02 Pro with 160°x120° FOV, 3W output power, and a batwing intensity distribution. AT02 Pro is designed for DMS (Driver Monitoring System), OMS (Occupancy Monitoring System), machine vision, augmented reality, intelligent transportation, laser infrared lighting, etc.
Key features, in summary, are Ultrawide FOV and High Uniformity Automotive Grade.
For more information Click https://www.focuslight.com/site/content?id=360.
