10W NAVTV / EGGTRONIC WIRELESS CHARGER FOR DIRECT IN-VEHICLE INTEGRATION

The Wireless Charger Pro is an Automotive Grade, Qi certified wireless charger for all Qi compatible cell phones. Using a triple-coil design, you have more flexibility in positioning the phone, and it also features sophisticated detection technology to ensure that it doesn’t attempt to charge a foreign object placed on the pad. Another unique and useful feature of this device is that when a phone is properly positioned, you will receive an audible (beep) indicator to notify you that the charging has started.

Certification:

  1. CE certification.
  2. FCC certification.
  3. ROHS certification.
  4. KC certification.
  5. UL certification.

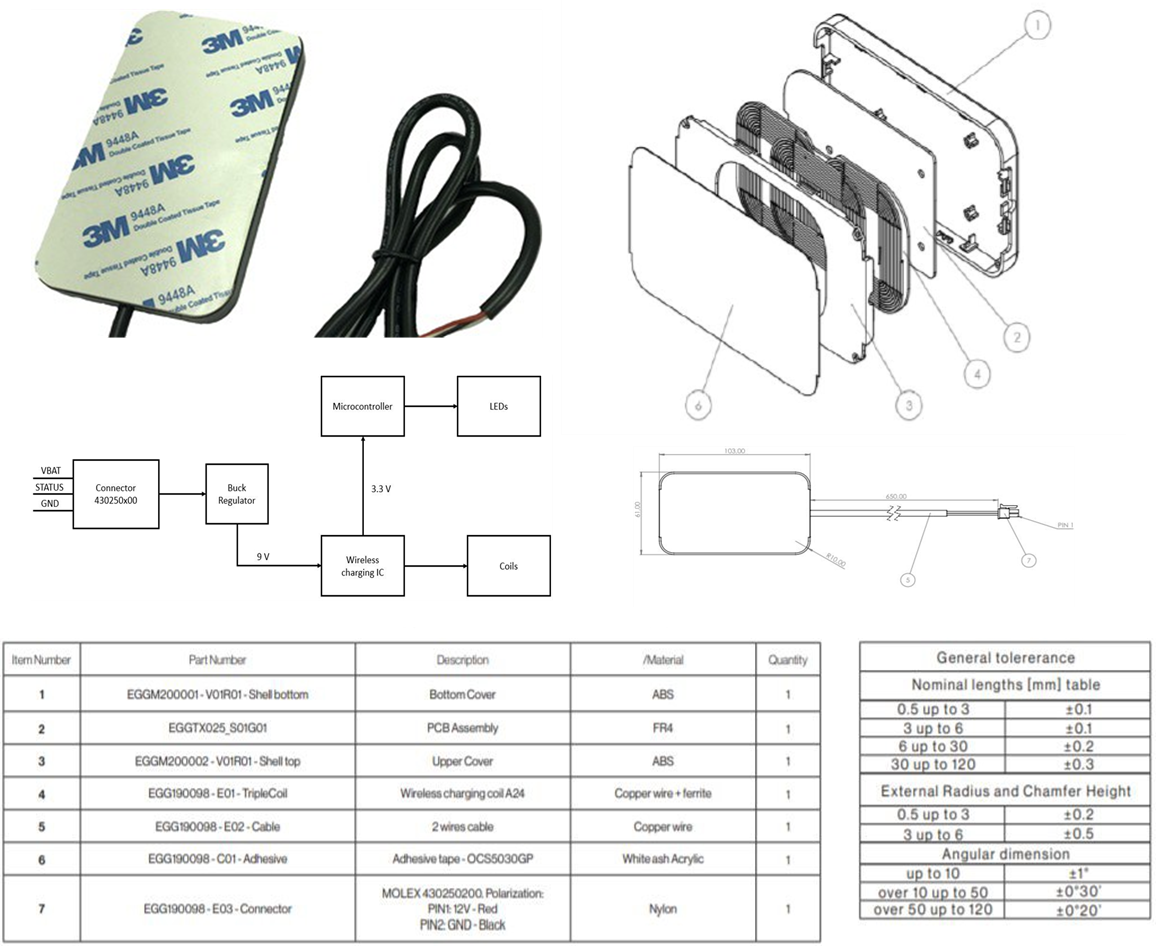

The “Triple coil embedded system” is a wireless charging  module  designed  to  be integrated in any surface.  Using  the  provided  adhesive  mounting  tape,  it  can  be installed under slim surfaces (maximum 5 mm thickness). No need for screws: the installation process is quick and  easy,  and  the  charger  can  be  removed  without damaging the top. The “Triple coil embedded system” embeds a Qi certified chipset: it is compatible with the WPC Qi 1.2.4 wireless charging standard and works with any Qi-compliant device. A  triple-coil  system  ensures  high  positioning freedom. The “Triple coil embedded system” is designed in two variants. The Variant 01 has two power input signals, the Variant 02 has  two  power  input  signals  and  one  output  Status Signal (SS). The SS is controlled by the system and its function is to indicate if a device is in charge (3.3V output) or not (Open Drain – HiZ output).

Features:

  • Compatible with WPC Qi 1.2.4 wireless charging standard.
  • Designed for integration: a completely hidden solution.
  • Industrial adhesive mounting tape, no need for screws.
  • Quick and practical installation process, easy charger removal without damaging the top.
  • Maximum power 10W
  • Triple coil free positioning technology allows wider charging area compared to standard solutions.
  • Designed to be installed under surfaces with maximum thickness of 5 mm (0.19 in).

Piece Cost:

Unit cost based on volume wants. Email designhmi@gmail.com for piece cost.
