In Seat Wireless Charging Gap Filler with Potential Add-In for UVC Sanitization
Seat gap fillers are designed to fill the gap between the front seat and center console to block items from falling into it. Working with UVC Sanitization Innovators and Eggtronic completed design concept by integrating Wireless Charging and UVC Sanitization to standard Gap Filler.
For initial design using Patented WEDGEE from Drive Time Automotive Products, LLC; however, this feature update can be incorporated into most standard in market gap fillers.
Key design feature as regards wireless charging that it is designed for iPhone® and newer, Samsung Galaxy®, AirPods® and all other Qi devices. Eggtronic wireless charger provide all the basic and enhanced functions of a Qi charger.
- Wireless charging Qi 1.2.4 compliant
- Three Transmitting Coil
- Each coil can charge up to 15W independently
- Supporting Baseline Power Profile (BPP), Samsung Fast Charge protocol (from 2019 part of official Qi Specs) and Extended Power Profile (EPP). Apple Fast Charge up 7.5W
- Compact and integrated solution for driving Smart charging profiles (BPP 5W, Apple 7.5W, Samsung 10W, EPP 15W)
- Foreign Objects Detection
- High efficiency
- Automotive compliant.
Products that are Qi certified (not only Qi compliant)by the Wireless Power Consortium have several important advantages like fully compatible with every Qi device on the market, future-proof for potential changes coming in Qi 1.3 and Safety compliant.
The FCC label certifies that the electromagnetic interference from the device is under limits approved by the Federal Communications Commission.
Prop 65 relates to the Safe Drinking Water and Toxic Enforcement Act, 1986, which is a California law that inform the public about the presence of toxic substances that cause cancer and/or birth defects in consumer products and their environment.
Design with / without 10,000 mAh Power Pack. Wedgee fill the ineffective gap between your seat and console. UVC Sanitization Chip has small form factor, USA Made, UVC LED emitter that requires only PWR / GND connectivity. The only controller module needed is for interface for regulated voltage and controlling OFF / ON functionality. The UVC LED Sanitization results have been tested and certified by US test labs as we as the DOD. The team is cognizant of automobile reliability requirements such as the stringent “Arizona” criteria and their LEDs have demonstrated robustness.

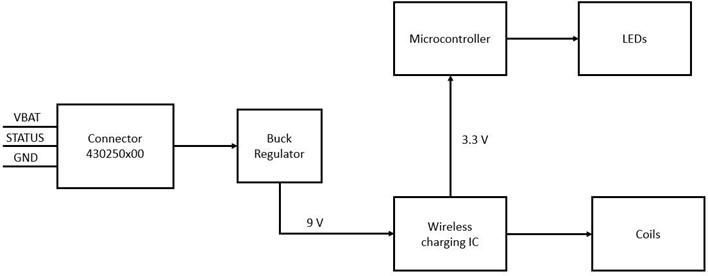

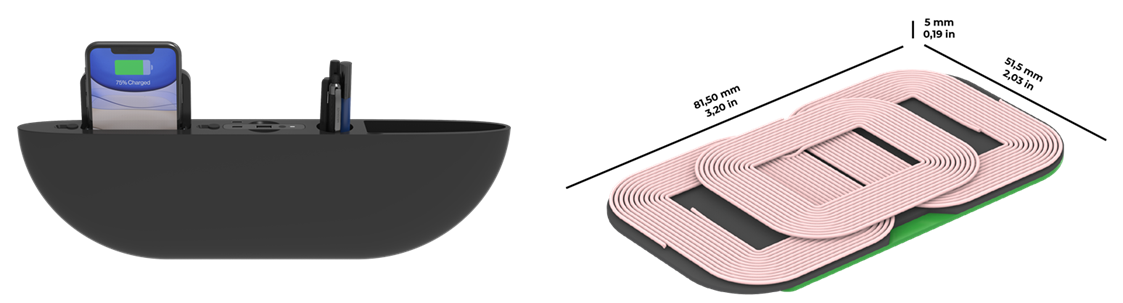

The “Triple coil embedded system” is a wireless charging module designed to be integrated in any surface. Using the provided adhesive mounting tape, it can be installed under slim surfaces (maximum 5 mm thickness). No need for screws: the installation process is quick and easy, and the charger can be removed without damaging the top. The “Triple coil embedded system” embeds a Qi certified chipset: it is compatible with the WPC Qi 1.2.4 wireless charging standard and works with any Qi-compliant device. A triple-coil system ensures high positioning freedom. The “Triple coil embedded system” is designed in two variants. The Variant 01 has two power input signals, the Variant 02 has two power input signals and one output Status Signal (SS). The SS is controlled by the system and its function is to indicate if a device is in charge (3.3V output) or not (Open Drain – HiZ output).
Key features of Wireless Charging:
- Compatible with WPC Qi 1.2.4 wireless charging standard.
- Designed for integration: a completely hidden solution.
- Industrial adhesive mounting tape, no need for screws.
- Quick and practical installation process, easy charger removal without damaging the top.
- Maximum power 5W.
- Triple coil free positioning technology allows wider charging area compared to standard solutions.
- Designed to be installed under surfaces with maximum thickness of 5 mm (0.19 in).

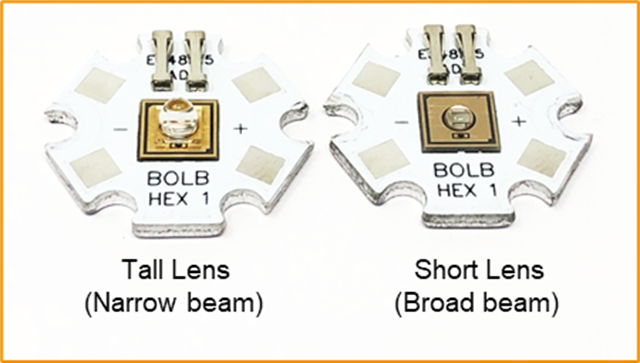

One example is using BOLB LED Chip – a UVC LED is typical single 272 nm emitter, 125 mW @ 350mA 6V, 6060 SMD, L70 4000 hours from Time 0 at case temp of 38 °C. Proven in against SarsCOV2 droplet, N95 Mask Refresh. Surface Treatment, Healthcare and ongoing testing against SarsCOV2 aerosol, occupant protection in enclosed spaces – Air Treatment Healthy Buildings. IAQ / IEQ services.
The other technology company is Seoul Viosys and SETi’s Violeds Technology Proves 99.9% Sterilization of Coronavirus (COVID-19) in 30 Seconds.
In the study by SETi and Seoul Viosys, Violeds technology is used to show just how strong the sterilization effect can be on COVID-19 when exposed to Violeds photons for 30 seconds. The study also finds the coronavirus becomes even more sterile when placed closer to the photon with longer exposure time. In addition to testing the coronavirus, the Violeds technology also proved to be successful in sterilizing 99.9% of other harmful bacteria such as Escherichia coli, Staphylococcus Aureus, Pseudomonas Aeruginosa, Klebsiella Pneumoniae, and Salmonella Typhimurium – Refer Business Wire.
For more application information contact designhmi@gmail.com.
