Application here is for lighting scopes to integrate high power white LEDs; gesture sensors that will permit to turn-on and turn-off the light or to vary the intensity of the light (dynamic illumination effects). The gesture sensor will be set to activate the signal with the minimum distance (5 mm).

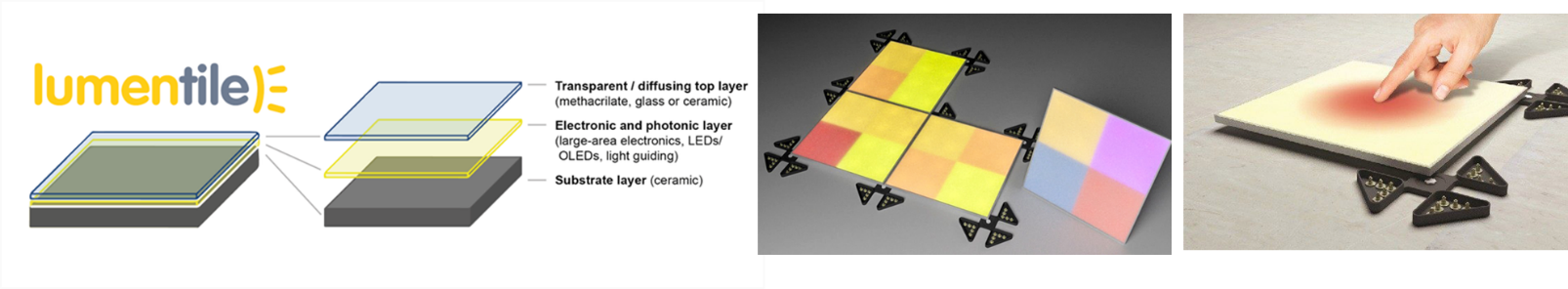

LUMENTILE WALL LDR LIGHTING is suitable for its integration in the interior of offices, housings, retails areas and any other indoor applications where a customizable lighting system is desired. It allows the users to foster creative lighting scenarios for every specific surroundings with an easy and direct interaction with the user.
This modular lighting solution is being looked at for integration into automotive interiors.
Current design is based on lighting office spaces based on following specifications:
- Thickness: 18 mm
- IP: IP65
- Dimensions: 30×30 cm
- Sensors: gesture sensors
- Top layer: matt translucent glass
- Bottom layer: ceramic
- Type of LEDs: RGB or White high power LEDs
- Power consumption: 3,75 to 5,75W Max=20,75W (per tile)
- Type of installation: vertical
For more information contact Lumentile at https://www.lumentile-project.eu/noticia/lumentile-in-the-kimconference2016/
In the meantime Design HMI is discussing with Lumentile technology application for in car ambient lighting.
