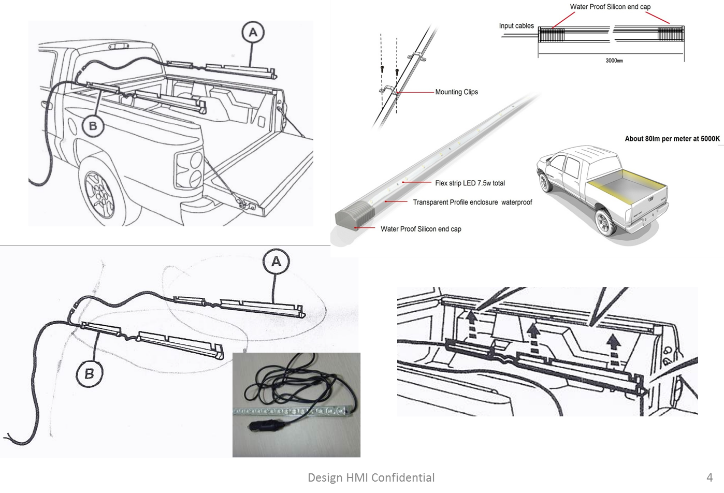

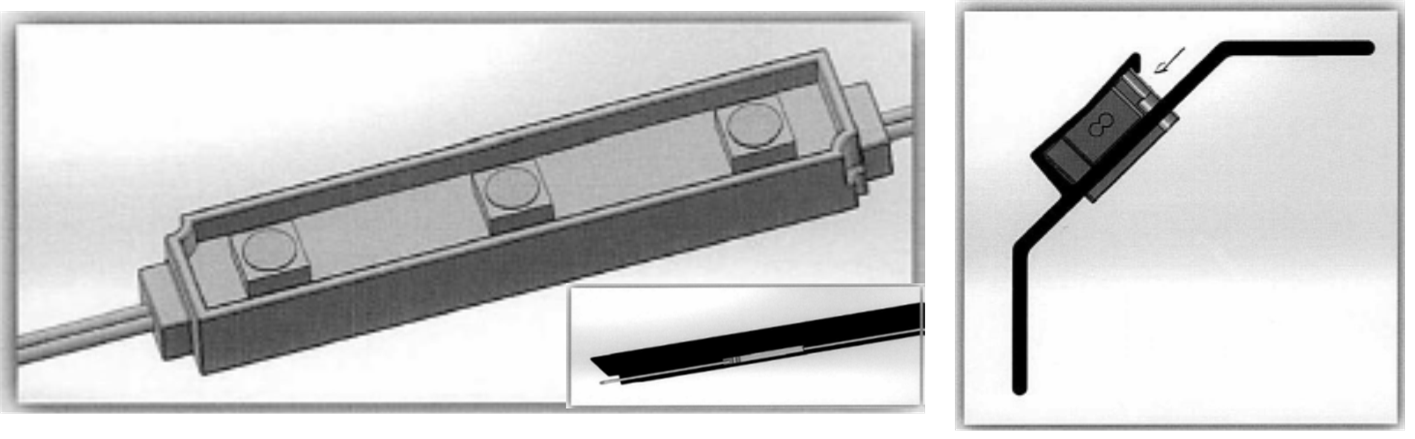

Simple, reliable assembly. The extrusion provides a means to mount the light module assembly to the truck at either a 45 degree or flat mount. Locates the individual LED assemblies. An integral latch holds the LED assemblies in place – and – provides a trough to route and hold the wires in place.

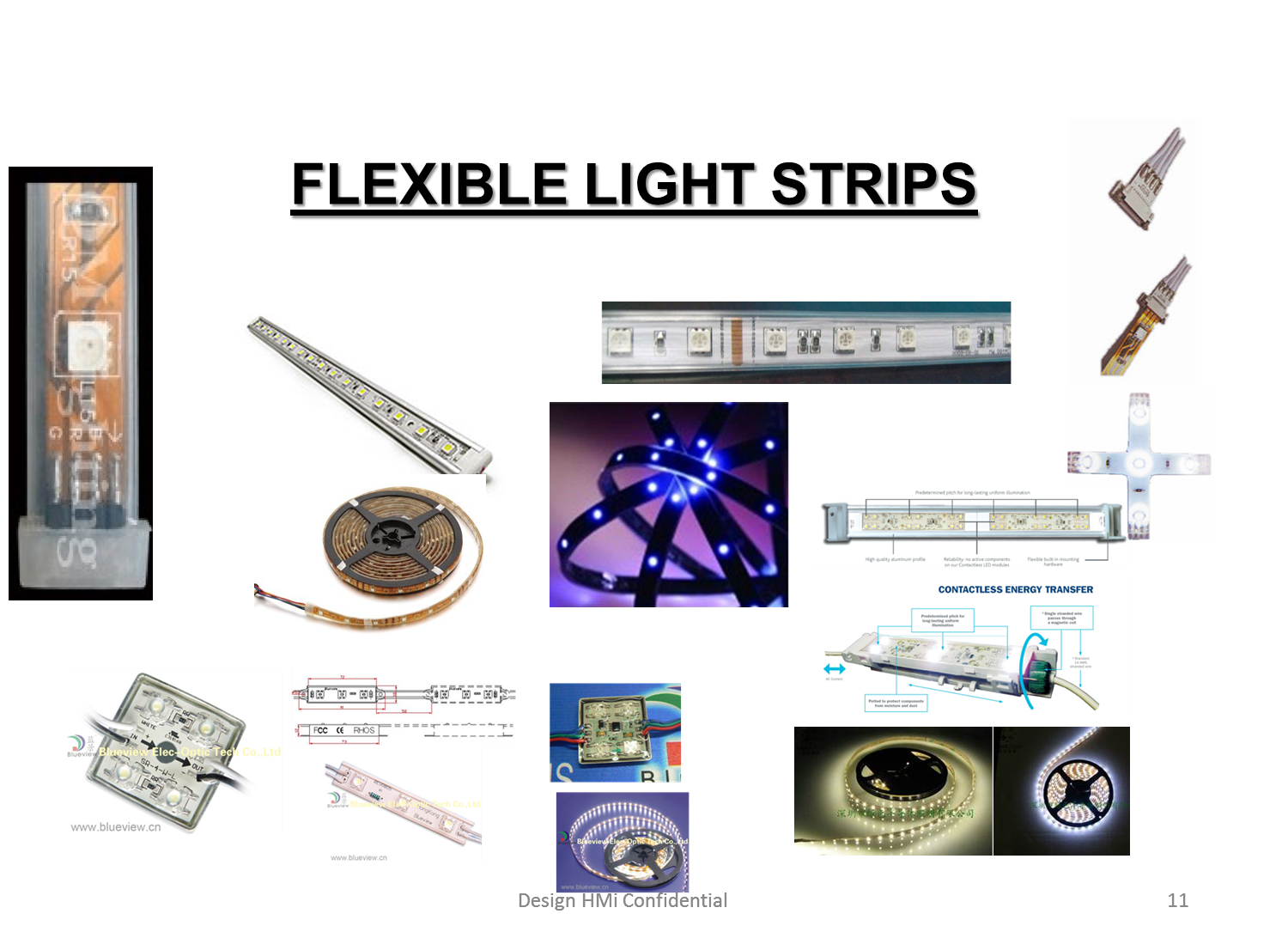

Using low cost LED modules mounted in a Polypropylene extrusion will provide a robust product that lends itself to after-market sales and installation using only a portable drill. Simple Christmas Tree fasteners attach the Lighting strips to the truck, trailer, RV or Boat in a matter of minutes.
Prewired with sealed USCAR connectors further simplifies the installation.
Specification:
- 0W per 1.5 meter
- 90lumen output
- 30 LEDs each
- Total 4w per truck light
- Total 180 lumens
- 60 LEDs for 3 meter
- Center beam intensity at 24″ is about 54 Lux
Cost:
- $19.00 per 1.5 meter for flexible water proof strip,
- $10.8 per 1.5-meter rigid water proof strip,
Bill of Materials:
Light bar, Mount clip, Mount screw, Input cable with standard plug, Input is DC 12V, can be wired directly to the battery power supply, & Linear constant voltage regulator.
Optional USCAR Connectors – when supplied with optional USCAR connectors, multiple lighting units can be connected without the need for tools.
An additional advantage comes from selected sealed connectors that will withstand exposure to Automotive fluids, rain, snow and mud.
With each lighting module at 30″ in length, they can be installed around support posts and/or spaced to provide optimum lighting in interest.
Lighting modules will fit all standard Ford Truck beds from 5.5 foot, to 6.5 foot to 8.0-foot-long models.
