Cicor Electronic Solutions is an electronics service provider with competence in 3D-MID Technology. 3D-MID technology that allows integrator to integrate mechanical and electronic functions within one component in the smallest of spaces.
Coupled with injection molded interconnects process stages, assembly times and number of components can be reduced increasing reliability and reducing cost.

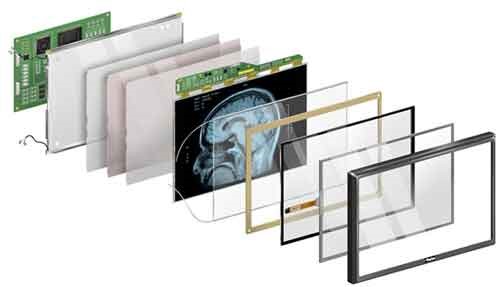

Parker Chomerics integrated displays are complete with Anti-Glare, Hard Coated Finishes and Anti-Reflection Coatings that also increases overall light transmission. They also offer various EMI shielding options such as wire mesh, ITO films and coatings.

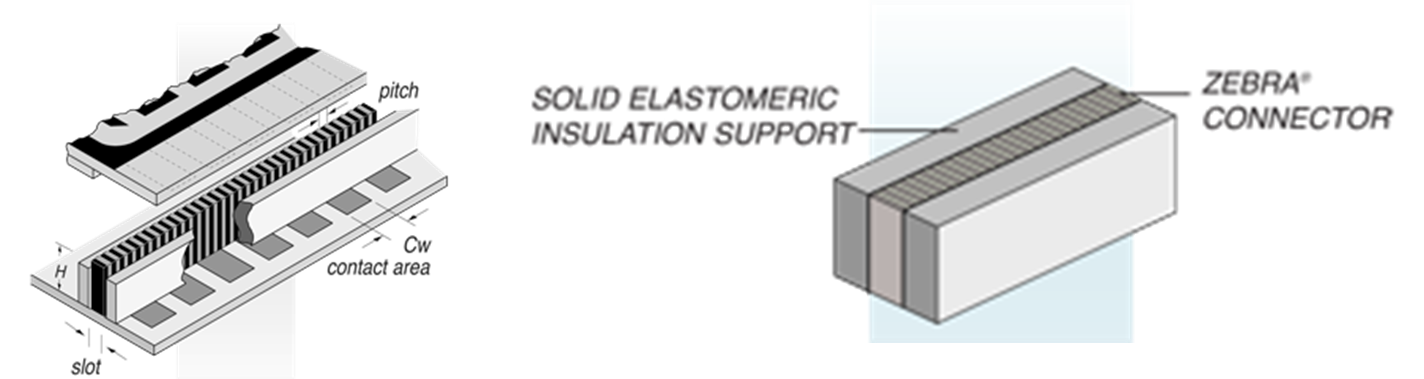

Fujipoly Solid Self-Supporting ZEBRA® connector utilizes a standard ZEBRA® connector element supported by a soft, non-conductive silicone rubber on one or two sides. The silicone rubber creates a larger width that eliminates the need for a holder, and yet the force required for deflection is very low. The standard Solid Self-Supporting ZEBRA® connector has a 0.020”/0.50mm wide ZEBRA® connector element and is available in 8 different widths to accommodate LCD’s with a glass lip overhang of 0.050”/1.27 mm minimum.
Ficosa has developed a windshield deicing system that consists in a thermal-electronic module through the windshield cleaning system is used to evaporate the ice or thin frost layer covering the windshield.

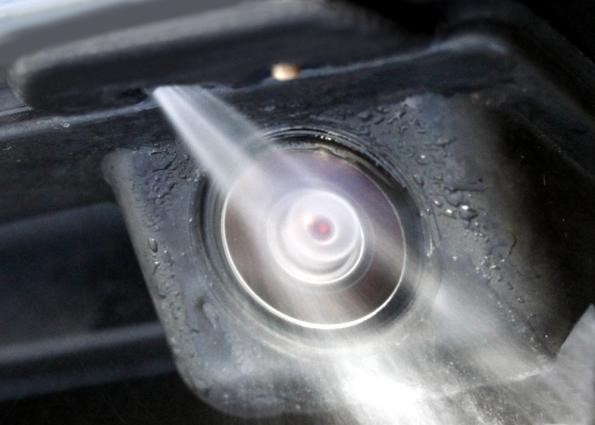

They also have developed product that expels water and air to remove dirt from sensors and cameras. It is a Sensor & Camera Cleaning that removes dirt from cameras and sensors through a hybrid system that expels water and/or pressurized air depending on the need and lenses position, guaranteeing at all times a proper performance.

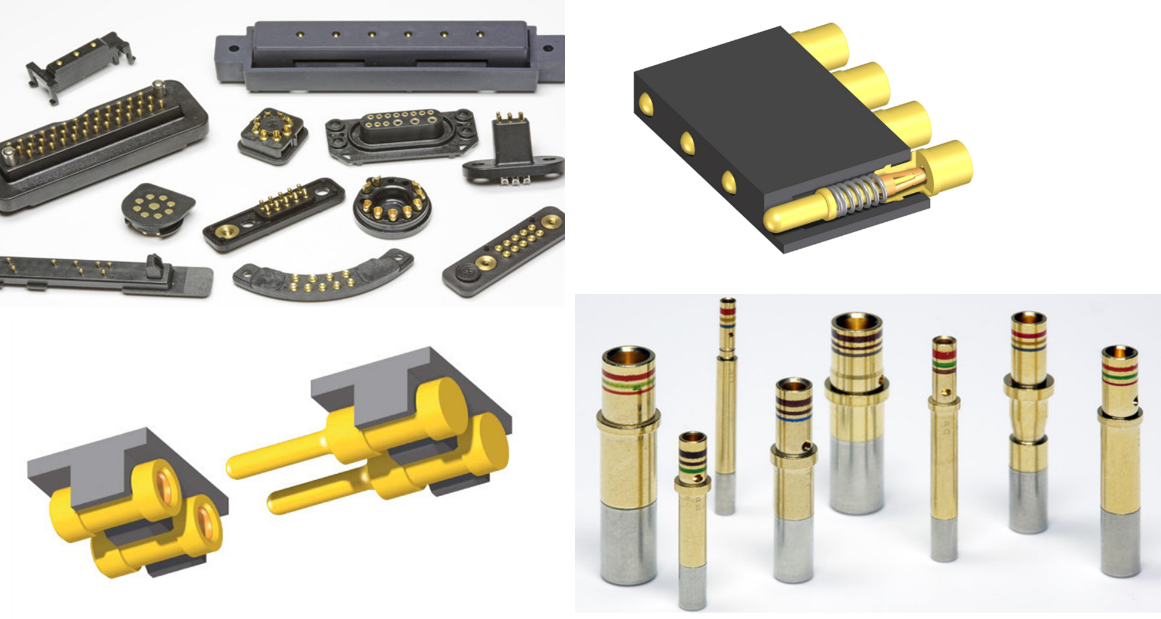

PRECI-DIP spring loaded connectors like Mill-Max have great potential for application in automotive applications.
- Operating temperature range: -55 … +125 °C
- Climatic category (IEC): 55/85/21
- Operating humidity range: annual mean 75 %
- Max working voltage: 100 VRMS/150 VDC (2.54 mm grid)

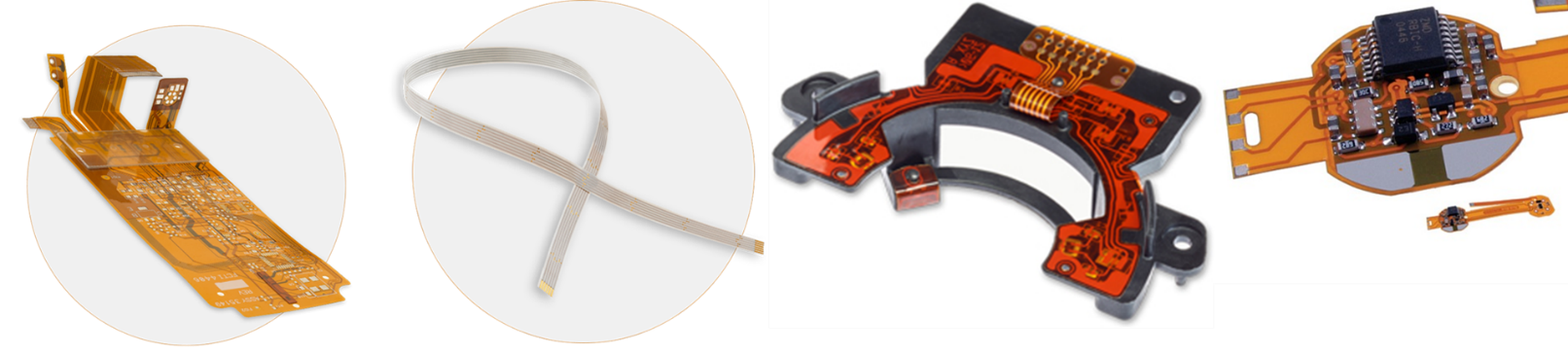

Flexible Circuit Technologies designs double sided flex circuit is a circuit having two conductive layers, one on each side of the base layer of polyimide within the circuit. Trace patterns can be created on both sides of the substrate film and can be connected where desired with copper plated through-holes.
In addition, their flat flex circuits can be designed to hold any number of electrical components or simply as a connector between two circuits.
