Power Adjust Mirror & Display

Powered Interior Rear View Mirror w/Gesture Recognition

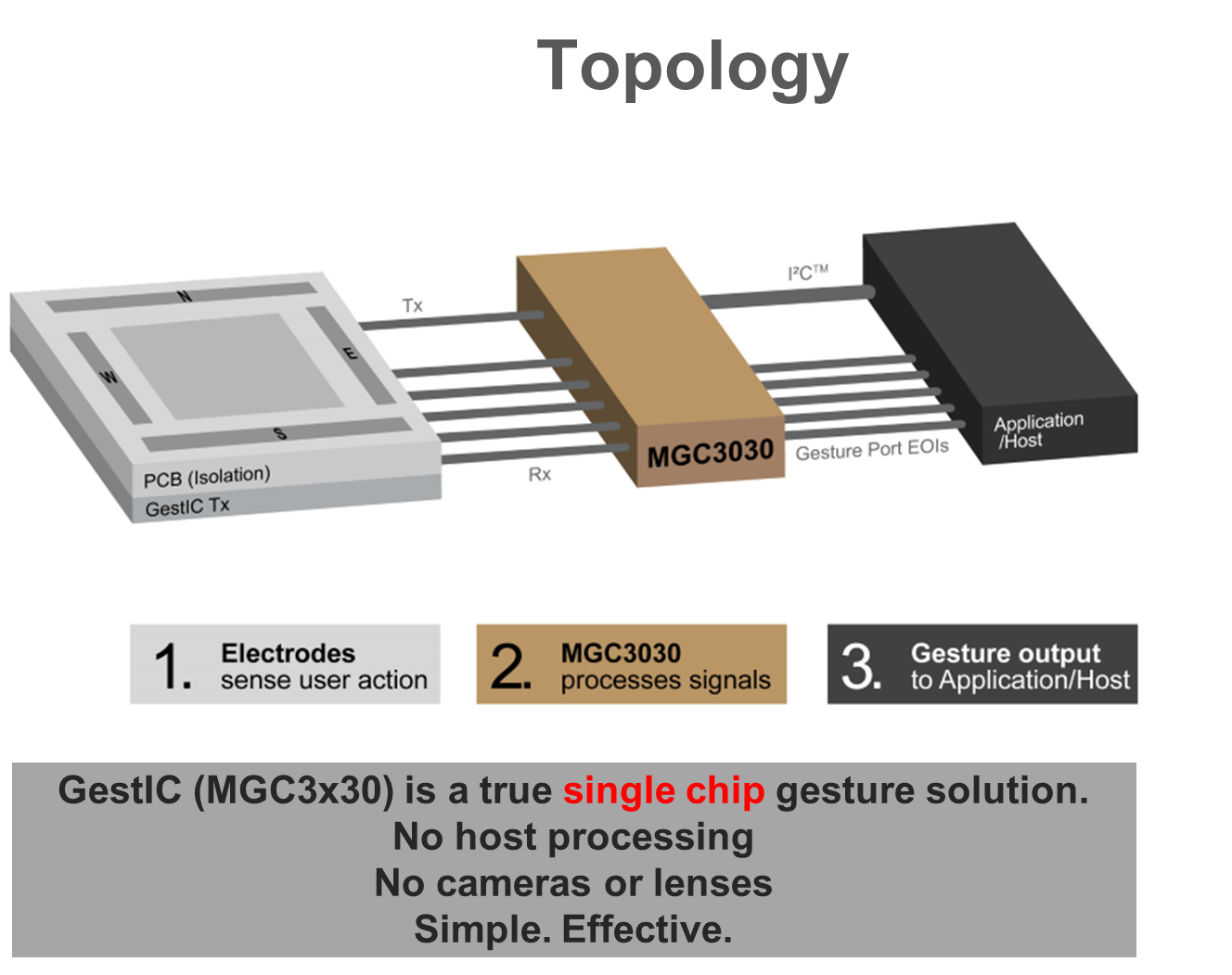

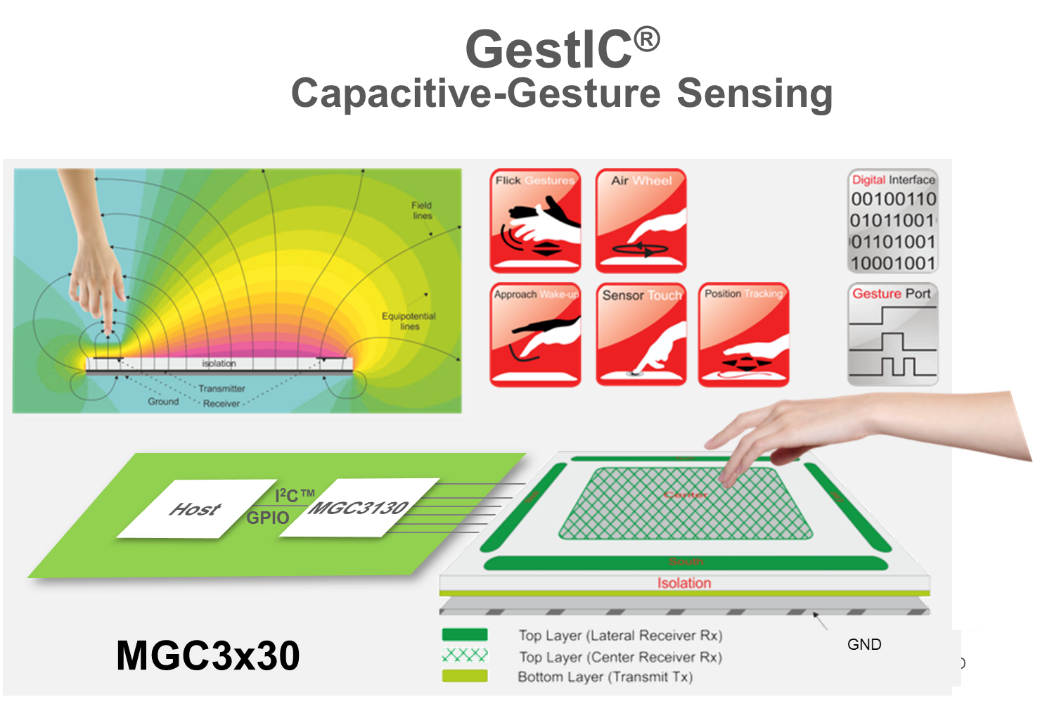

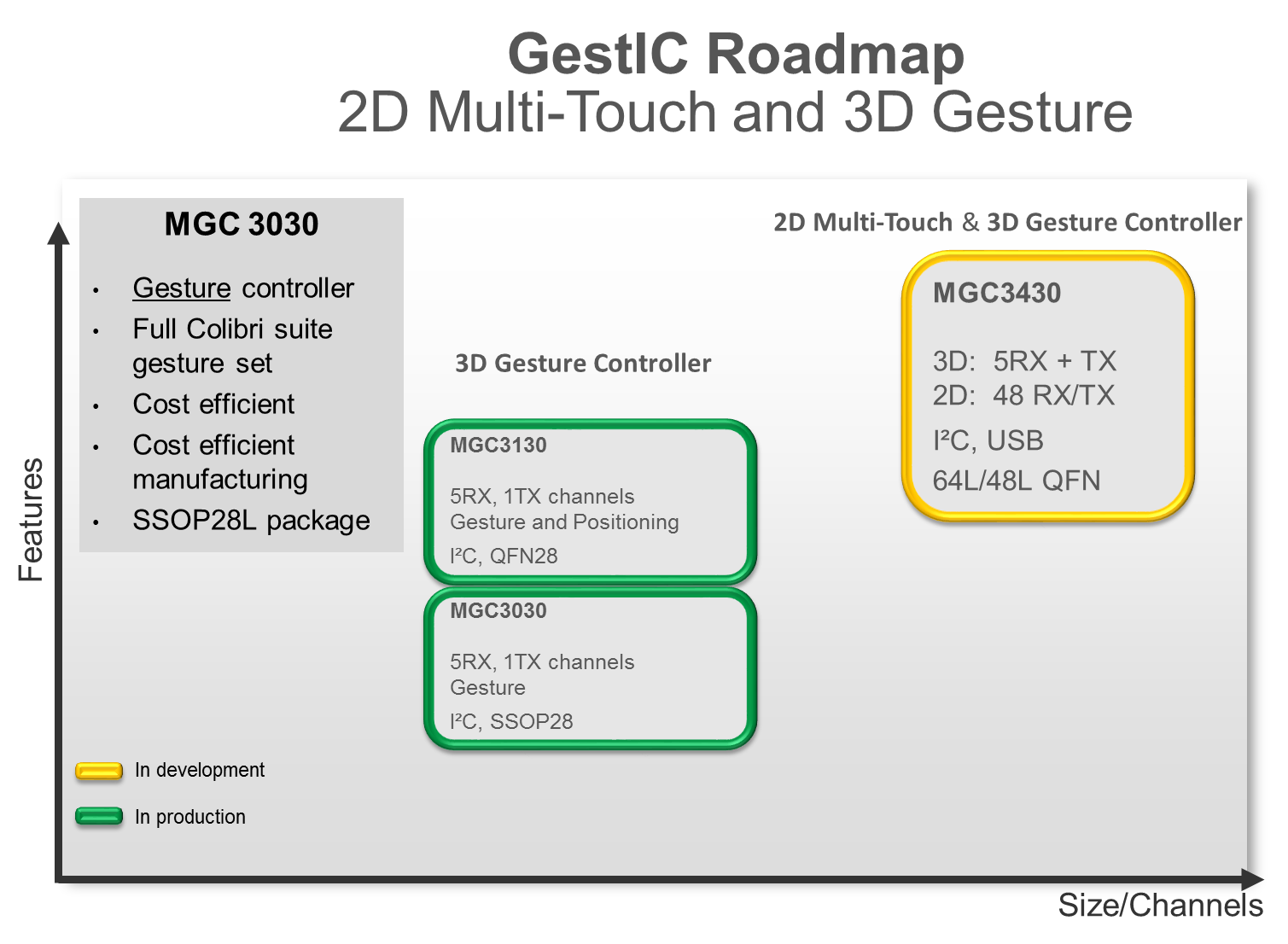

Microchip Gesture Recognition technology can enhance the feature content:

1. Enhanced noise robustness Enhanced algorithm for automatic frequency adaptation (AFA).
2. Improved Air Wheel
3. New gestures
4. Presence
5. Hold
6. Double Flick
7. Wave X/Y
8. Support of pulses for Air Wheel

Microchip solutions pass:

• IEC61000 Emission and Susceptibility tests
• Appliance, Consumer
• EFT and BCI tests
• Automotive
• Noise detection
• High Signal-to-Noise Ratio (SNR)
• Stability over voltage and temperature
• AN1334: Techniques for robust touch sensing design

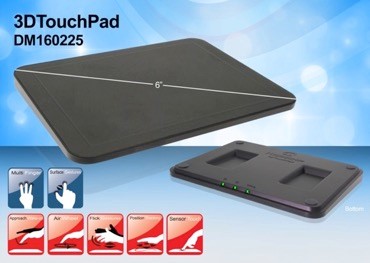

Microchip Input Sensing Overview:

1. Broad Solutions Covers Wide Range of Applications
2. Proximity detection, Keys, Metal over Capacitive, Sliders, Touch Pads, Touch Screens, 3D position sensing, and more…
3. Easy Path to System Integration
4. Turnkey Products for fast time to market
5. Leverage Microchip’s broad PIC microcontroller portfolio
6. Robust Noise Performance
7. Unique noise limiting options such as differential sensing, active guard, and various filtering techniques
8. Low Power Performance
9. Utilizing PIC microcontrollers with XLP technology
10. Smallest Package Options

Luxury cars have auto adjust for all features like seats, steering wheel, exterior mirror and even climate control. However, the interior rear view mirror still must be manually adjusted which can be irritating at times.

FZB has developed a micro brushless motor with patented gearing mechanism which can be used to adjust mirror through mirror adjust switch and set in memory. This way with the touch of the memory function the interior mirror also automatically adjusts to the correct position like other functions.

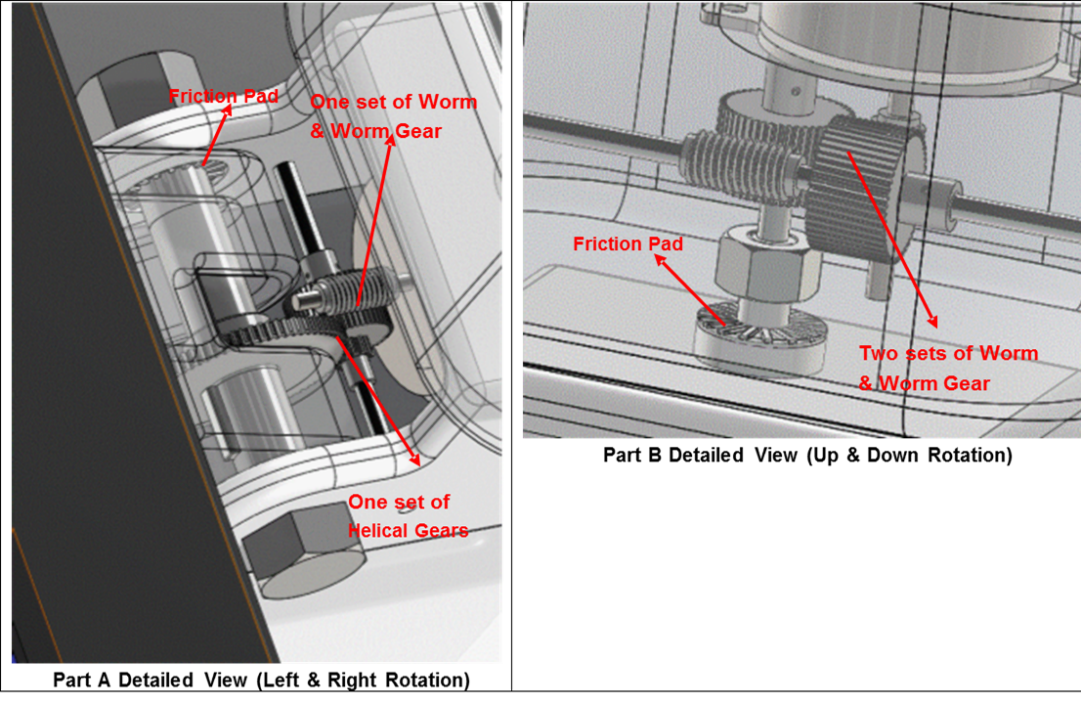

Notes to the Design:

• Friction Pad: It is used to apply friction and sustain the position of the whole structure and make the hand-adjust function feasible.

• The rotation of the motor will be transferred into the up & down/right & left rotation of the rear view mirror by the helical gears/worm & worm gears.

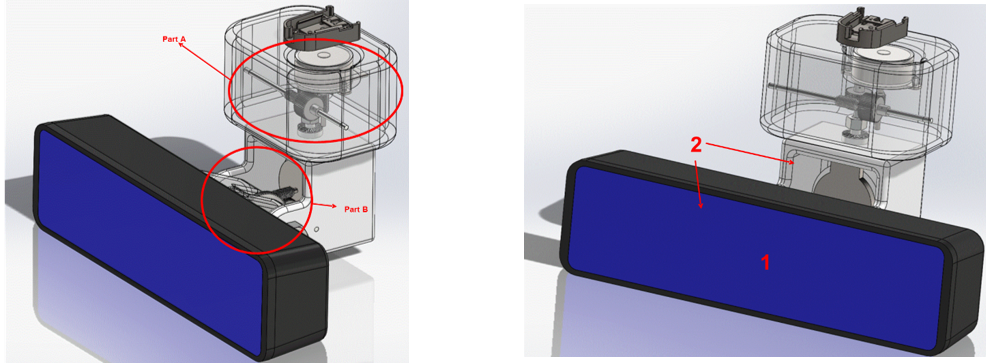

As you can see there has been further design and the concept is ready for 1^st stage prototype development.

Both the brushless motor and gear mechanism are targeted to run with no discernable noise and minimum design changes to the rear view mirror.

Speed of adjustment would be same as exterior mirror.

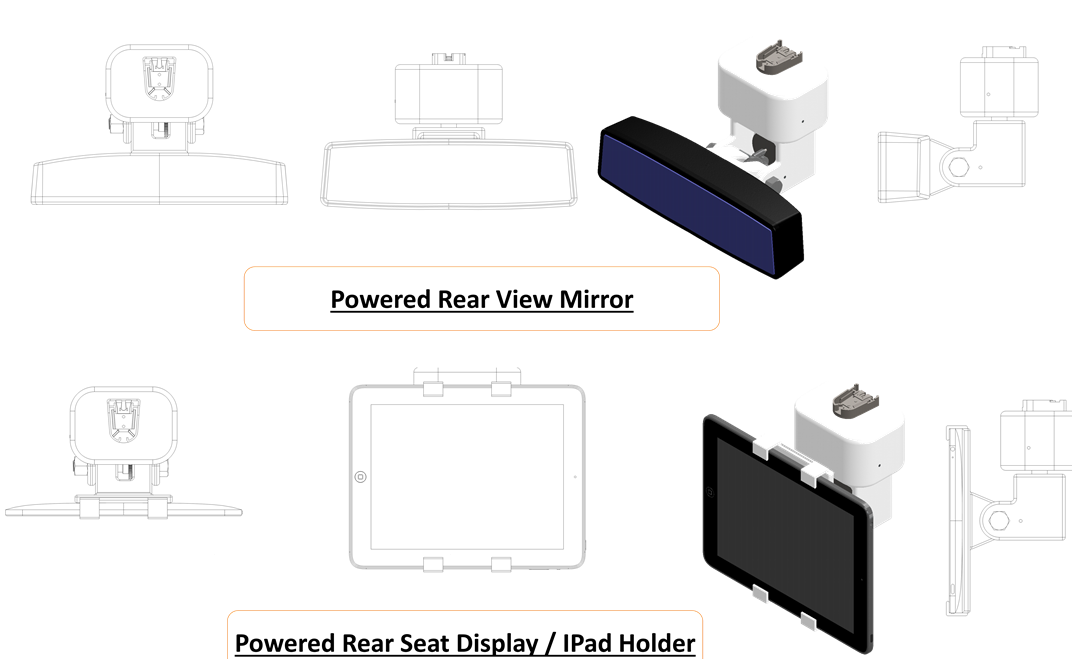

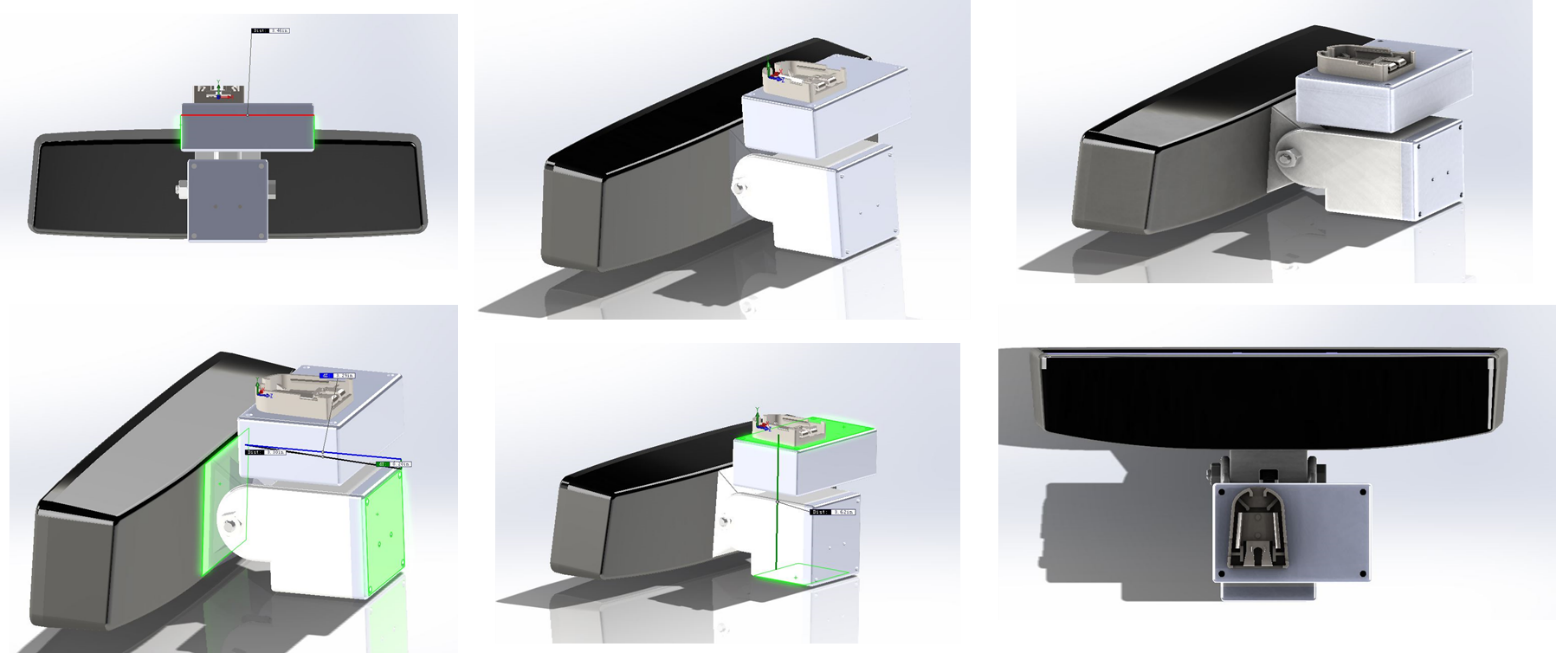

Further design details as below – the intent is to attach the motor assembly to the rear view mirror using 3M attachment strip.

For more information, please contact designhmi@gmail.com or click FZB Dare Auto

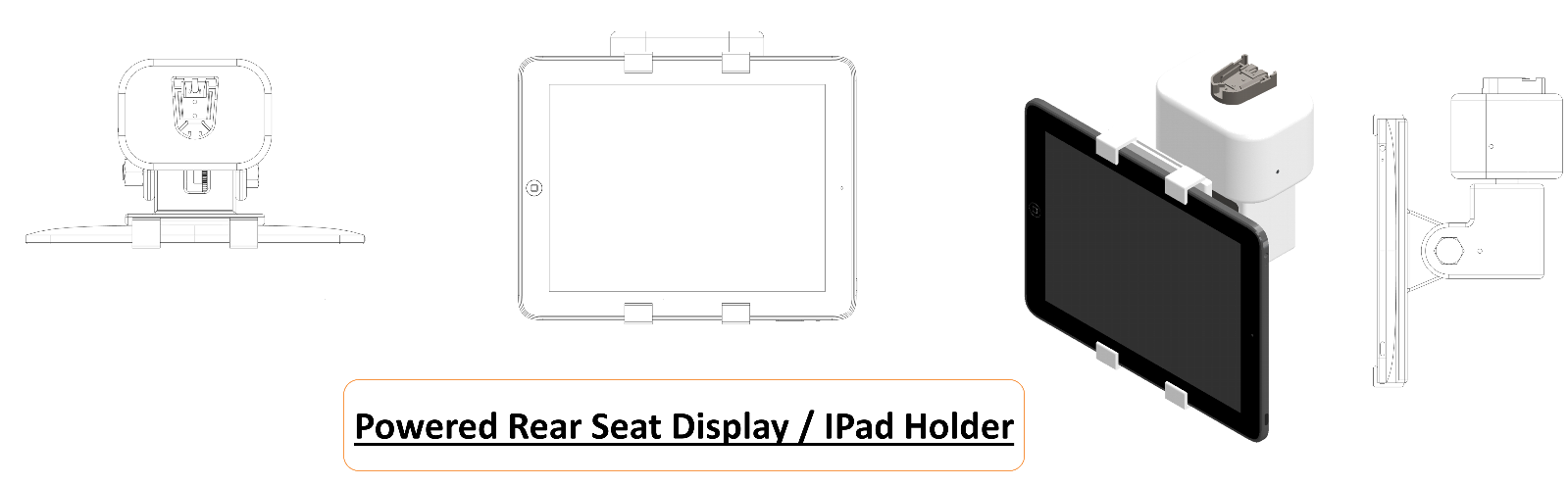

Luxury cars have auto adjust for multiple features with the exception of front IP mount, after market smart phone holders and / or rear seat displays. Based on the direction of morning sun it is very easy to have white out of the display.

It is inconvenient to physically adjust the display while driving. In the rear seat, especially with young kids in child seat, it is very difficult to adjust the fixed iPad or other displays mounted in the back of front seat.

FZB Technologies have developed a Brushless Micro Motor and Gear Mechanism that is noiseless and allows easy adjustment of the display to avoid whiteout affect.

FZB micro brushless motor with patented gearing mechanism which can be used to adjust through wired or wireless controller. You can also integrate a light sensor which can auto adjust based on level of sun glare on the display.
