Highlights 2015 Display Expo

The 2015 Display Expo in San Jose was very educational for automotive and other applications. Advancements in OLED and other displays clearly are designed to greatly enhance user experience.

In addition there were presentations on capacitive and other touch inputs designed to be enablers for better touch display system design.

Clearview power™ Technology

• Invisible: Up to 90% visible light transmitted; absorbs only ultraviolet and infrared
• Efficient: Over 10% achievable; optimization is independent of transparency
• Low cost: low-cost, non-toxic materials; industry standard deposition equipment
• Thin and light: film is less than 1/1000th of a millimetre thick
• Ubiquitous: ClearView Power™ can generate electricity on any surface or device without aesthetic impact

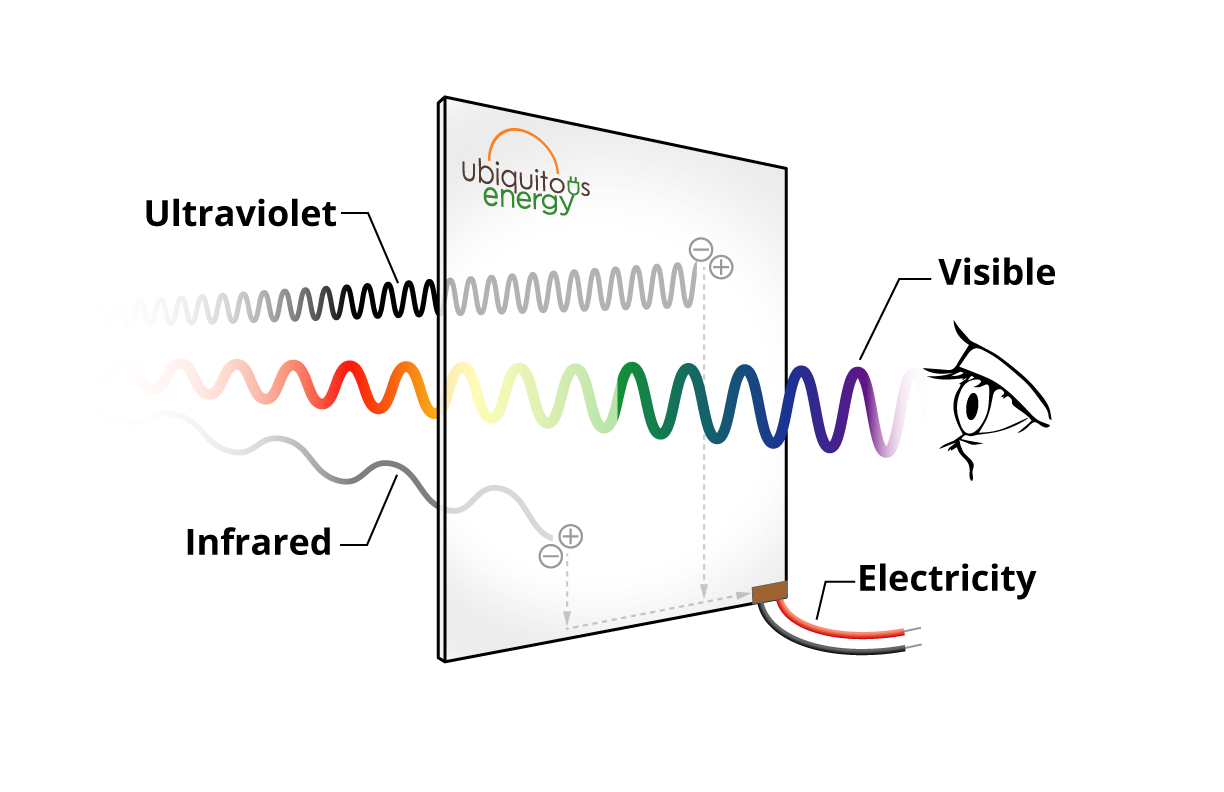

ClearView Power™: Ubiquitous Energy has redesigned the solar cell to selectively transmit light visible to the human eye while absorbing only the ultraviolet and infrared light and converting it into electricity. It is transparent solar technology, allowing any surface to convert ambient light into useful electricity without impacting the way it looks. Two thirds of the light available for energy harvesting is in the ultraviolet and the infrared, leading to practical efficiencies over 10% while maintaining up to 90% visible transparency. ClearView Power™ leverages Ubiquitous Energy’s technology and patent portfolio, including exclusive rights to award-winning technology developed by the company co-founders at MIT.

For more information Click CLEARVIEW

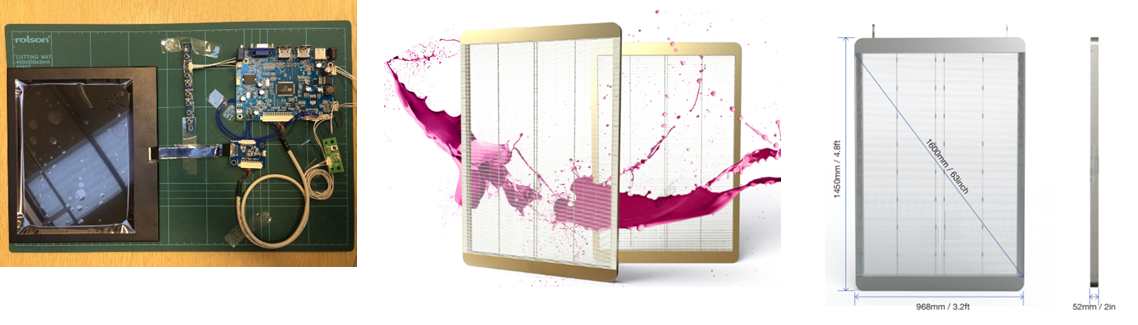

AU TRANSPARENT DISPLAYS

Features

• High colour saturation
• High resolution
• High transparency
• Simplifying customer design
• Fully integrated and flexible plug-and-play function
• Easy installation and easy handling

For more Information Click AUO

TRU VUE ENGINEERING OPTICS

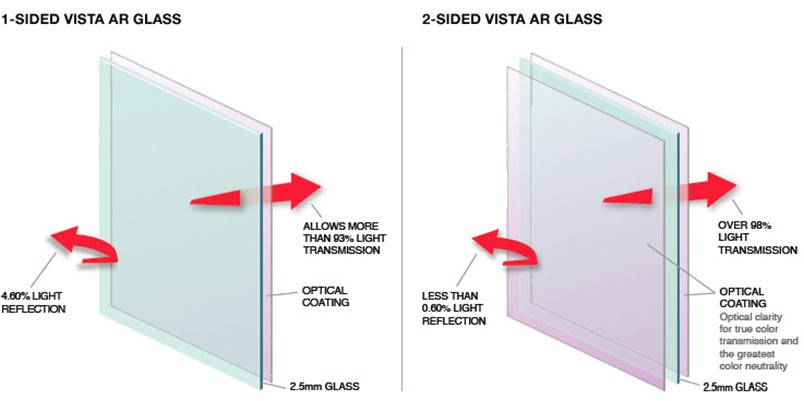

Engineered Optics at Tru Vue utilize thin film technology to control the reflection and transmission of light, even restricting it to specific wavelengths. It is designed to minimize reflection and maximize transmittance for high-visibility displays.

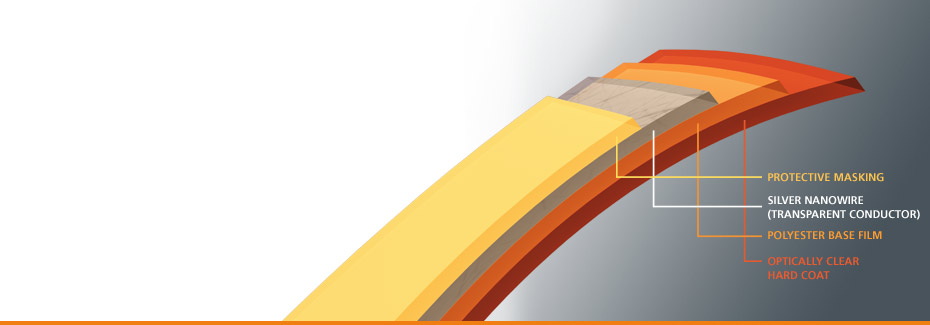

 FLEXX TRANSPARENT CONDUCTIVE FILMS (TCF)

 Low resistance, high transmission, flexibility, low cost FLEXX Transparent Conductive Films (TCF) are designed as enabling technology for touch technology application. It is designed for thin, lightweight and flexible devices with a large display that need superior optical performance and long battery life.

FLEXX Films use silver nanowire (AgNW) technology, which offers an combination of optical clarity, cost and durability, while removing brittleness. Films are designed for all touch panel sizes – projected capacitive touch panels that require lower sheet resistance.

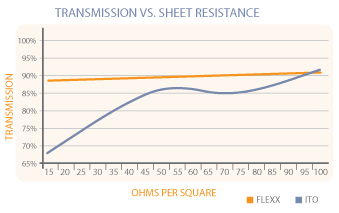

FLEXX Films can achieve very low sheet resistances of 70 ohms/sq. and 60 ohms/sq. sheet resistance – superior alternative to ITO films. It also has 90% transmissivity which is better than ITO film.



FLEXX Films are highly flexible suited for curved, foldable and rollable devices. While indium tin oxide (ITO) films dramatically lose sheet resistance after a minimal number of bending cycles, our films maintain electrical performance after hundreds of thousands of bending cycles — minimizing manufacturing yield losses.

For further information contact FLEXX@carestream.com

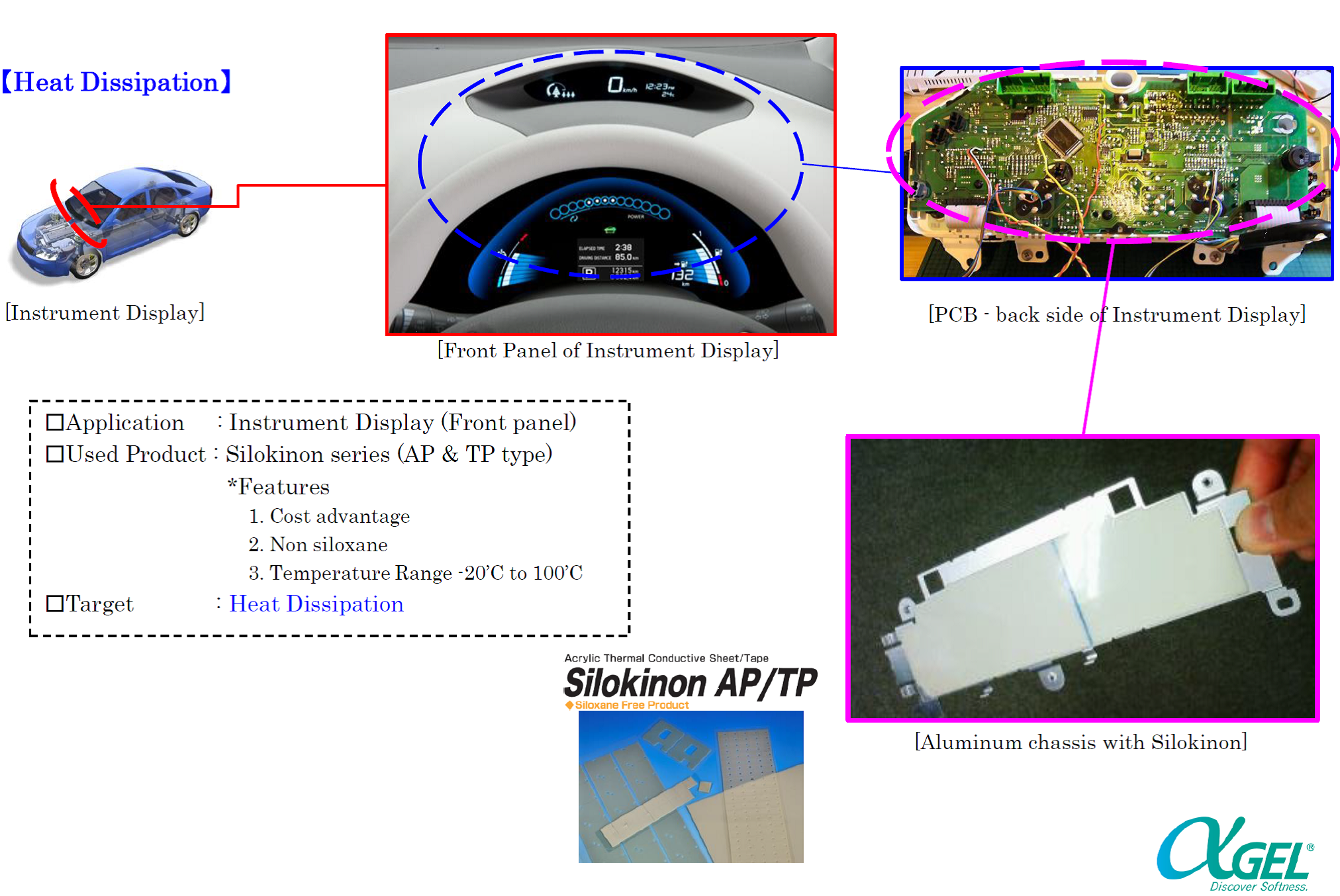

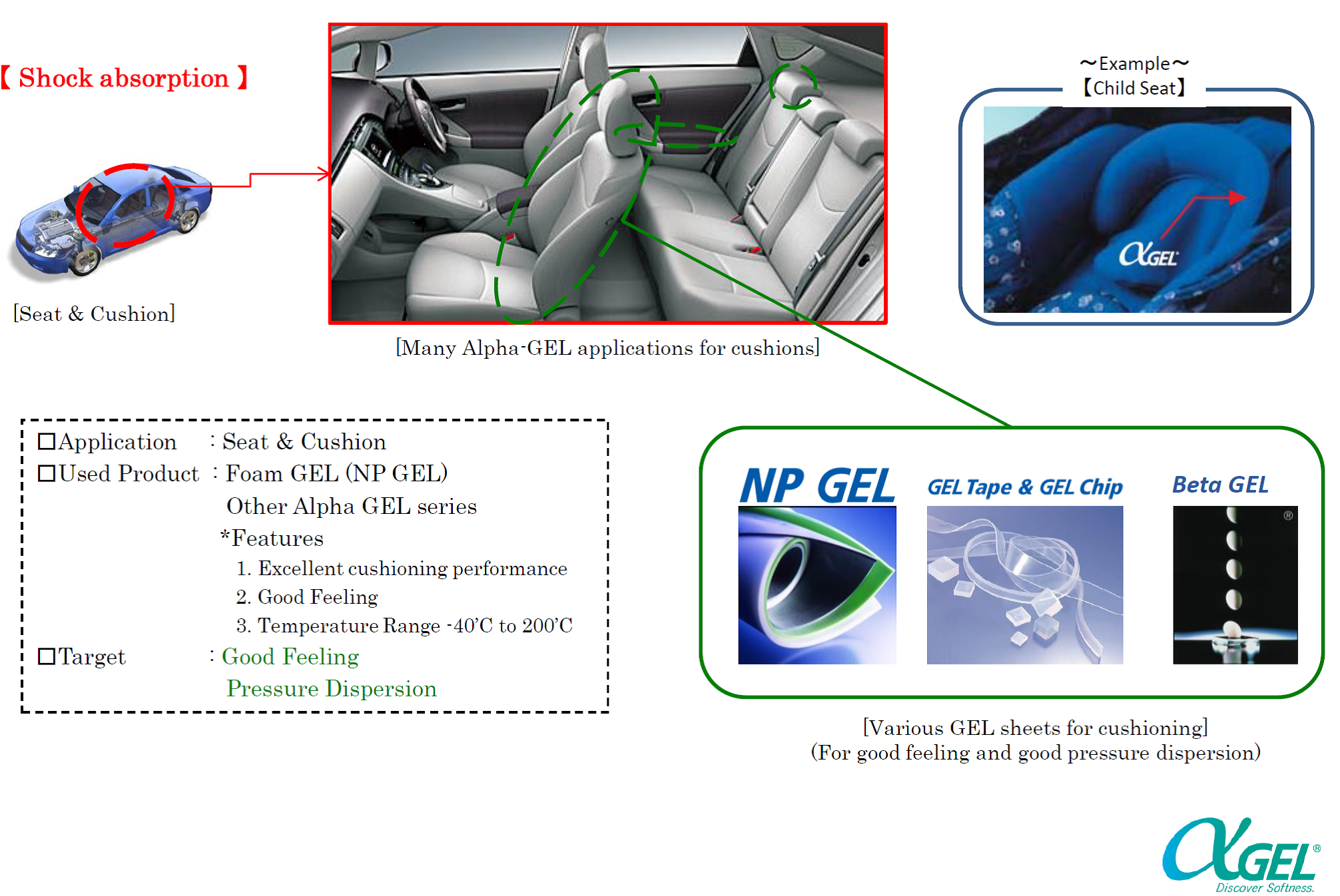

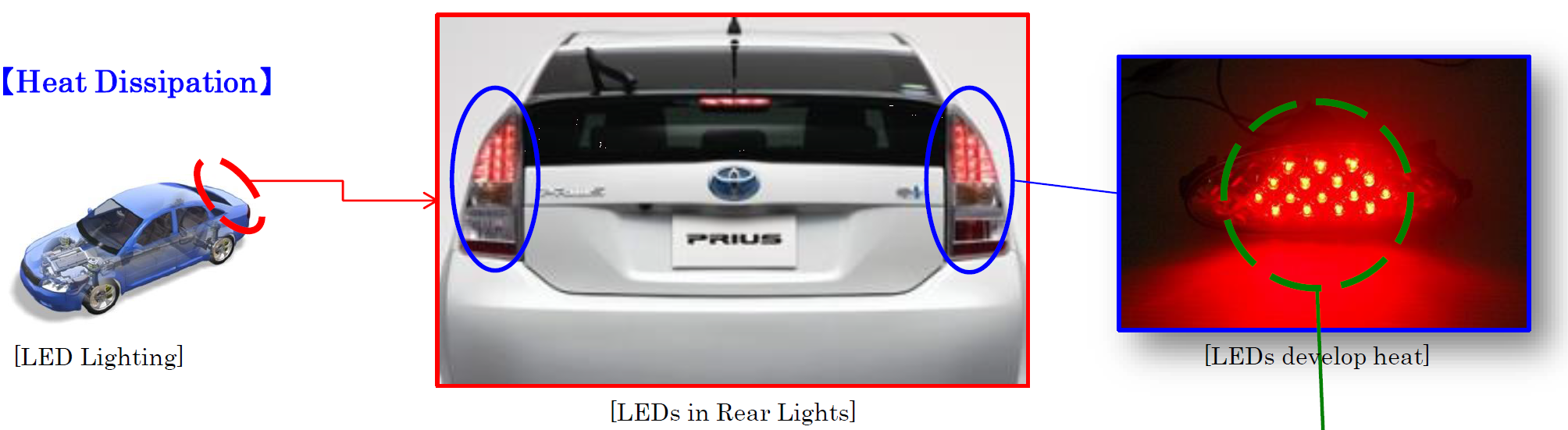

ALPHA-GEL AUTOMOTIVE HMI APPLICATIONS

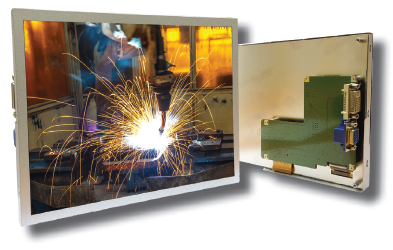

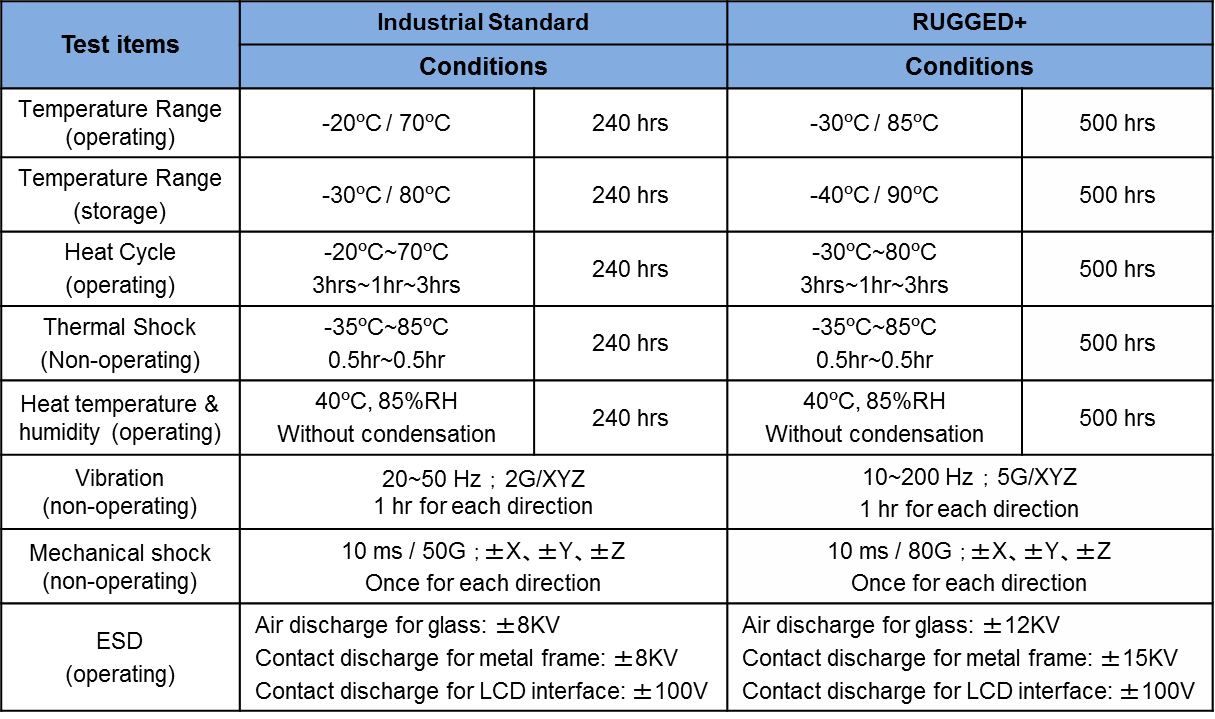

KOE DISPLAY GROUP

• Strong Optical Performance
• Ultra High Brightness up to 1500 cd/m2
• Anti-Reflective & Optical Bonding Available
• Premium Outdoor Readability
• UWVA (IPS-Like) Available (80/80/80/80)

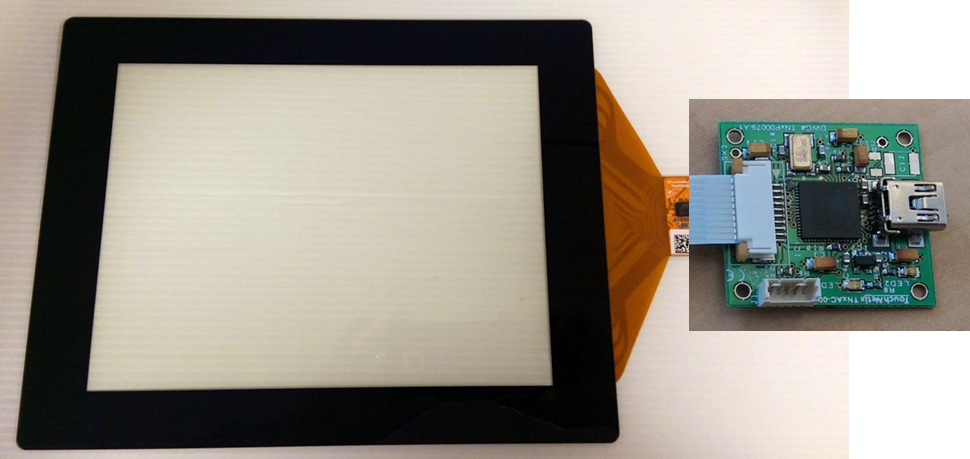

TOUCHNETIX CAPACITIVE TOUCH 10” ASSEMBLY

1. Up to 12-bit XY multi-touch reporting
2. Supports up to 10 simultaneous touches
3. Reporting rate typically 80 to 100Hz depending on configuration.
4. 2 mm chemically strengthened glass front lens
5. Sensor design allows operation with a wide range of 10.4” displays.
6. Meets EMC performance standards, especially for conducted immunity
7. Viewing area is diagonal 4:3, tailored to fit most 10.4” TFT LCD panels.
8. I2C or USB communication interface
9. Active FPC tail connects to host via low cost 10 way 1mm pitch ZIF connector.
10. TouchNetix’ proprietary TNx TouchHub tuning software for Windows™

For more information go to www.TouchNetix.com

FUTABA

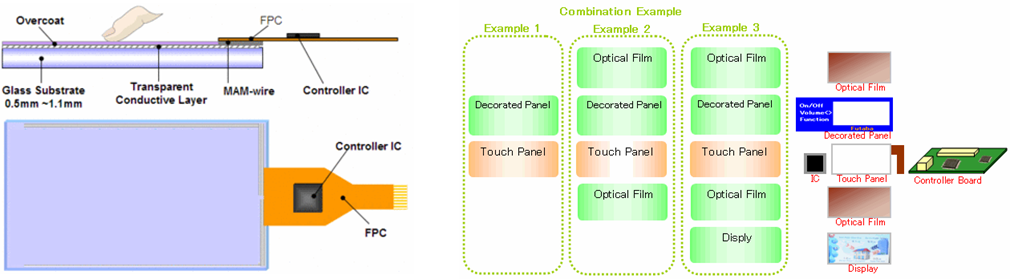

A single, thin glass is used as the substrate that has X and Y electrodes on a surface to detect the touched location. The X and Y signals are detected by the Controller IC connected to a FPC.

・Capacitive, feather touch feeling

・Multi-touch and gesture input capability

(Zoom up/down, Page feed, Tapping)

・Currently up to 12″ diagonal screen size

・90% transparency (without cover layer)

・Thin and light weight with a single glass structure

・Single IC controller

・COF mounting is available for the Controller IC

For more information contact www.futaba.com

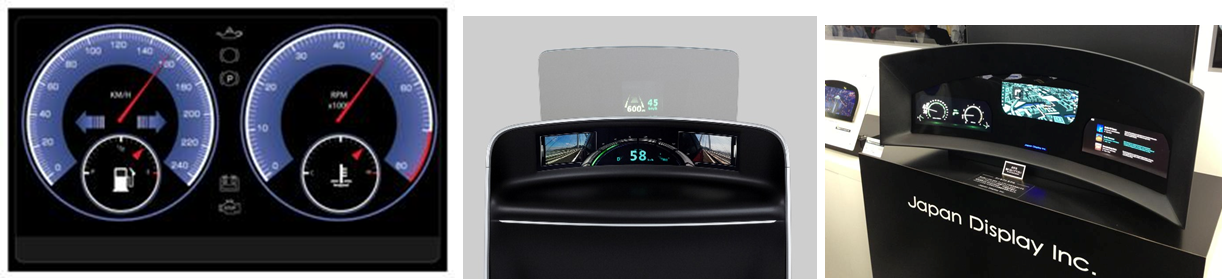

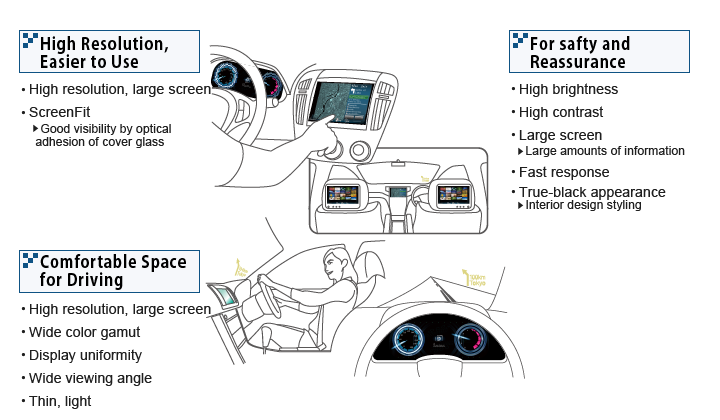

J DISPLAY – OLED / CURVED DISPLAYS

JDI aims at ultra-high resolution and high picture quality by using an ultra-high resolution LTPS base substrate, and a white OLED and color filter that add a White (W) sub-pixel which contributes to high luminance using a Red/Green/Blue/White (RGBW) pixel format.

For more information go to http://www.j-display.com/english/

 CRYSTAL DISPLAY SYSTEMS

TLED Glass offers transparent solutions designed unique rear seat opportunities. The display is bright enough to be seen from a distance even in direct sunlight.

In addition they also design Transparent LCD’s.

For more information go to http://crystal-display.com/products/transparent-lcd/
