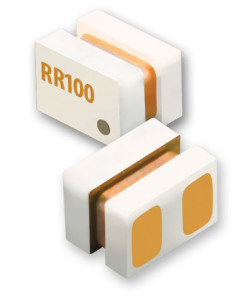

Suited to the needs of Medical, Industrial, Automotive, and other applications where small size, zero power operation, and hot switching 269capabilities are required, the RedRock™ MEMS-Based Reed Sensor is a single-pole, single throw (SPST) device with normally open ruthenium contacts. The sensor may be actuated by an electromagnet, a permanent magnet, or a combination of both.

  1. RR100 Series Features:

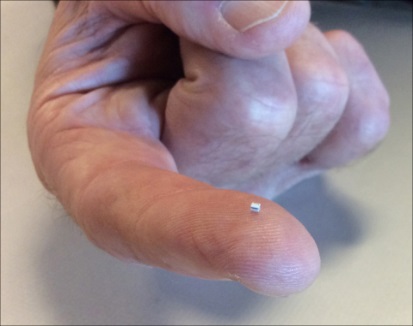

  2. 1.11mm2 Footprint – World’s Smallest Reed Switch
  3. Highly Directional Magnetic Sensitivity270
  4. Hot Switchable
  5. 750 G Shock Resistance
  6. Wide Operating Temperature Range
  7. Hermetically Sealed
  8. Ideal for SMD Pick and Place
  9. Tape and Reel Packaging RoHS Compliant

 268

 For Further Information click to: 271
