Deliverables:

  • Cost effective design
  •  Custom driving algorithm
  •  TFT timing control integrated into MCU

 92

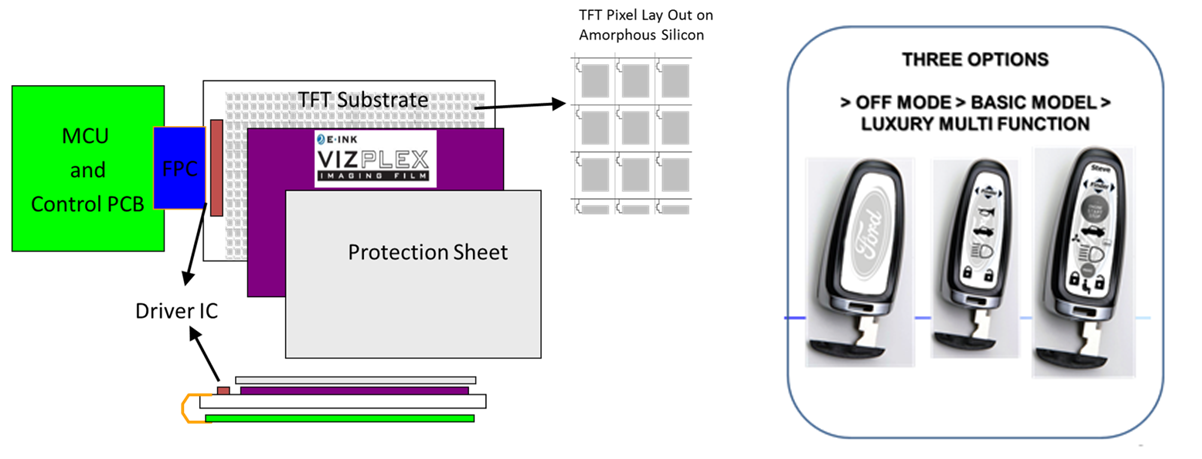

Driving Board Configuration

93

SD-EPD ® Configuration & Benefits:

95

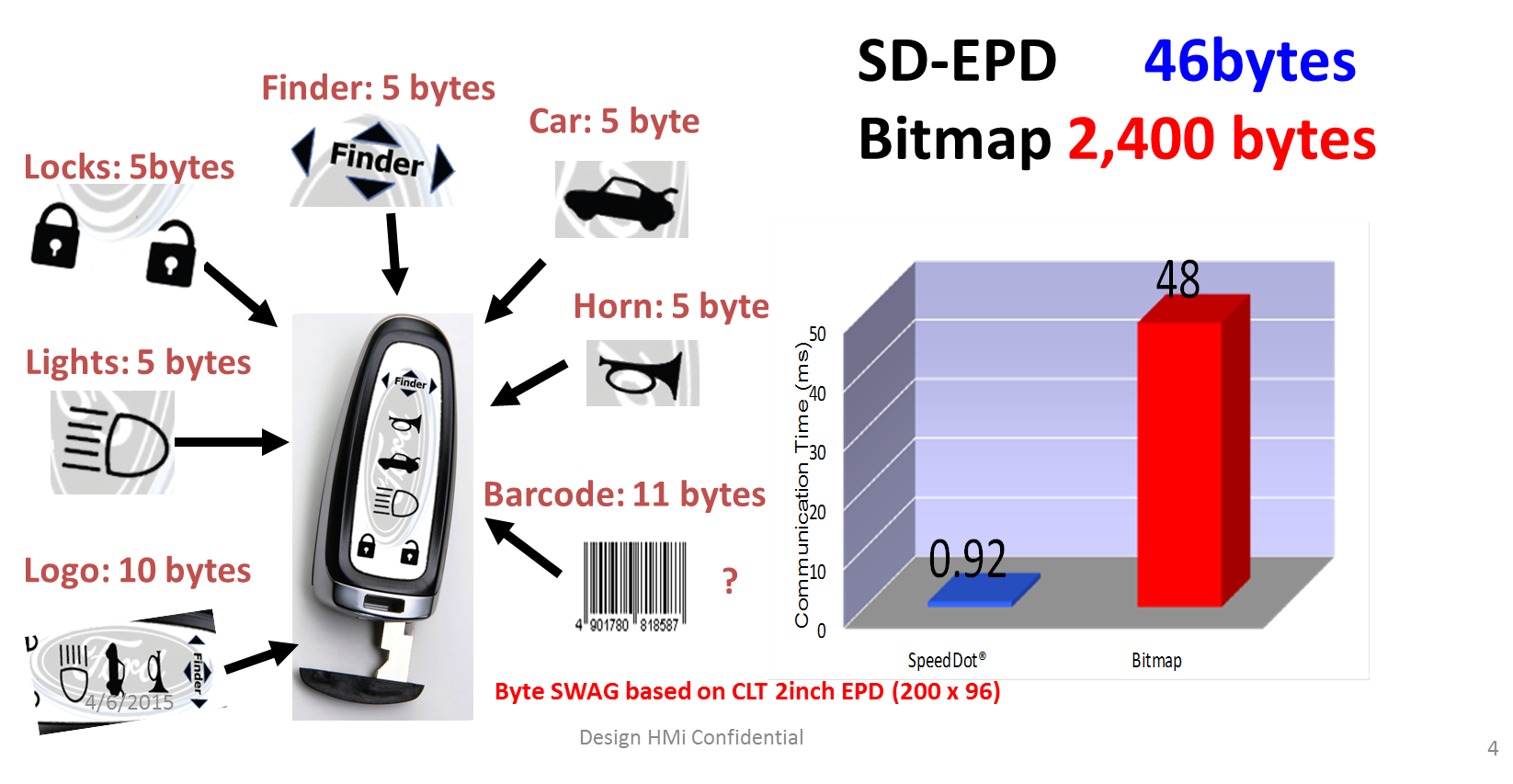

  1. Minimize Wireless Bandwidth & Data Refresh Time
  2. Power Consumption Advantages
  3.  5 Years Operation Simulation
  4.  CR2032 Battery Applied
  5.  2-inch Displays with Data Update Six Times/day
  6. Simulation Disregard the Wireless Communication Power Consumption

96

For more information contact:

  1. Design HMI LLC:        designhmi@gmail.com
  2. Chilin:                          scott.soong@tqtechnology.com
