Seat 3D Lighting Solution

• Design Intent: Luxury Car Seat Lighting.
• Technology Solution: Integrate thin light guide with imbedded PCBA with ultrasonic welding.

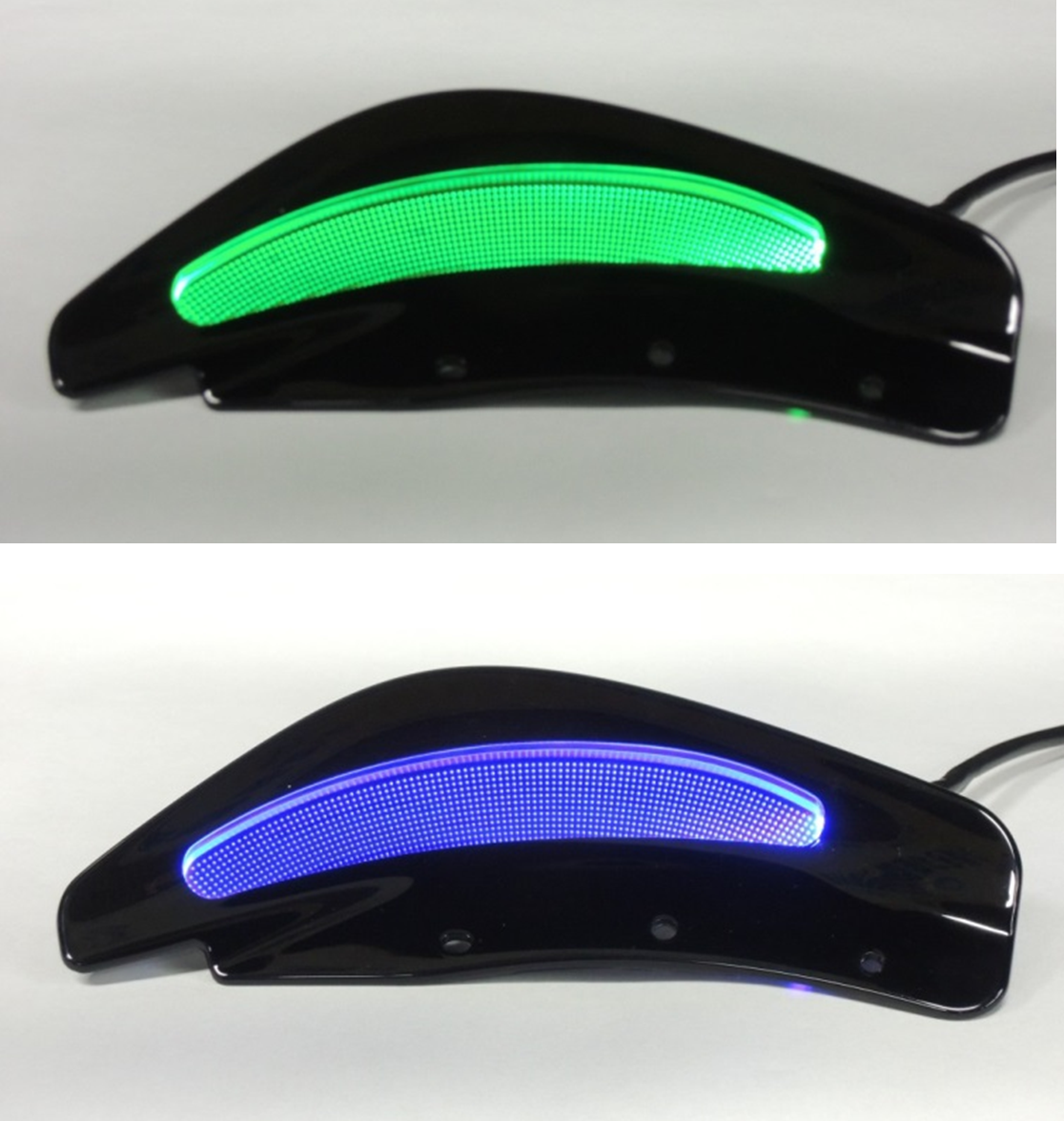

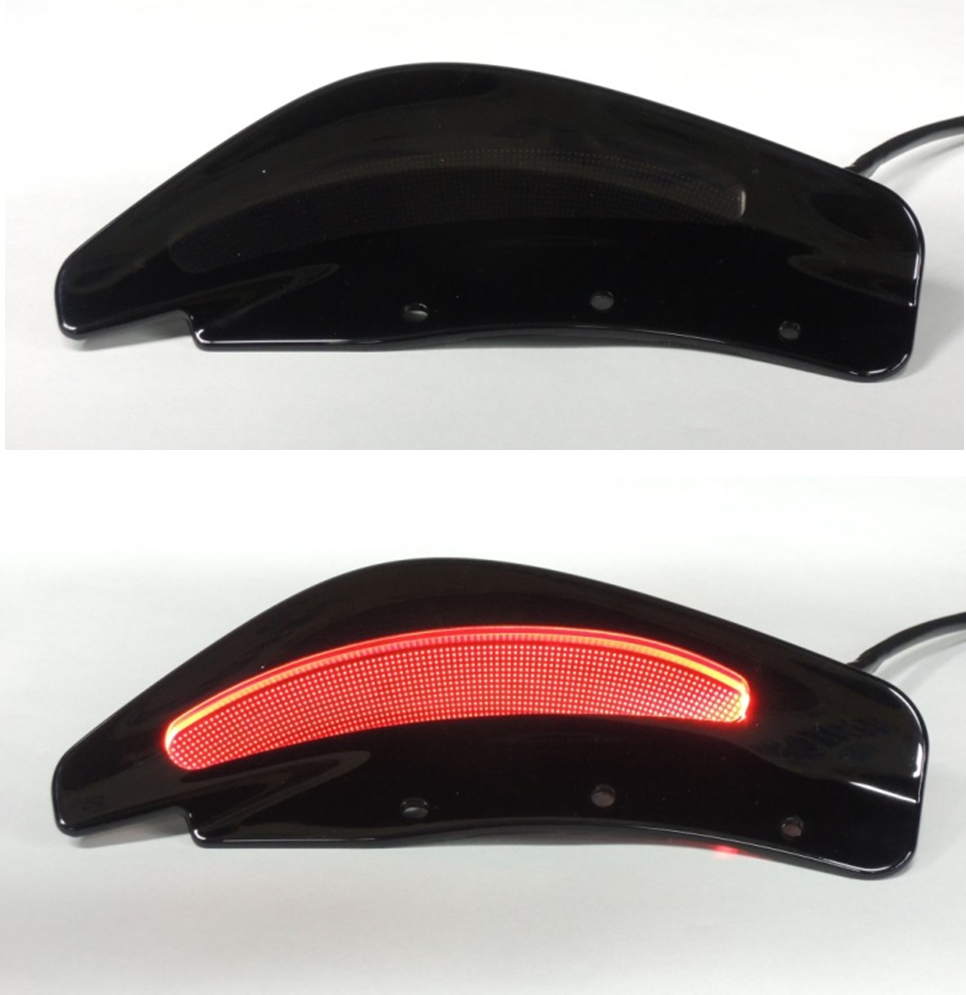

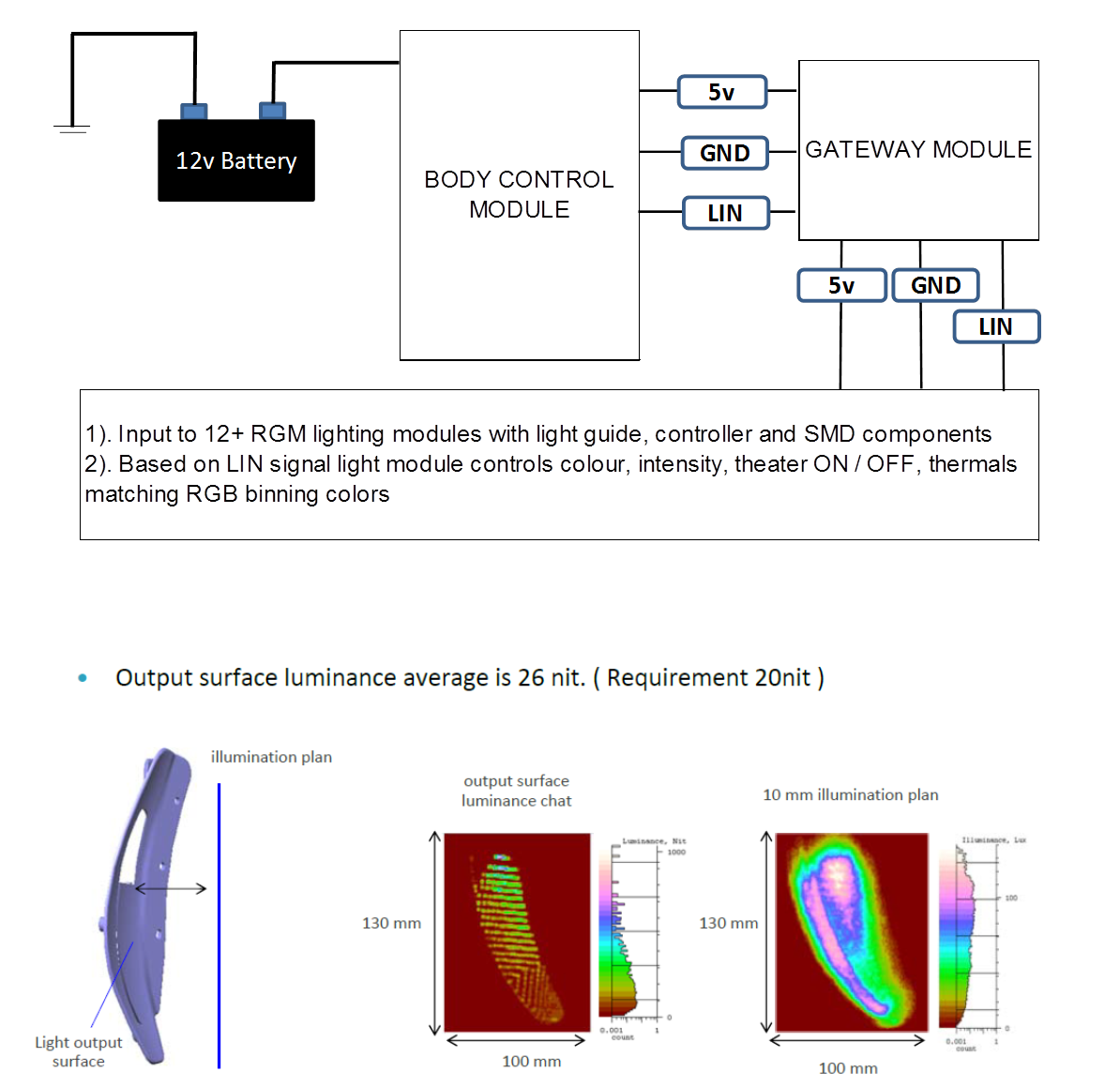

• Basic Concept: Dead font when not lit and Theater On in RGB with color selection. ON / OFF based on LIN signal from system. The Theater ON / OFF time is 2 secs and assumed full ON time of 15 secs.

Prototype Design

______________________________________________________________________________________________________

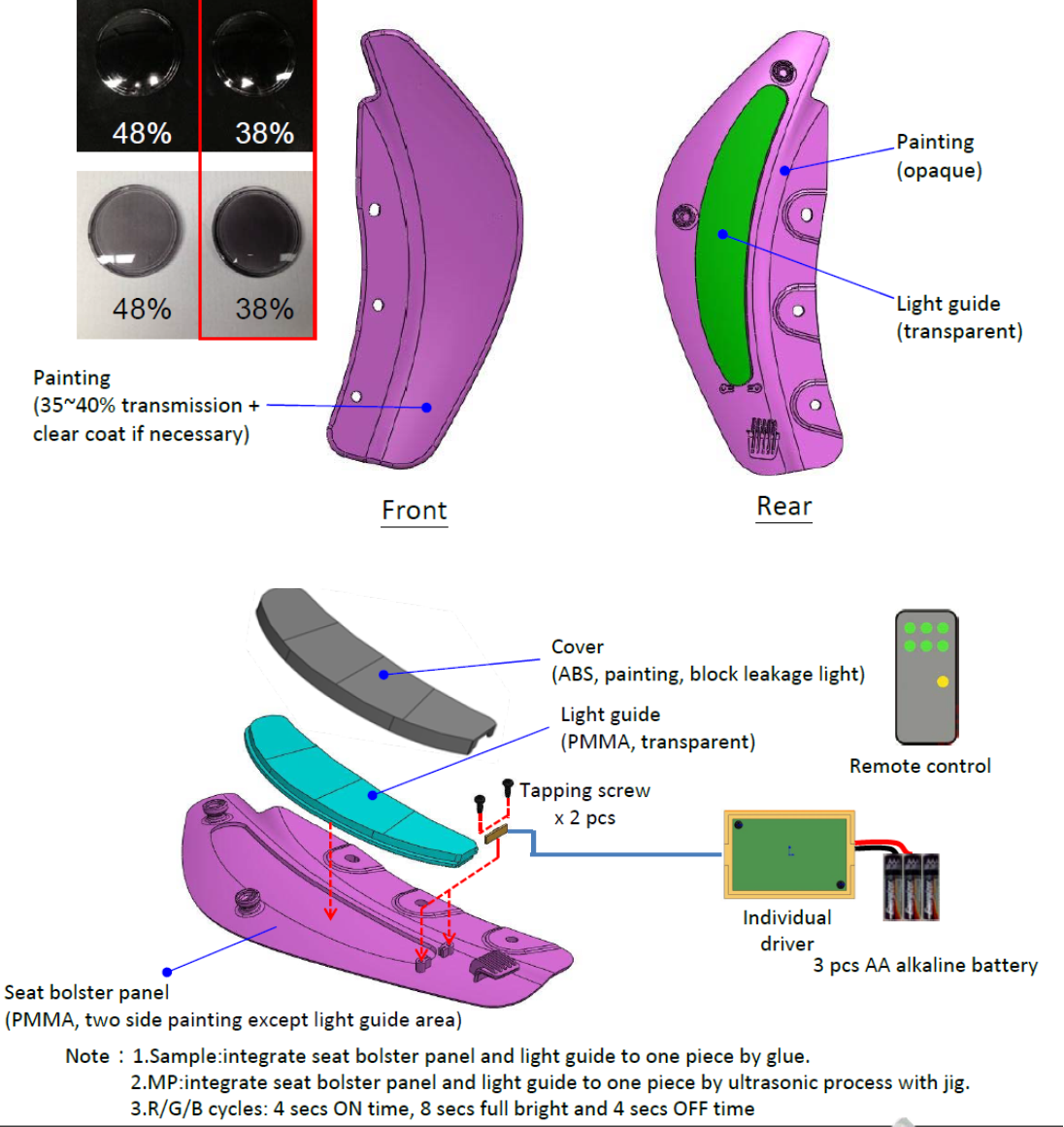

Design & Exploded View:

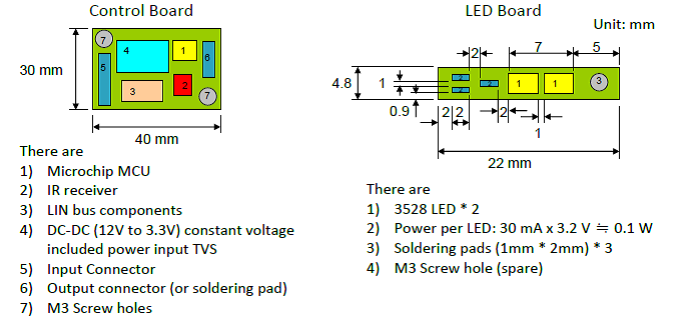

Circuit Board:

_____________________________________________________________________________________________________

Production Lighting PCBA Board Dimensions and Bill of Materials
The PCBA design is complete with Micro, LIN transceiver, voltage regulator, connector, LED’s resistors and diodes.



Lighting Intensity: Target is to be more than 20 Nit but less than 60 Nit.
