Bend Sensor® Technology

  • The Bend Sensor is a plastic film coated with a carbon/polymer ink which bonds extremely well to the substrate material.
  • During processing, many micro-cracks are intentionally formed in the ink.
  • The ink maintains its integrity in shape, and continues to have a very high bond to the substrate material.
  • The cracks open as the Bend Sensor is deflected, and the resistance increases.
  • Electronics attached to the sensor measure the amount of deflection by monitoring the change in resistance

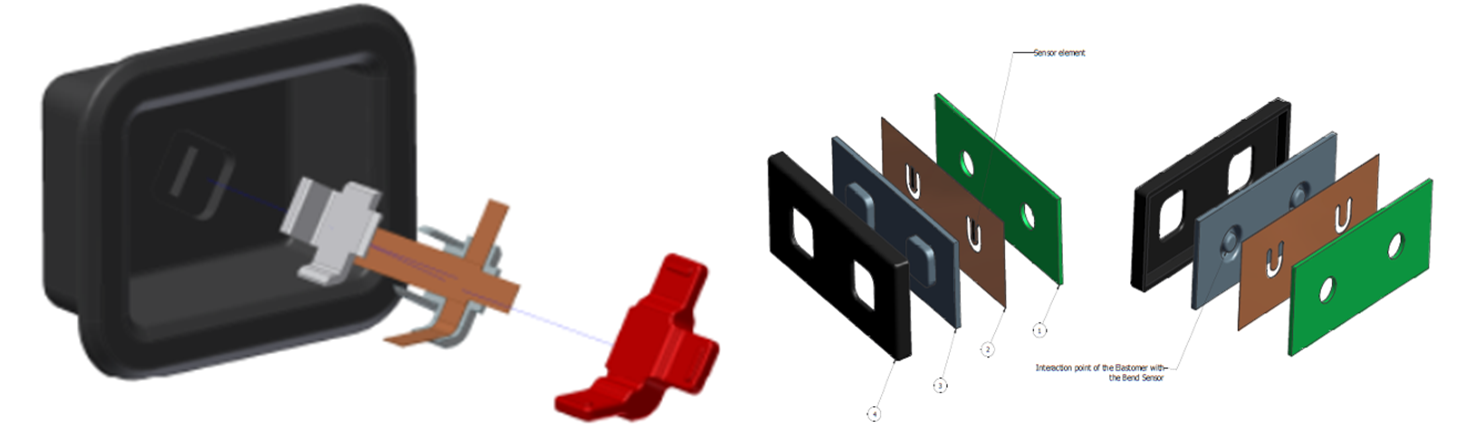

Water resistant Low Cost Seat Switch http://www.flexpoint.com/ or designhmi@gmail.com
