• Eliminate the need for large masking gap in bezel rim.33
  • Save time and effort in masking process.
  • 2 or 3 piece design concept.
  • Smaller less complex injection mold

Design Recommendations:

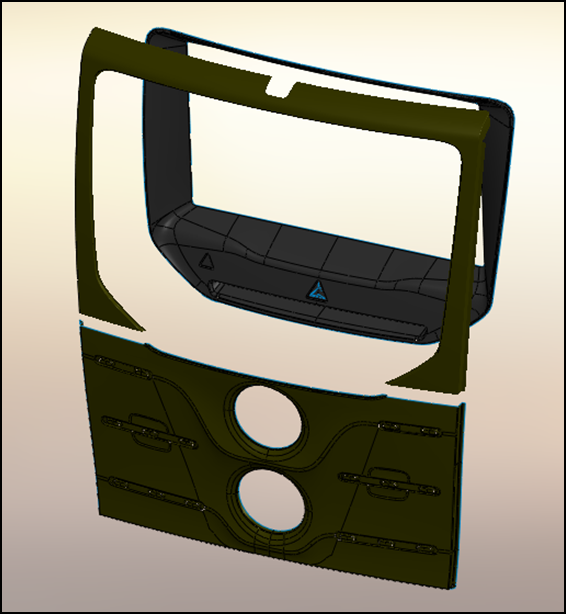

  1. Separate into 3 pieces: a two-piece housing and the bezel
  2. Weld rib for bezel to be on housing portion
  3. Weld rib for 2 piece housing as shown
  4. Weld ribs to be .3mm tall.

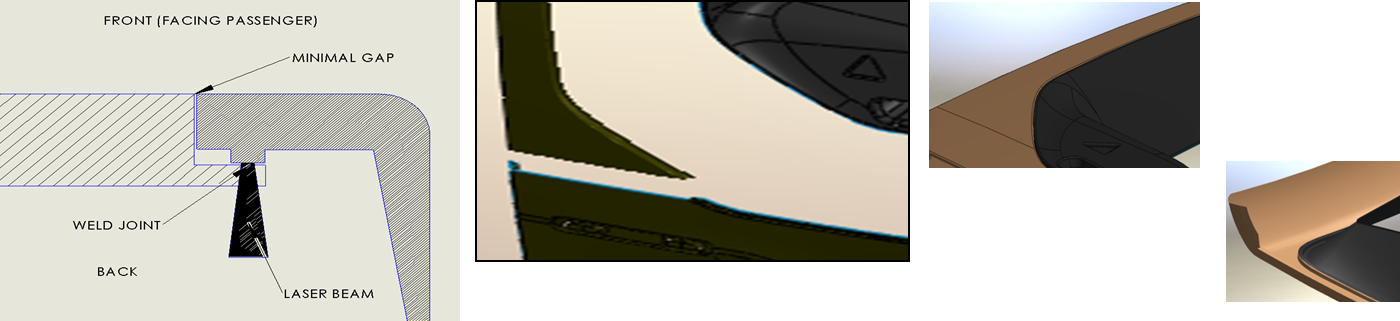

  5. Laser weld from back side as shown
  6. Paint will hide seam

LPKF Laser Welding Electronic Finish Panel – 50% Cost Reduction http://www.lpkf.com/ or designhmi@gmail.com
