“LED and lighting professionals attended The LED Show and Strategies in Light in February gained the tools they need to build business and to work more efficiently. Together, these events presented 7 pre-conference workshops, an investor forum, coordinated networking opportunities, 22 conference sessions in 4 tracks including, the all-new Smart Lighting track, an exhibition featuring 300 product and service providers, and the first-ever Sapphire Awards Gala presented by LEDs magazine all under one roof in Las Vegas.”

Strategies in Light 2015

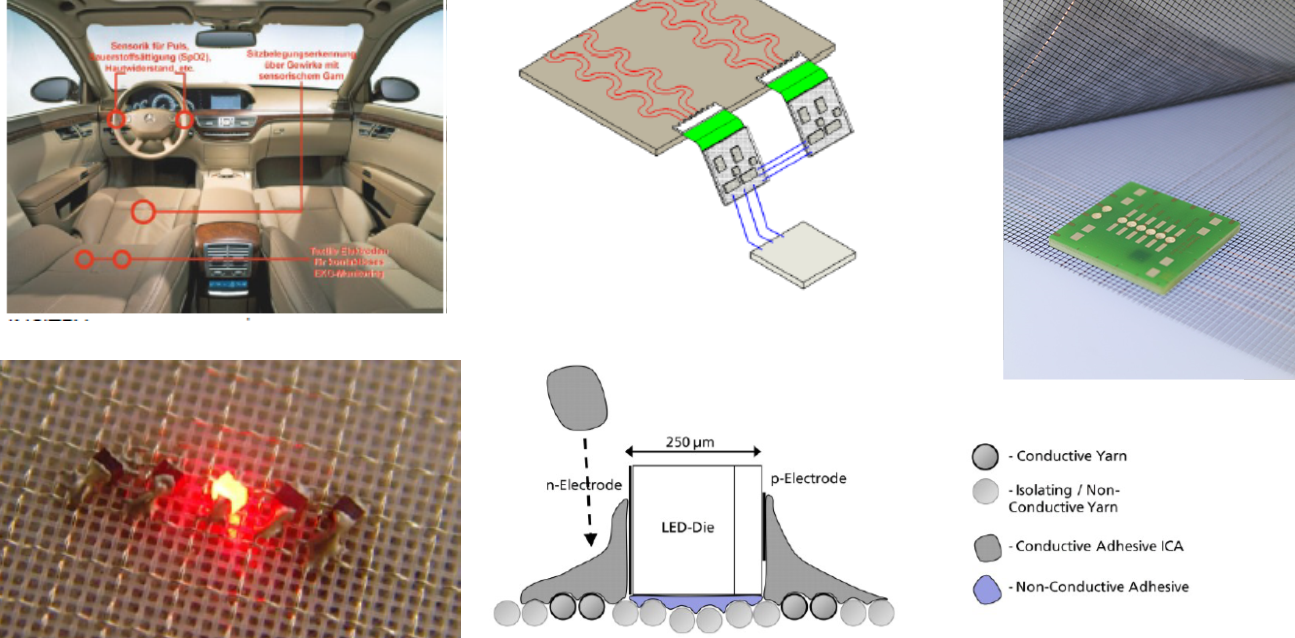

Integrating electronic components, textiles can be enhanced with many different functions such as sensors and lighting.

Applications are safety applications, integrated sensors for alarm systems , lighting and displays on and in fabric, wireless sensor nodes, condition monitoring, occupancy sensors for vehicle seats and others.

Refer: http://www.izm.fraunhofer.de/en.html

_______________________________________________________________________________

Nano Imprinting Technology

New Nano-Imprinted Thin Films Technology creates backlighting and front lighting capabilities for the full range of Electronics.  Can vary the layout of Micro-Lenses to achieve higher efficiency and uniformity than can be achieved by standard Light Guide films and plates.   This allows electronic devices to be uniformly and efficiently lit with very thin profile lighting sources.

Refer: http://www.lightguide.planetechn.com/Light_Guide_Technology.html

_______________________________________________________________________________

LED Light Engines Deliver Up To 4000 lm

High power white LED light engines for OEM fiber-optic illumination with Light Engines couple directly to liquid light guides and fiber bundles with no additional optics, delivering up to 4000 lumens into the light guide.

• More far field angles available in our choice of molded and glass optics
•  Two board configurations for more die combinations
•     Resistor for photo sensor options
•     Convenient and hardy 8 pin connectors
•     Robust PC board for higher drive conditions
•     More thermal management choices
•     Uniform near and far fields
•     Continuous high current or pulsed operation
•     470nm thru Near IR paired with molded optics*
•     410nm thru Near-IR & white (5300k +/- 300) paired with glass optics*

Refer:  http://www.innovationsinoptics.com

_______________________________________________________________________________

Exodus Innovations Light Fixtures

• Uses: kitchen cabinets, under sinks, bathroom cabinets, closets, pantries
• Bright White LED Turns On When Cabinet Opens: photocell turns LED light on when cabinet door opens
• Auto/Manual Mode: switch on back of in-cabinet light allows you to change between auto and manual mode
• Auto Shut Off: once activated, the LED light will remain on for 20 seconds before turning off
• On/Off Button: glow-in-the-dark button turns fixture on/off in manual mode
• Pivoting Light: rotary dial pivots LED light, allowing you to direct the light where it’s needed
• White Finish
• Dimensions: 1.5in(H) x 4.0in(W) x 8.5in(L)

LIGHT SOURCE

• LED: high quality warm white LED made by Nichia
• Brightness: approximately 30 lumens

ELECTRICAL FEATURES

• Battery Operated: uses 4 alkaline C batteries (not included)
• Good Battery Life: expected battery life of up to 1 year

View: www.pegasuslighting.com/led-battery-operated-in-cabinet-light.html

_______________________________________________________________________________

This image features TEKA ILLUMINATION Down Light Concept that though designed for home lighting could be amender to automotive application like running board lighting.

Its translucent white acrylic diffuser has been shielded on three sides making this a Dark Sky compliant luminaire with the intention to be used as a down light in the horizontal position.

View more at TEKA ILLUMINATION
This image features TEKA ILLUMINATION Down Light Concept that though designed for home lighting could be amender to automotive application like running board lighting.

Its translucent white acrylic diffuser has been shielded on three sides making this a Dark Sky compliant luminaire with the intention to be used as a down light in the horizontal position.

View more at TEKA ILLUMINATION http://www.tekaillumination.com/products.html

BAYER: Makrolon® DX-NR polycarbonate sheet provides high optical performance, balancing light diffusion and transmission. Co-extruded, UV-resistance technology, makes it ideal for exterior applications. OEMs using Makrolon® DX-NR polycarbonate sheet for lenses are able to achieve enhanced aesthetics thanks to the material’s non-glossy and non-reflective appearance.

_______________________________________________________________________________

Global Lighting Technologies developed edge-lit square panel and a circular product lit from the inner circumference. It is intended as an alternative to similar-sized OLED panels with similar diffused-light output albeit at a much lower cost.

One other category of optic that can come into play in advance luminaire or lamp designs is a light guide that can be lit from the edge with LEDs while optical-extraction features in the guide direct the light out the surface of the optic

GLT said its offering can be delivered in lengths to 24 in. or more and in thicknesses ranging from 0.25–4 mm. The company will target automotive, consumer electronics, and white-goods lighting applications with the flexible optic. The more typical rigid guides are being utilized in applications where the optic appears transparent when off but delivers uniform diffuse light when powered on.

Refer: http://glthome.com

_______________________________________________________________________________

WhiteOptics® high diffuse high reflectance Films, Metals and Advanced Coatings allow unique design approaches in all lighting applications.

• Maximize light reflection, output and brightness.
• Use fewer LEDs and/or lower wattage LEDs.
• Reduced system temperature.
• Improve uniformity of light distribution, eliminating “dots” and glare for better overall optical aesthetics.
• WhiteOptics® high diffuse reflections recycle the light backscattered off of lenses and cavity walls.
• Backplane reflector in edge-lit lighting.

View: http://whiteoptics.com/applications-for-oems/

_______________________________________________________________________________

The Visilink solution uses electromagnetic waves (or, in this case, photons) to transmit signals over the open air to receivers. The signals are modulated upon transmission and then demodulated at the receiver for use by the end user. The unique characteristic of the Visilink technology is that the transmission media is the part of electromagnetic spectrum which falls into the visible range for the human eye.
For general network conductivity, Visilink uses quasi-white LEDs as transmitters. LED’s, unlike fluorescent and incandescent lights, can be modulated in such a way that the changing power output is not visible to the human eye. LED’s operate on the principal of electroluminescence. A LED, when forward biased with the proper voltage, will force electrons and holes to recombine and release photons of various wavelengths. Since these are semiconductor devices, the rate at which the power output can be modulated is very high.

View: http://visilink.com/technology/

_______________________________________________________________________________

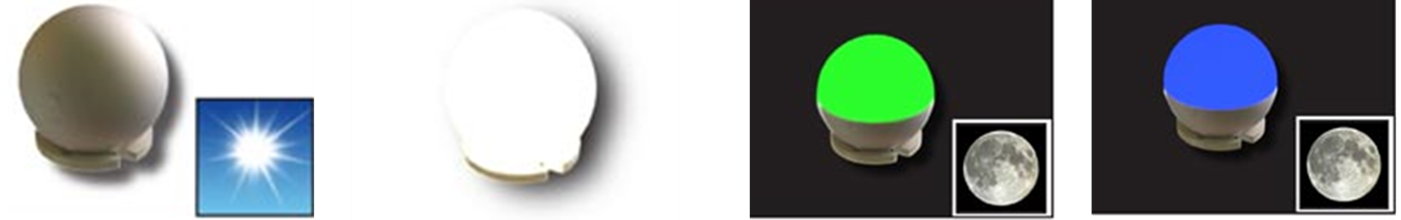

LUNA OPTICAL DIFFUSERS apply and implement Photoluminescence Technology based on Aluminates, inorganic materials for uniform soft light to glow on in the dark even when the lighting fixture hosting LUNA is switched off.

Like all photo luminescent objects, LUNA OPTICAL DIFFUSERS are “charged” and can be “recharged” by simple exposure to the natural or artificial light for few minutes. Specifically, as to LUNA OPTICAL DIFFUSERS, charging the photo luminescent crystals obviously occurs even and especially when the LED is ON. Then, when the LED is OFF, LUNA shines in the dark for several hours. The photo luminescent glowing effect comes in two colors: GREEN and BLUE.

Refer: http://www.khatod.com/Khatod/Page.aspx?luna_optical_diffusers

_______________________________________________________________________________

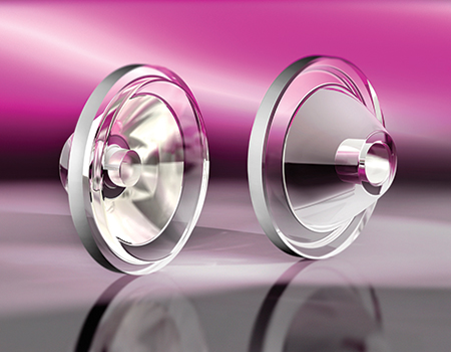

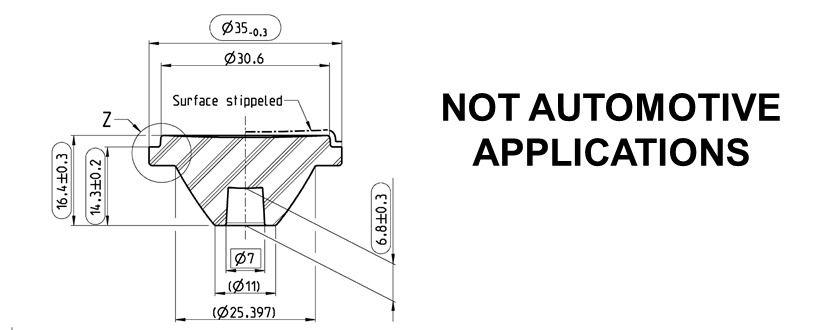

Bern glass TIR lens from Auer Lighting:

Auer Lighting Suprax Glass-based products are better match than alternatives such as PMMA or PC in high-reliability LED applications, especially in difficult environments. The Bern TIR lens is one such optic that is made from the Suprax glass. The lens can withstand temperatures as high as 400°C with no discoloring or degradation of photometric performance. The lens offer 85% transmittance or optical efficiency and delivers a 12° beam pattern. The lens is designed for use with 5×5-mm LEDs in discrete packages.

Refer: www.auer-lighting.com

_______________________________________________________________________________

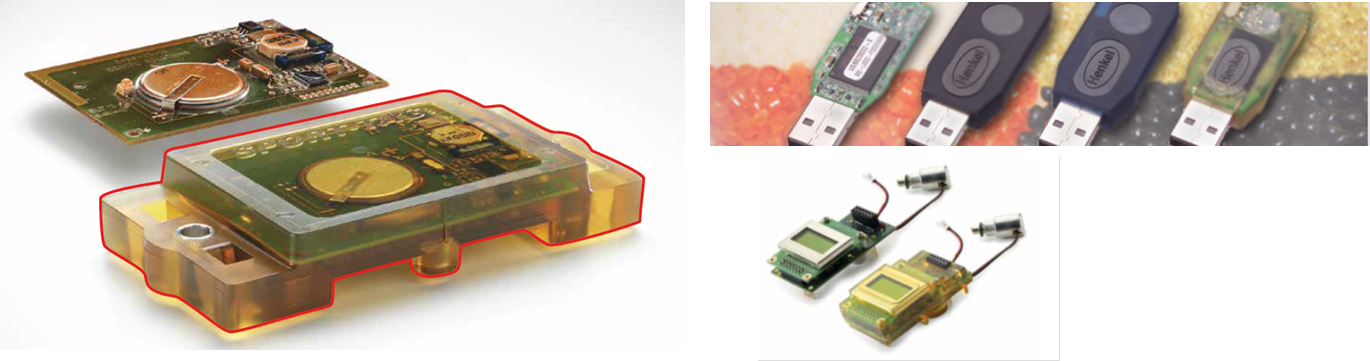

These thermoplastic hot melts use extremely low pressure to encapsulate delicate circuitry. Cycle time is fast and processing temperatures are a modest 130 to 240°C, with in-use temperatures ranging from –40 to +140°C.

Assembled PCBs have to be protected from moisture, mechanical damage or harsh environments – Henkel’s Macromelt injection molding process is low-pressure, even the finest, most delicate circuitry can be encapsulated quickly without damage.

Refer: http://www.henkel-adhesives.com/macromelt-27441.htm
