“Connectors and Electronic Assemblies: Below you will find 7 examples which could be of great help to you when designing your next electronic or electro-mechanical device. Few of them like the formed flex circuit below could help you reduce assembly components and lower profile. Washable connectors and plunger contacts shown below can help product designers and innovators design for reliability and ease of assembly. Both could be ideal for automotive seat applications.”
Flexible Printed Circuit Manufacturing

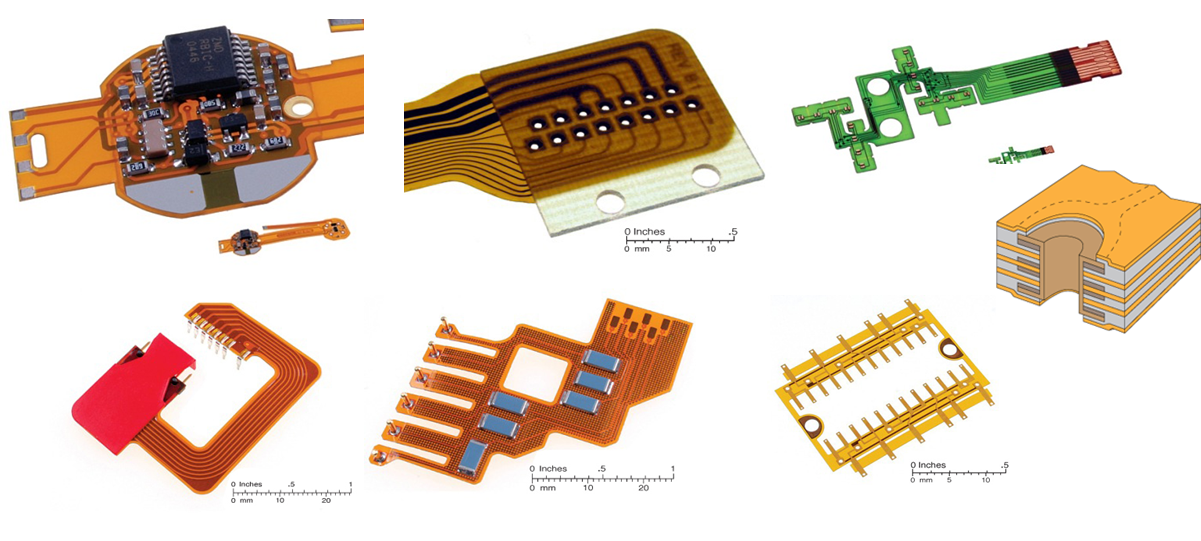

Tech-Etch manufacture flexible printed circuits on polyimide substrates – single and double-sided circuits, as well as multi-layer and flex circuit assemblies.
Trace and space capabilities down to .0015″ in production and Micro-via sizes down to .001″ diameter for high density, 2-layer flex circuits. Selective plating of gold and tin lead enables multiple attachment methods on the same flexible circuit.
Alternate circuit layer materials such as beryllium copper, stainless steel and copper nickel can be used in unique applications. SMT and thru hole assembly services. Package sizes down to 0201 & .4mm pitch.
For more information look at http://www.tech-etch.com/flex/index.html
________________________________________________________________________________________
Solderless Press-Fit Edge-Card Connectors

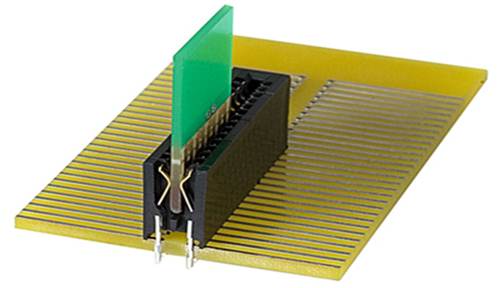

Pin compliant solderless press-fit Edge-card connectors with .100” contact centerline connectors and gold-plated contacts. Press edge-cards feature high-density .100” spacing on 0.062” daughter boards, and support 0.093” (2.36 mm) to 0.125” (3.18 mm) thick motherboards.
Designed with standard phosphor bronze, gold-plated (30 micro-inch) contacts and a current rating of 3 Amp per contact pair and operating temperature range of -65 degrees C to +125 degrees C, and insertion force of 16 ounces per contact pair.
For further information review: http://www.sullinscorp.com/
________________________________________________________________________________________

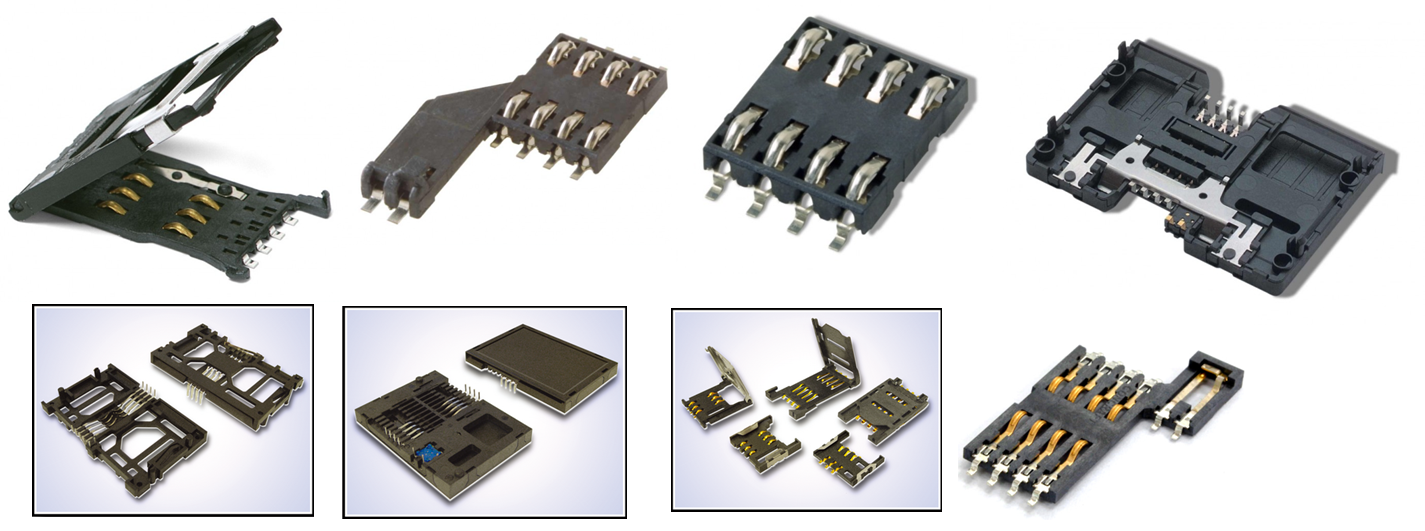

Smart Card Connectors with Card Detection Switch for M2M Applications
Refer for more information:
- http://www.ck-components.com/product-list-page,21096,en.html
- http://www.apolloelectronics.com/en/products_list_3_22.html
- http://www.concraft.com.tw/products_connector/ct/smart_card.html
Ohmatex Launches New Washable Connector

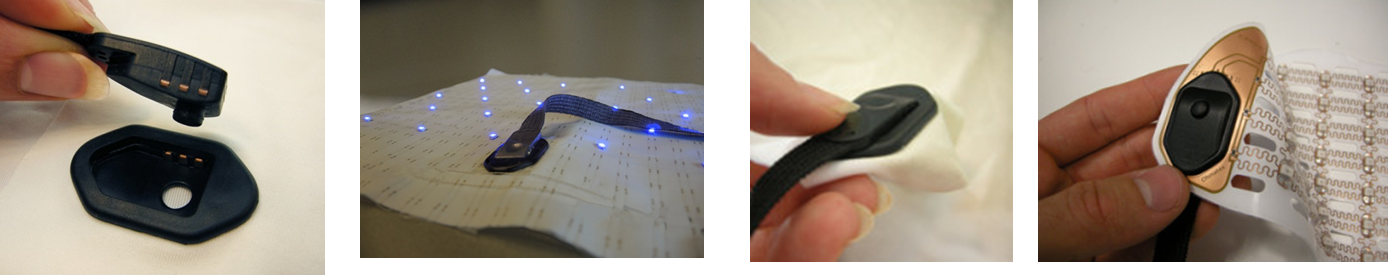

Ohmatex has launched fully washable connector, designed specifically to provide connectivity for smart textile products currently in development. The connector was designed in a way that it can be attached to a textile or thin conductive material.
The connector consists of a male and female part, both fully washable, which snaps easily together to provide a strong electrical connection.
The connector has no mechanical moving parts and can be fixed to a thin fabric or conductive material with minimal physical stress. It has built in strain relief and varying transition zones between the flexible substrates.
The connector applies minimal physical stress to the substrate it is attached to and has built-in strain relief. There are no mechanical moving parts and all materials are known to the clothing industry. The connector can have customized PCBs integrated in the male part to create general programmability.
For more information review http://www.ohmatex.dk/?page_id=101
________________________________________________________________________________________
Strain Relief Bushing & Grommets

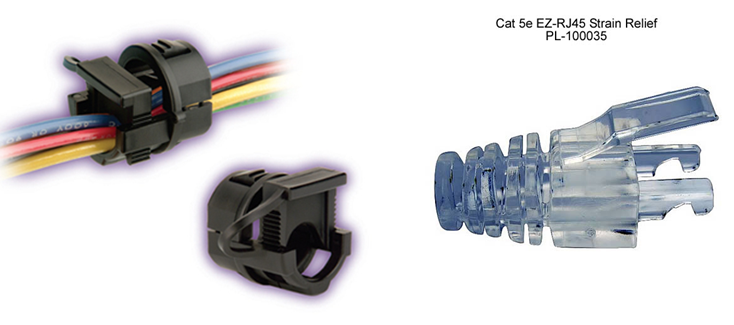

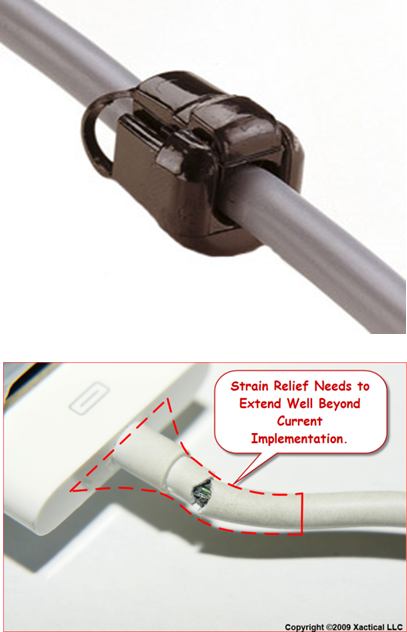

CABAC strain relief bushings are designed to clamp around a power cord and then are inserted into a straight sided panel hole using a special tool. Strain Relief Bushings are suitable for light duty flexible cables.
For more information look up:
http://www.legend.com.au/products/cable-management-and-fixings/strain-relief-bushings/srb6n-4
Heyco® Nylon Removable Snap-In
Ratcheting Strain Reliefs
http://www.heyco.com/Strain_Relief_Bushings/index.cfm
________________________________________________________________________________________
PRECI-DIP Plunger Contacts

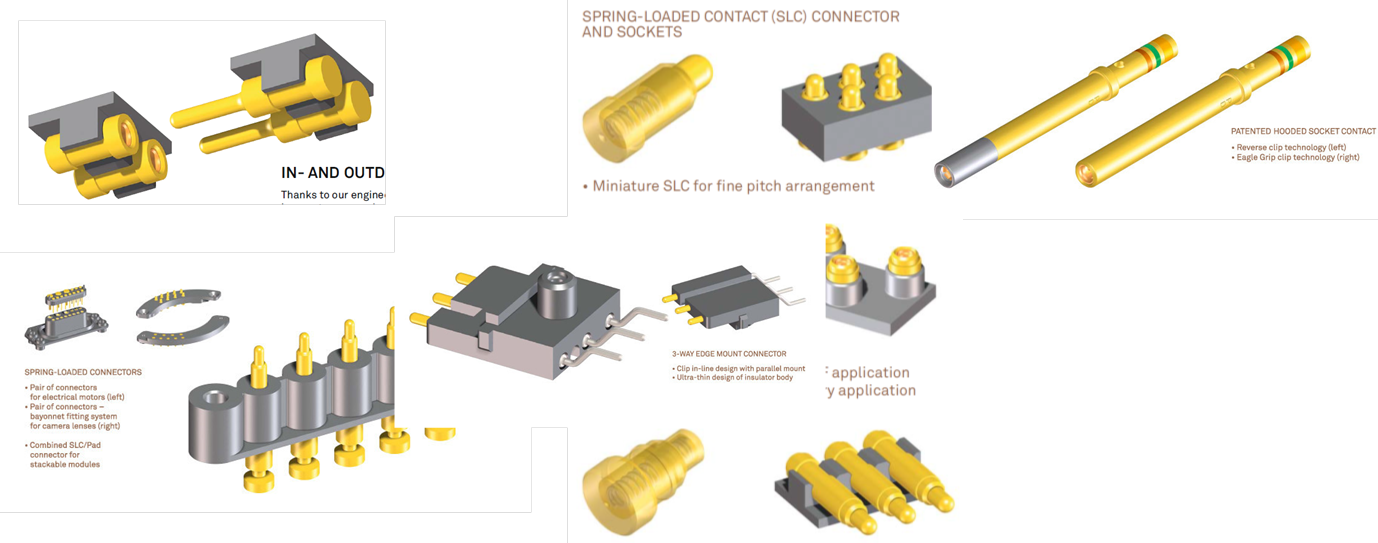

Automotive & LED Lighting: PRECI-DIP technology has imbedded design solutions automotive and medical industries. Their range products can be embedded electronics like a Satnav, advanced features like camera, radar, sensors, PRECI-DIP will have the solution for any needs in the automotive market. In addition product portfolio includes spring-loaded contacts and connectors, board-to –board connectors, special custom-design connectors, high-performances contacts and connectors for heavy duty and harsh environment.
Medical: PRECI-DIP has developed and produced a 100% Beryllium free contact and this technology using advanced materials will be enlarged to all the PRECI-MED products.
Refer: http://www.precidip.com/en/Markets/Preci-Mot.html
________________________________________________________________________________________
Smart Connector Technology

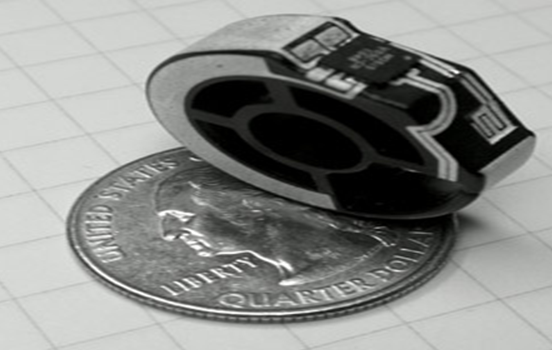

Researchers at Rochester Institute of Technology and PPC Corp. have developed the Smart Connector, a sensor that once installed in the can provide information about equipment damage and pinpoint the exact location through self-diagnosing technologies.
The system monitors the primary failure modes in RF cables. Each sensor-disc contains a unique site identifier, monitors critical conditions and reports the sensor status using a technique called back scatter telemetry. Each smart connector is capable of activating or powering-down its energy capacity by extracting miniscule amounts of radio frequency energy from the coaxial cables.
Refer: http://www.rit.edu/news/story.php?id=48801
