CIRCUIT IN PLASTIC TECHNOLOGY





The Process

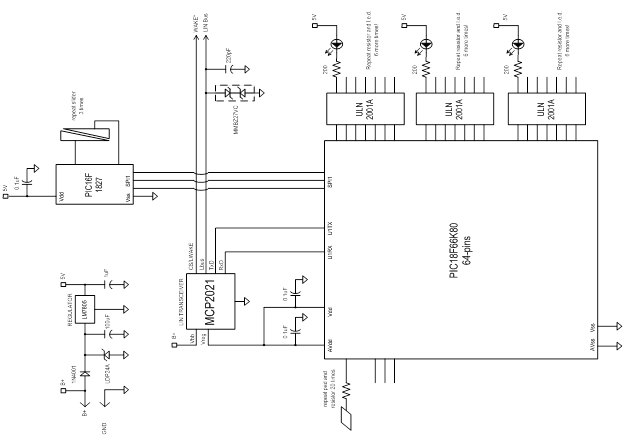

  • Take an existing circuit design
  • Machine/mould indentation in enclosure/subtrate
  • Place components in indentations
  • Screen print tracks on cover sheet

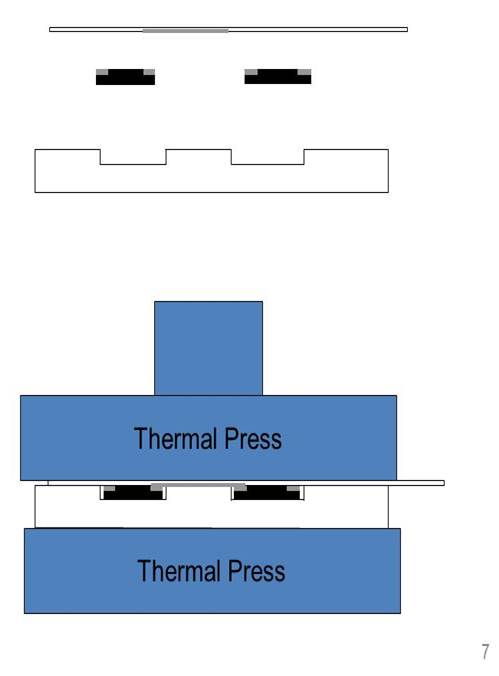

  • Align and hot-emboss





 _____________________________________________________________________________________________________________________

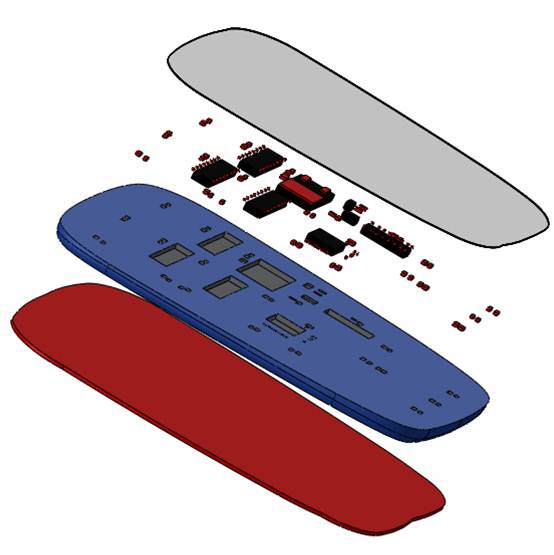

 Assembly



  • Screen printed cover sheet
  • Inverted Integrated circuits
  • Embossed subtrate
  • Assemby



RESULT:

  • Circuit and enclosure are formed simultaneously
  • (The enclosure is the “circuit board”)
  • Circuit sealed from the environment
  • RoHS compliant
  • No solder step
