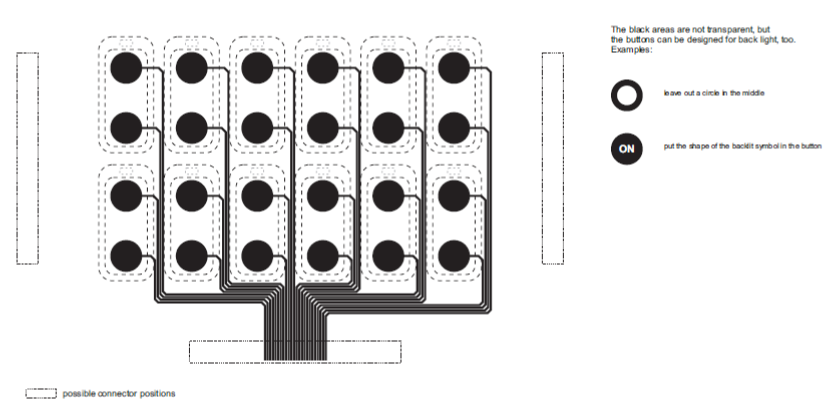

Class a non -apacitive touch input technology

DHMI2

______________________________________________________________________________________________________________________________________________________

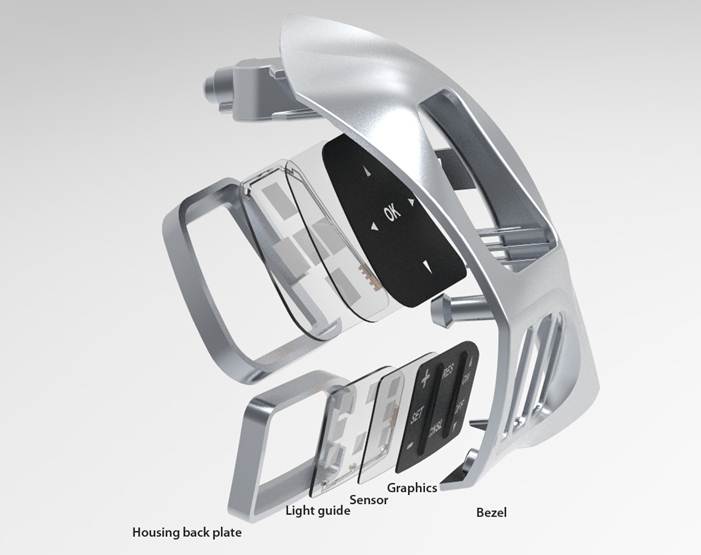

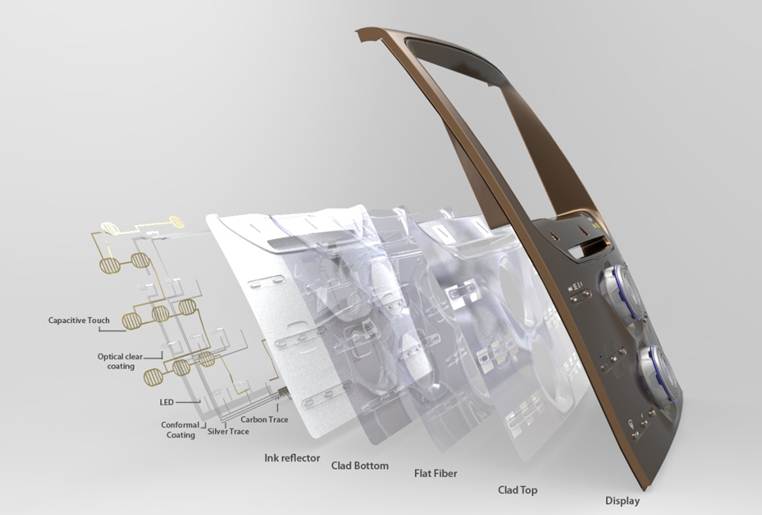

Three dimensional backlit touch panel

  • Three dimensional touch input device
  • Three Dimensional Lighted panel with imbedded LED’s and circuits in light guide
  • SMD and other components imbedded in plastic baseDHMI 3
  • Class A molded in applique

DHMI 4

______________________________________________________________________________________________________________________________________________________

Circuit diagram

DHMI 5
