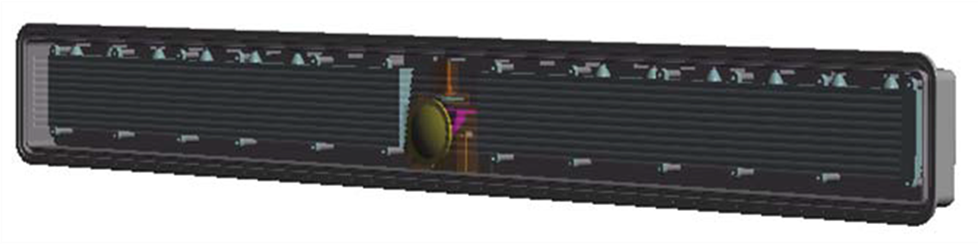

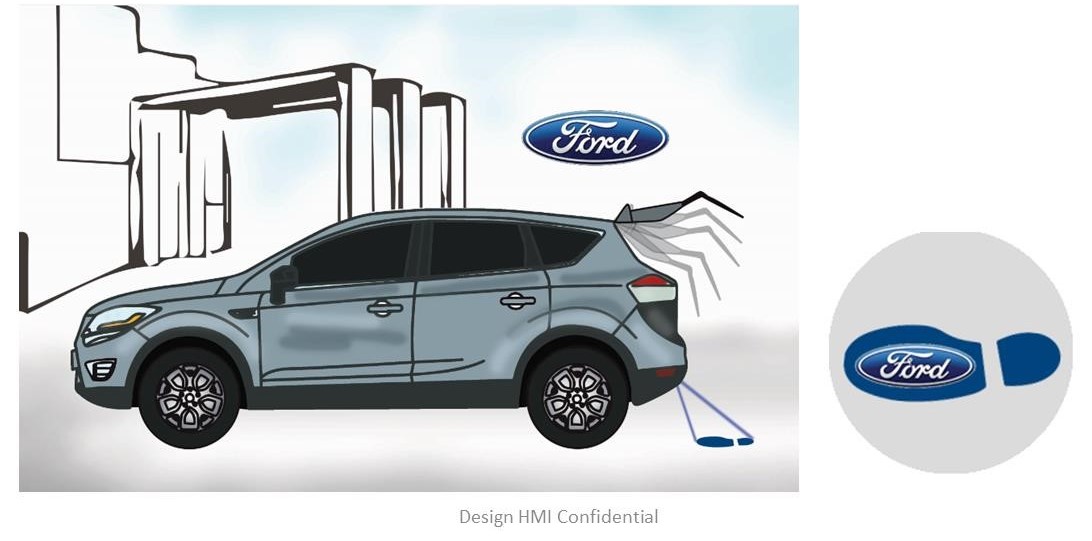

Design Concept Rendering for projected puddle light and monogram located in the door rocket.
Basic requirement is to light up monogram or welcome sequence in addition to providing functional puddle light for ingress and egress. Egress is designed to avoid stepping into puddle on days like this winter.
Design could be wireless with battery and controller lighting up the graphics upon signal from door security module or directly wired with ON / OFF controlled by door module.

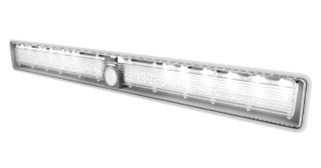

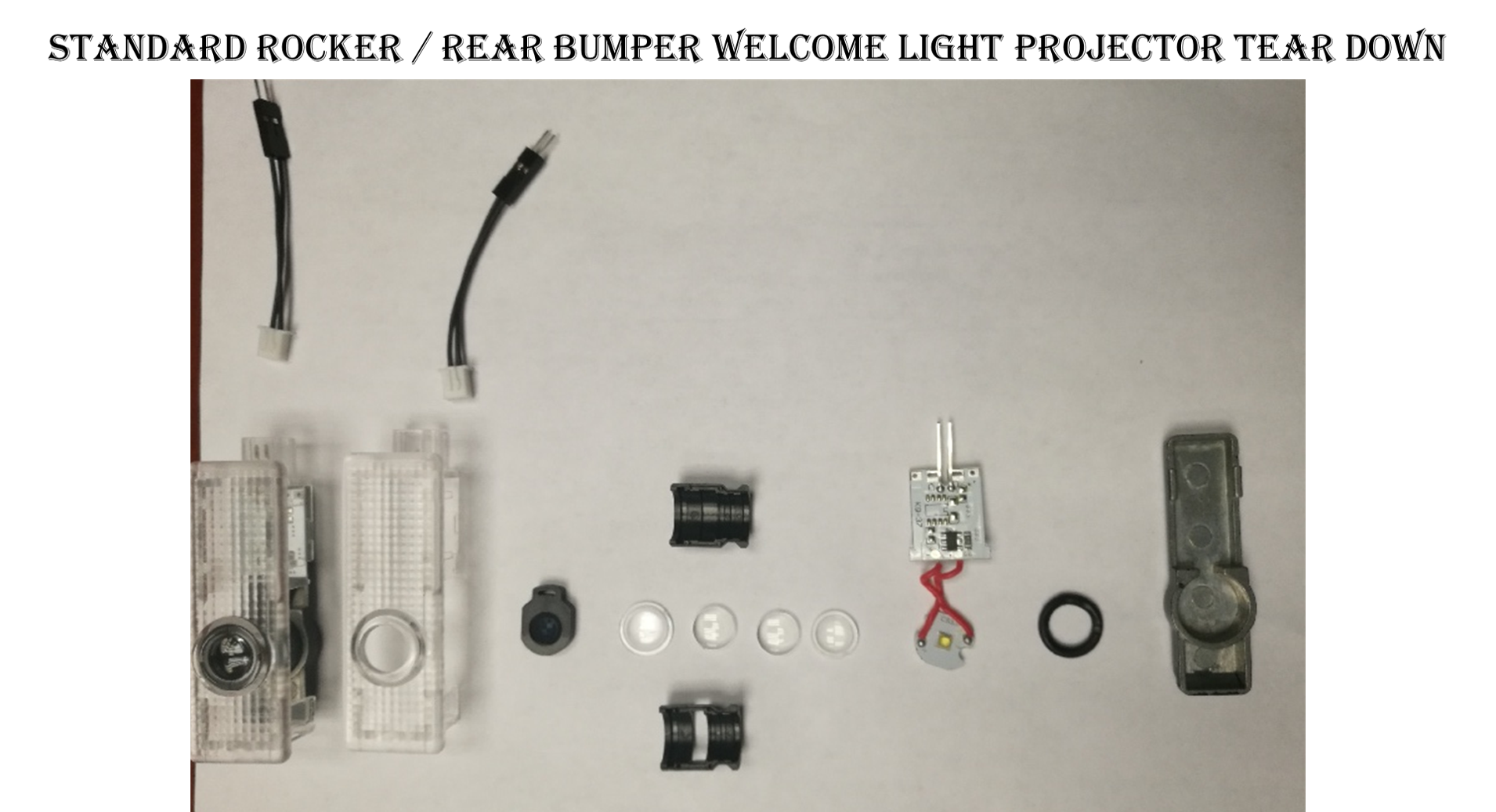

- Puddle light with monogram (projection distance is 220mm)
- Hard coated clear Polycarbonate cover
- Ingress protection design.

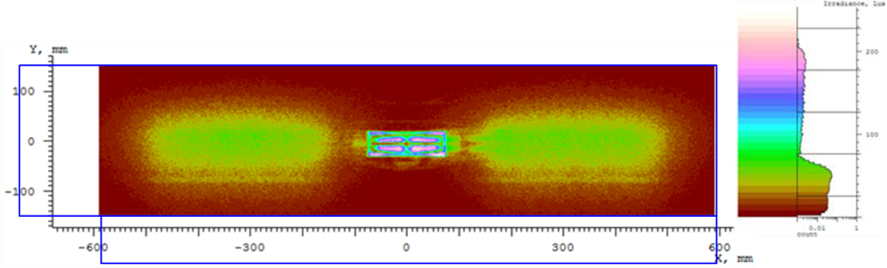

- Puddle light area is about 1180mm*300mm at 220 mm.
For more information contact alex.wang@tqtechnology.com

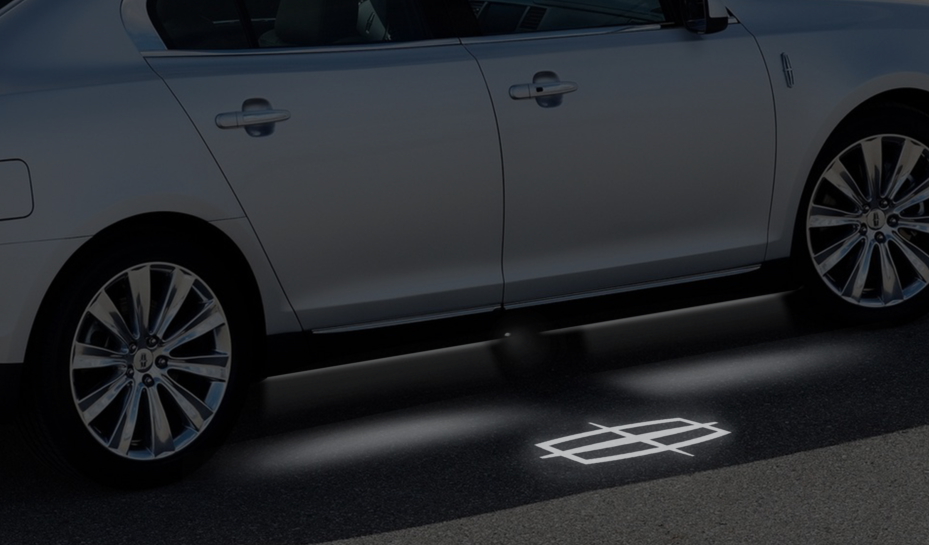

This is 1st Design Concept Rendering for projected puddle light and Lincoln monogram located in the door rocket.
Basic requirement is to light up Lincoln / Other Luxury Car monogram or welcome sequence in addition to providing functional puddle light for ingress and egress. Egress is designed to avoid stepping into puddle on days like this winter.
Design could be wireless with battery and controller lighting up the graphics upon signal from door security module or directly wired with ON / OFF controlled by door module.
- Puddle light with monogram (projection distance is 220mm)
- Hard coated clear Polycarbonate cover
- Ingress protection design.
- Puddle light area is about 1180mm*300mm at 220 mm.
- The center of the Lincoln Logo area is about 140mm*40mm.

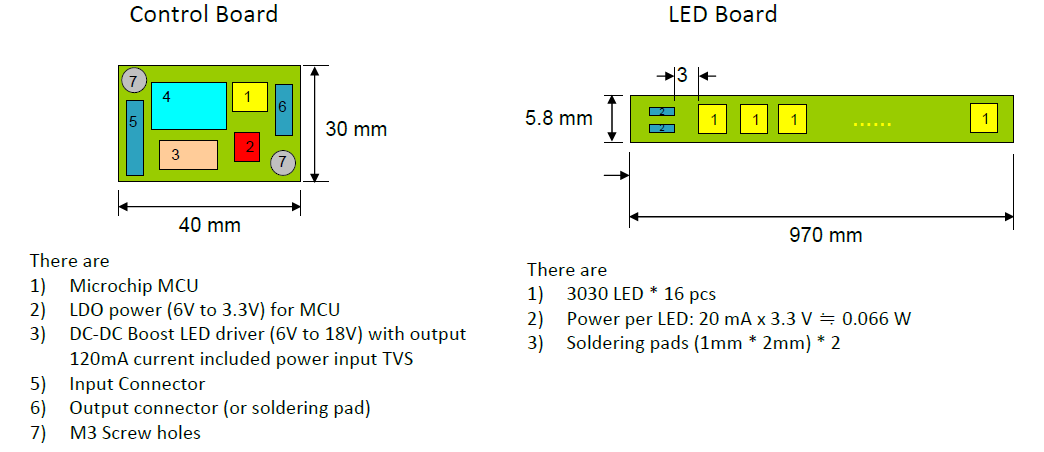

Lighting Solutions:
- Printed light guides.
- OLED projection.

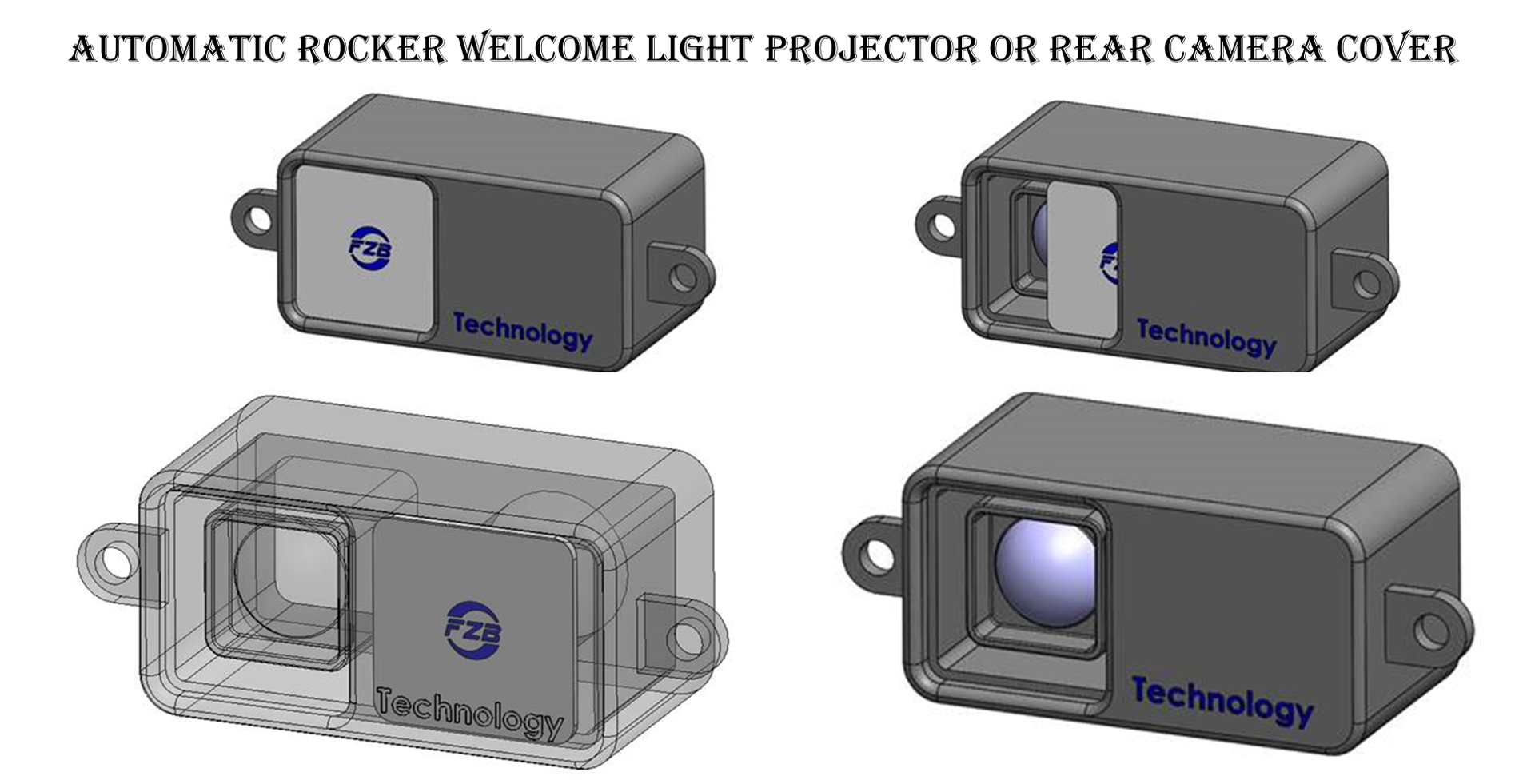

- Laser projection.
- Imbedded projection – not recommend.
Next Steps:
- Uninterrupted light feasible, but length restrictions may apply.
- Hard winter blocking with snow / mud is an open issue.
- Lighting intensity assumed as 50 Lux for day time definition.
- Need rocker CAD data and design studio concept design.
- Lighting intensity assumed as 50 Lux for day time definition.
