For more information: www.cymbet.com

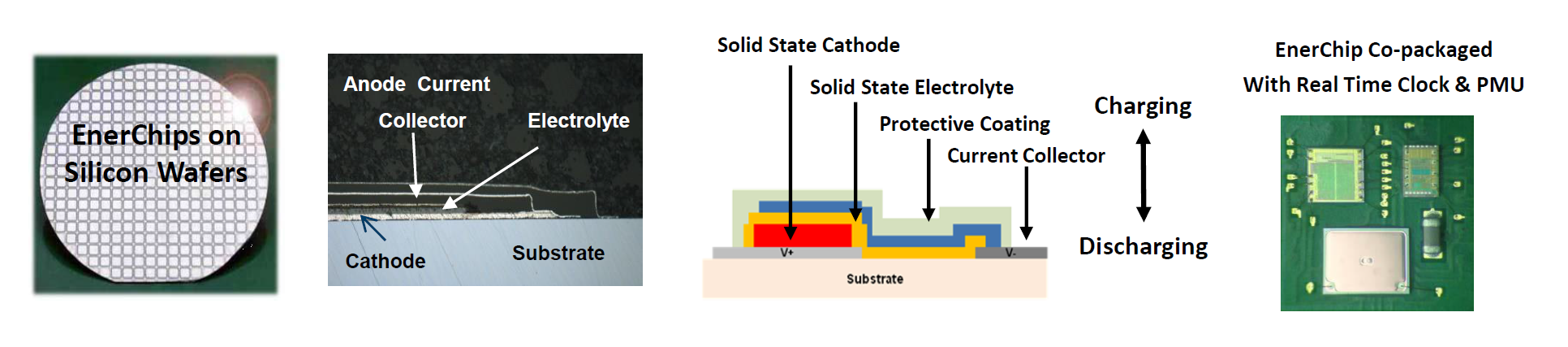

Manufactured with standard silicon CMOS-type processes:

  • Small Chip-scale footprint – bare die or packaged parts – 150 microns thick
  • Thousands of Recharge cycles.
  • Life of product” Fast recharge – 80% in 10 minutes
  • Ultra-low self-discharge + flat discharge profile.
  • Uniquely suited to Energy Harvesting
  • Low cost automated SMT assembly – Reflow solder tolerant for 240⁰C
  • Completely Eco-Friendly; No heavy metals, liquids, binders, etc.
  • Can be co-packaged or embedded with MCUs, RTCs, etc.

474

475

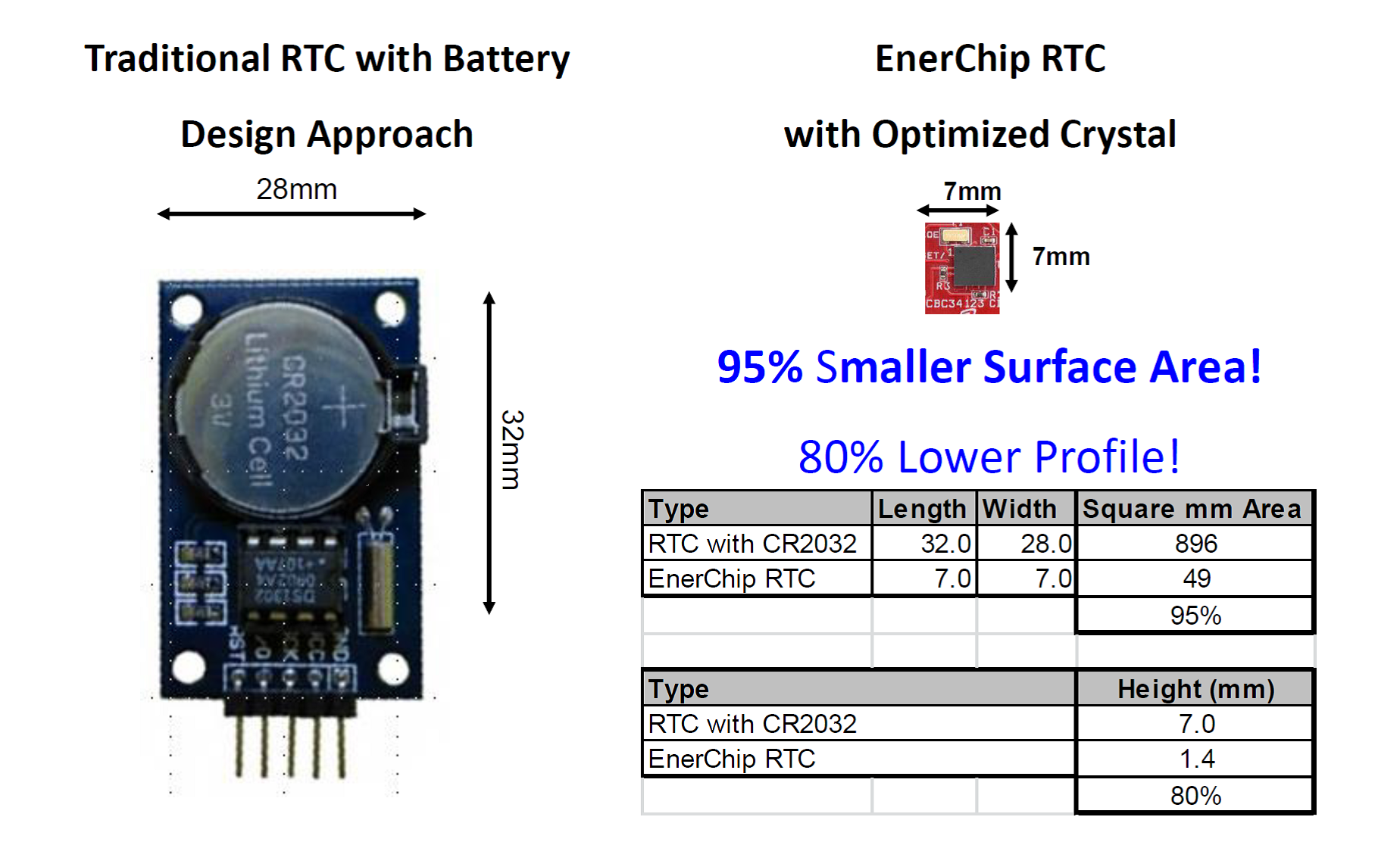

EnerChip RTC is Superior to Legacy Coin Cell

476

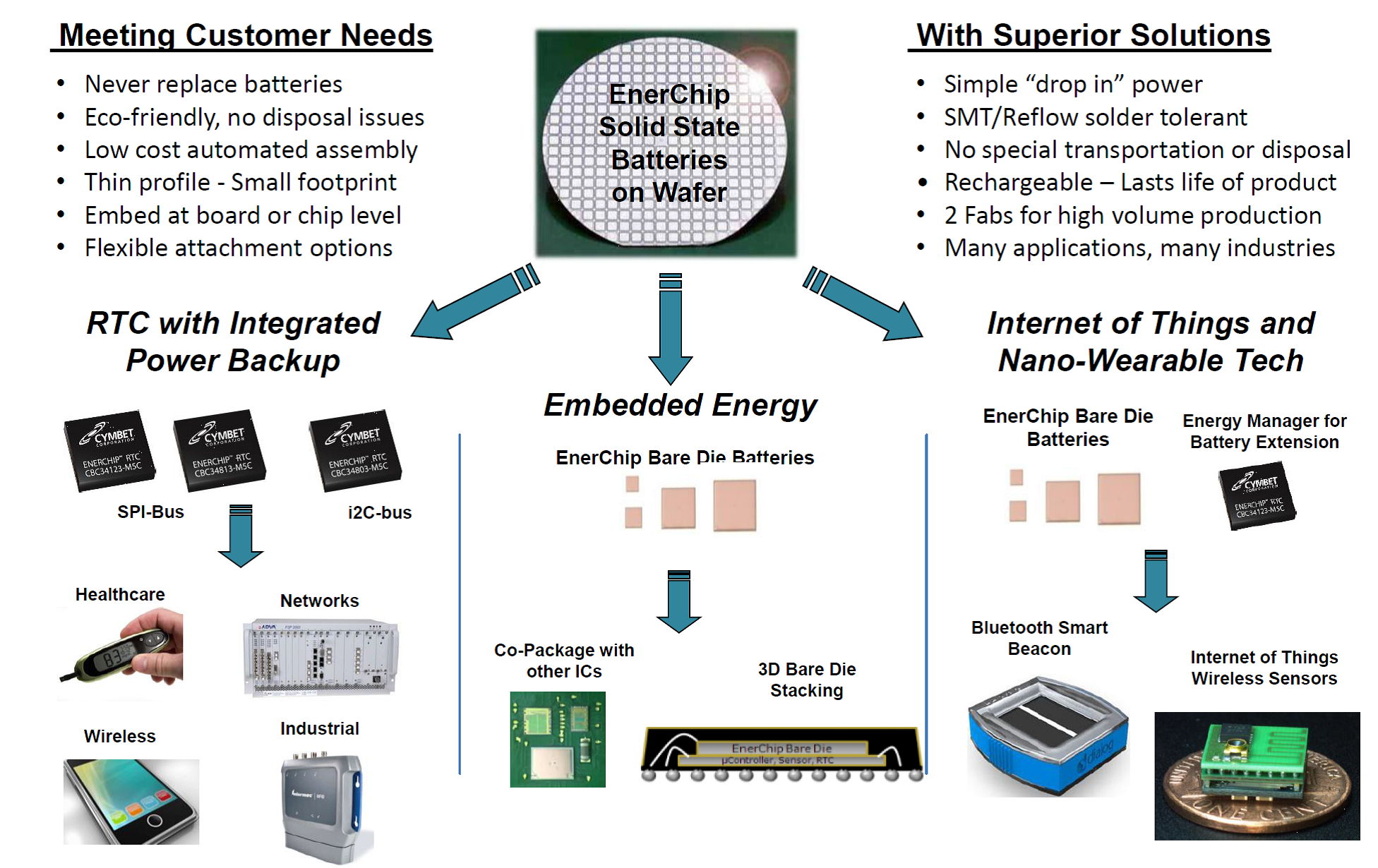

Summary:

„  The Cymbet EnerChip is the next  advancement in rechargeable micro-power sources:

  • EnerChip Bare Die go where Coin Cells & SuperCaps can’t.
  • Superior solution = SMT, Size, Green, Specs, etc…
  • EnerChip RTC products provide up to 120 Hours of backup in a 5mm x 5mm package!

„  Manufacturing Capacity – Dual Fab Sites:

  • Partnered with X-FAB, World-Class Manufacturing
  • 5-10x Capacity increase, Asia Packaging & Test

„ EnerChips in Bare Die form can be integrated into miniaturized systems as small as 2 cubic millimeters

„ The EnerChip RTC is a superior alternative to discrete RTC and Conventional Batteries or SuperCapacitors.   Cymbet eRTC is enabling technology for battery life extension applications or battery assist.

„ EnerChips enable the next generation of miniature devices for the Internet-Of-Things sensors and Wearable products

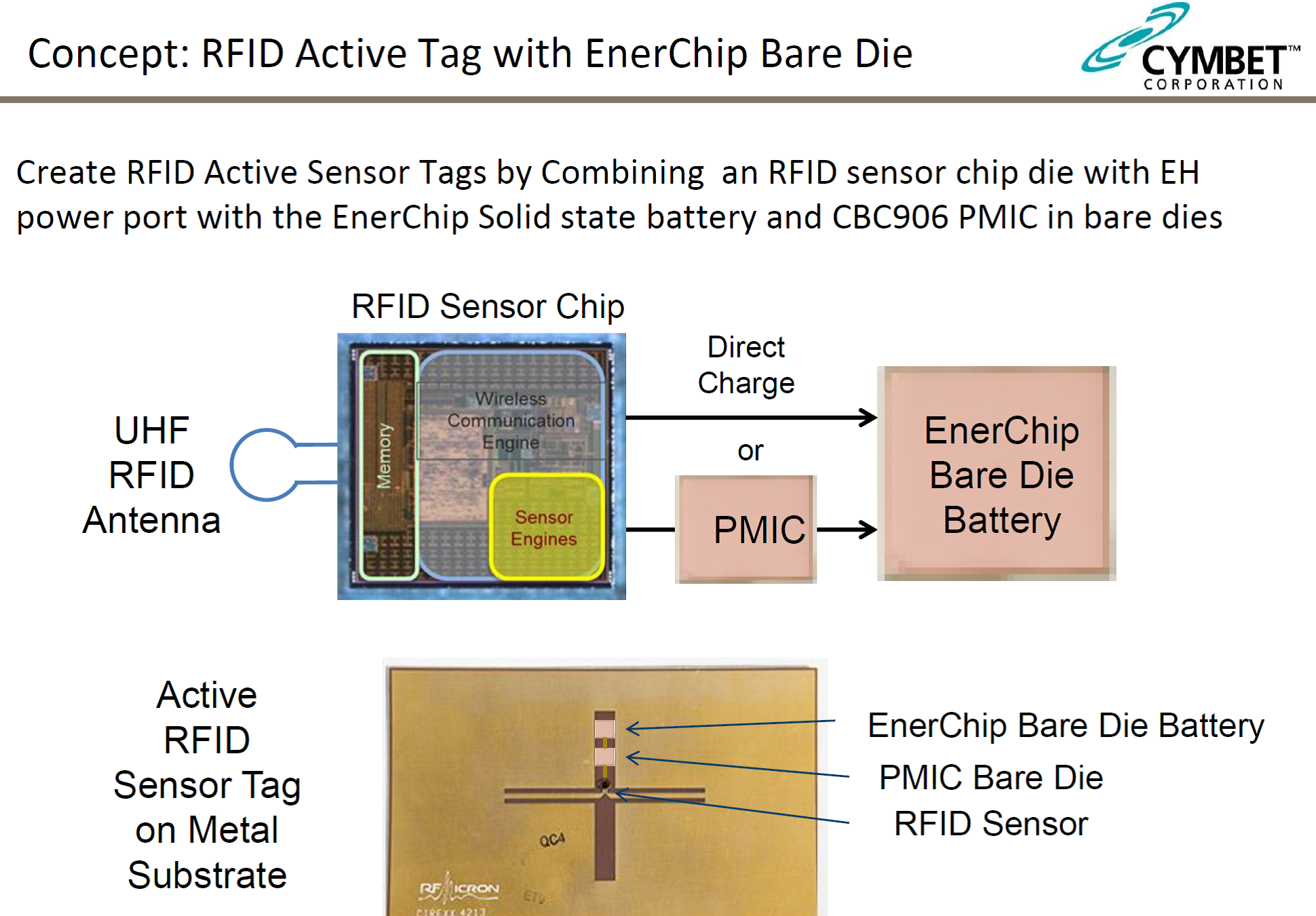

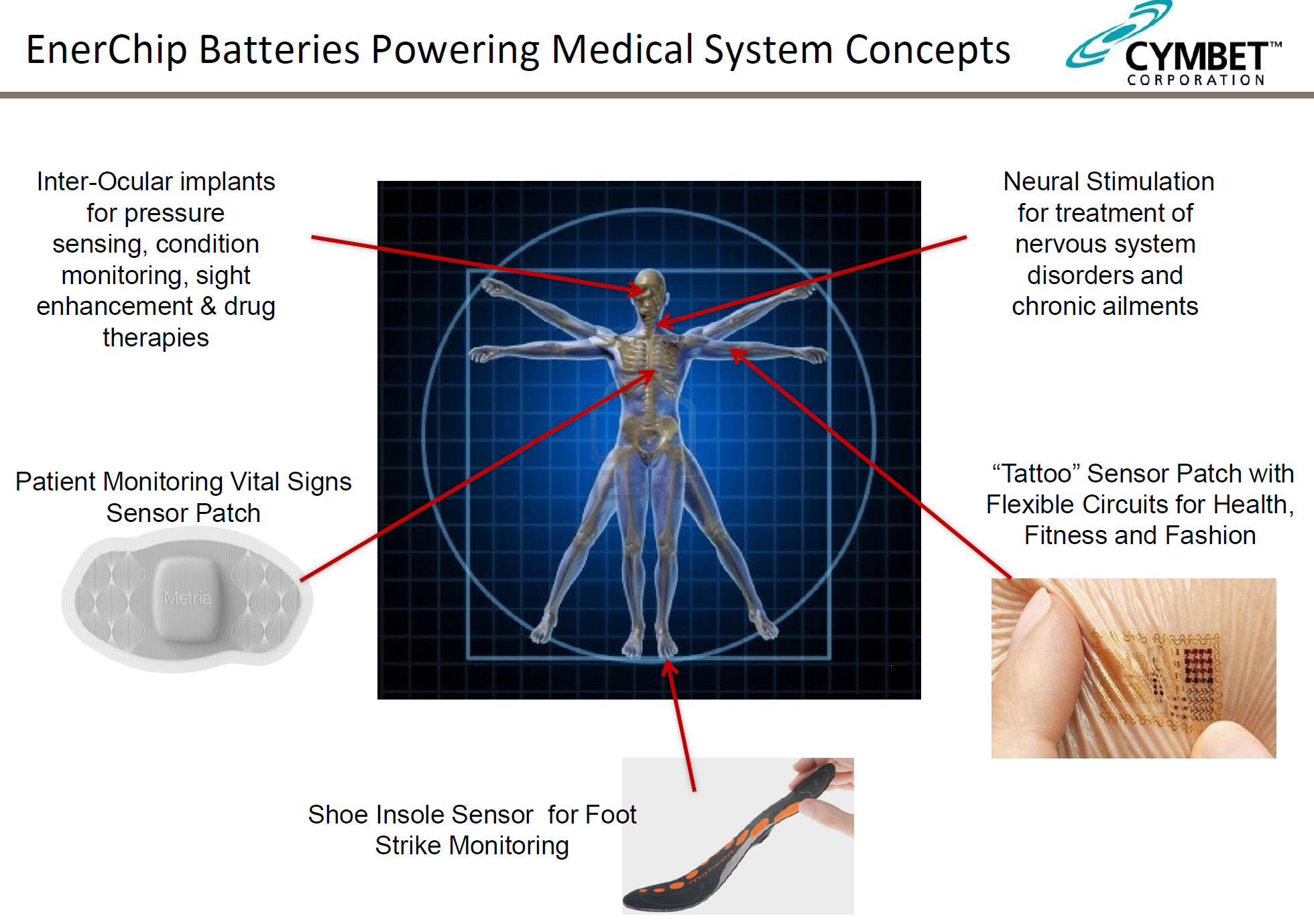

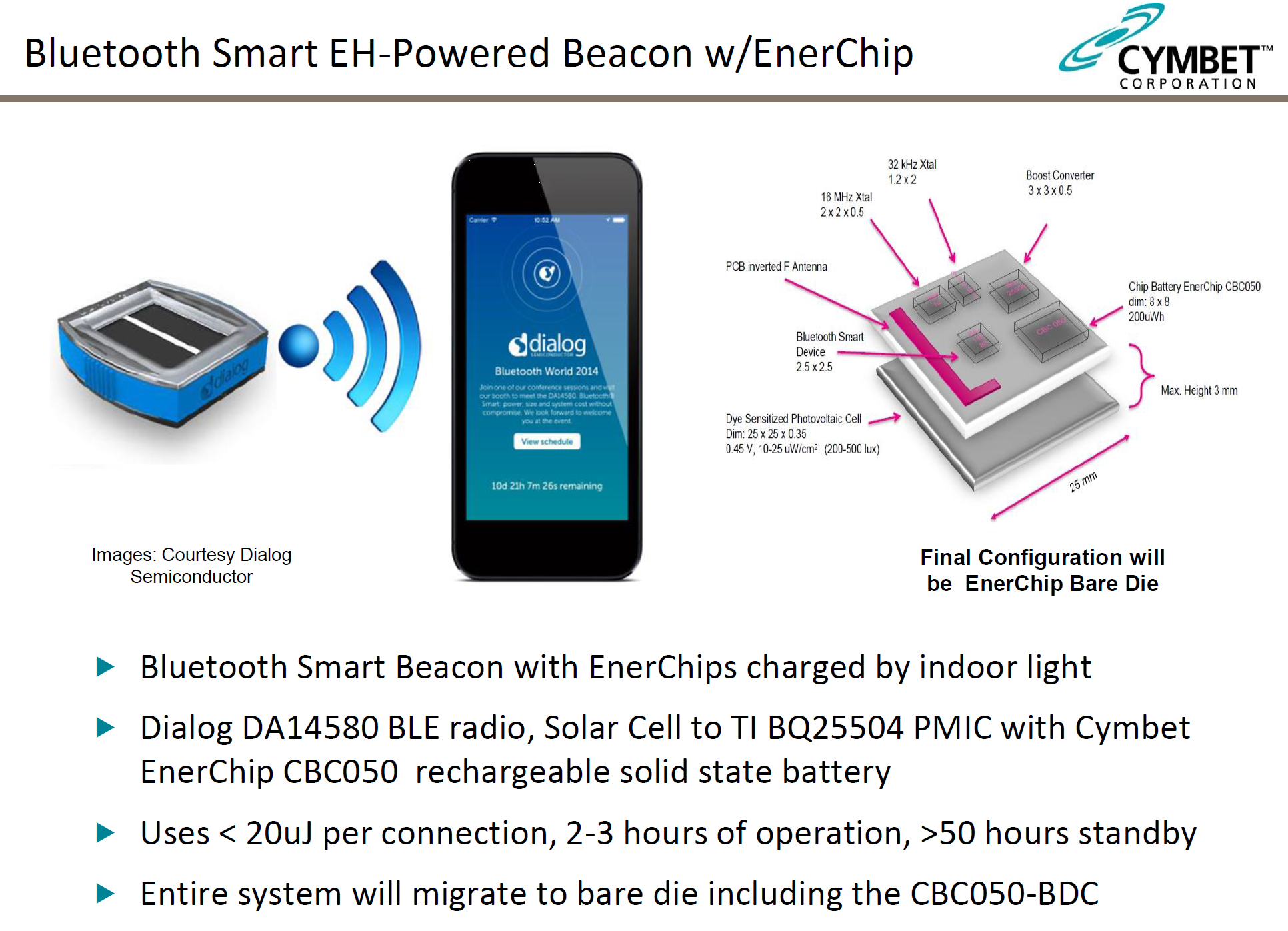

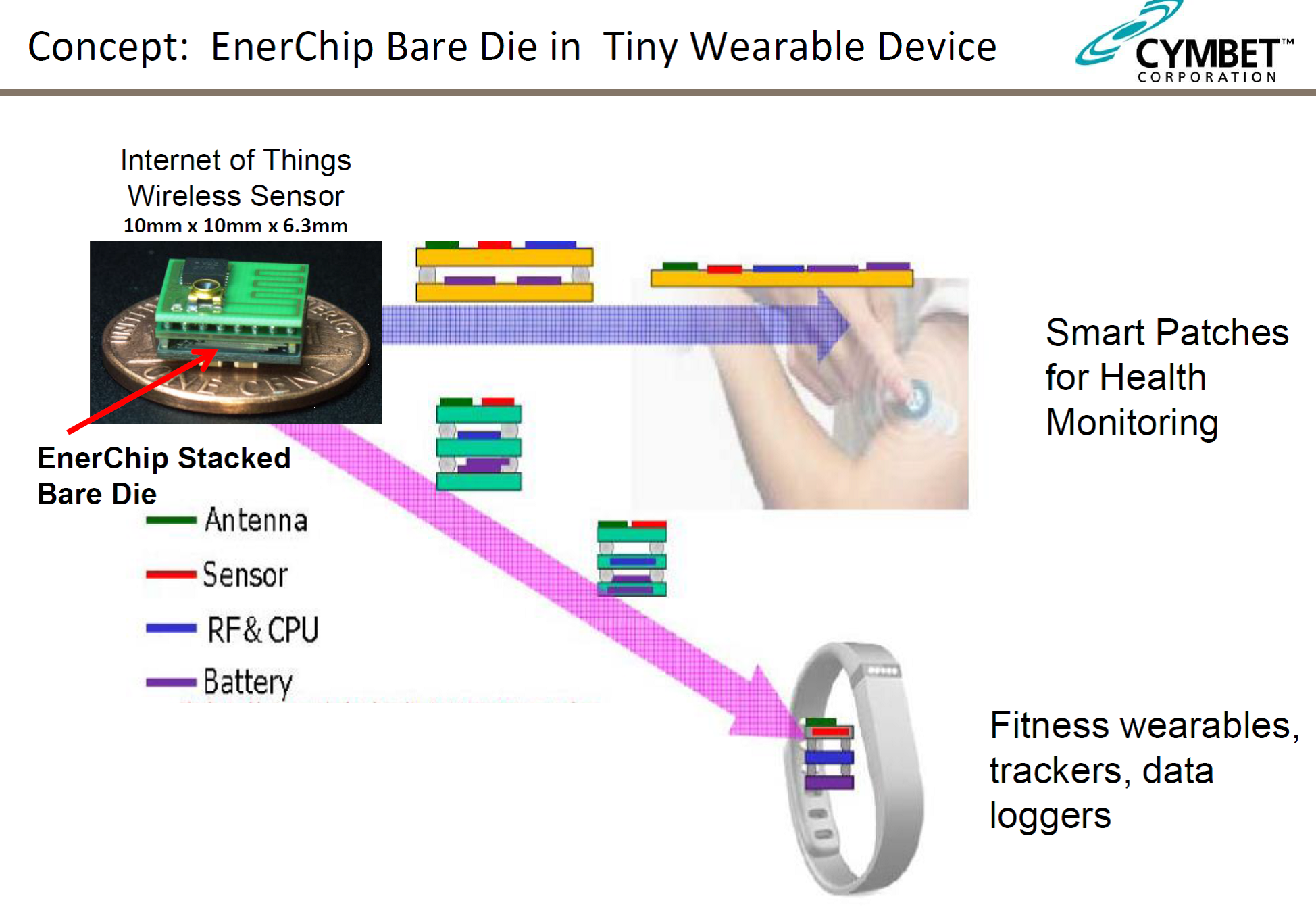

Few Application Concepts

477 478 479 480
