OLED lighting is a valid and proven lighting technology with key characteristics as below:

1. 300 lumen and 85 lm/W LT70 of 100,000 hours  CRI of > 90 and an R9 >50
2. Warm white (3000 K) and neutral white (4000 K)

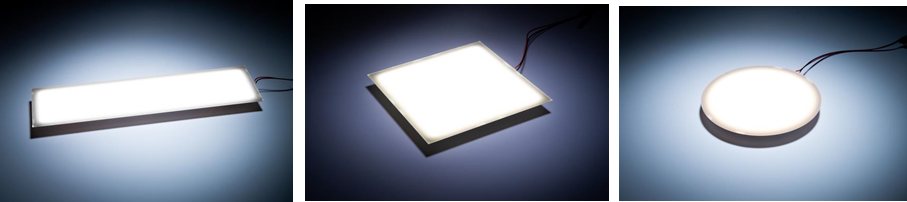

3. Three shapes and two integration levels
4. Low thickness of 1.4 mm to 2.1 mm

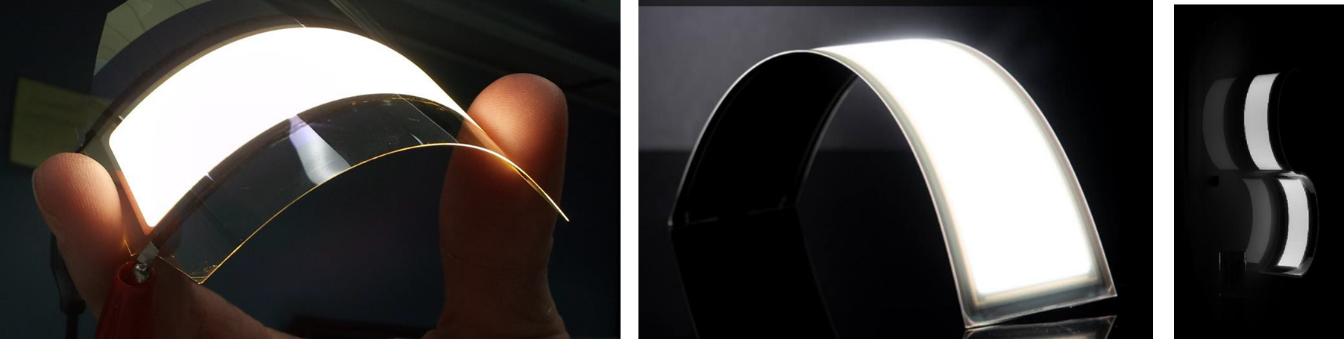

Flexible OLED Lighting as below:

1. 300 lumen and 63 lm/W
2. Warm white (3000 K) and neutral white (4000 K)
3. Excellent light quality (CRI of >
4. 90 and an R9 >50)
5. LT70 of up to 50,000 hours Low thickness of 0.5 mm
6. Bend radius to 100mm, both concave and convex
7. Based on Corning Radius



Automotive and  Specialty:

1. Deep red for taillight with 0.300 as y-coordinate (dominant  wavelength 627nm well within  ECE Red regulations).
2. 5th generation stack, 2-fold tested on mass manufacturing  line to meet automotive OEM
3. Stacking enables high luminance @ long lifetime.

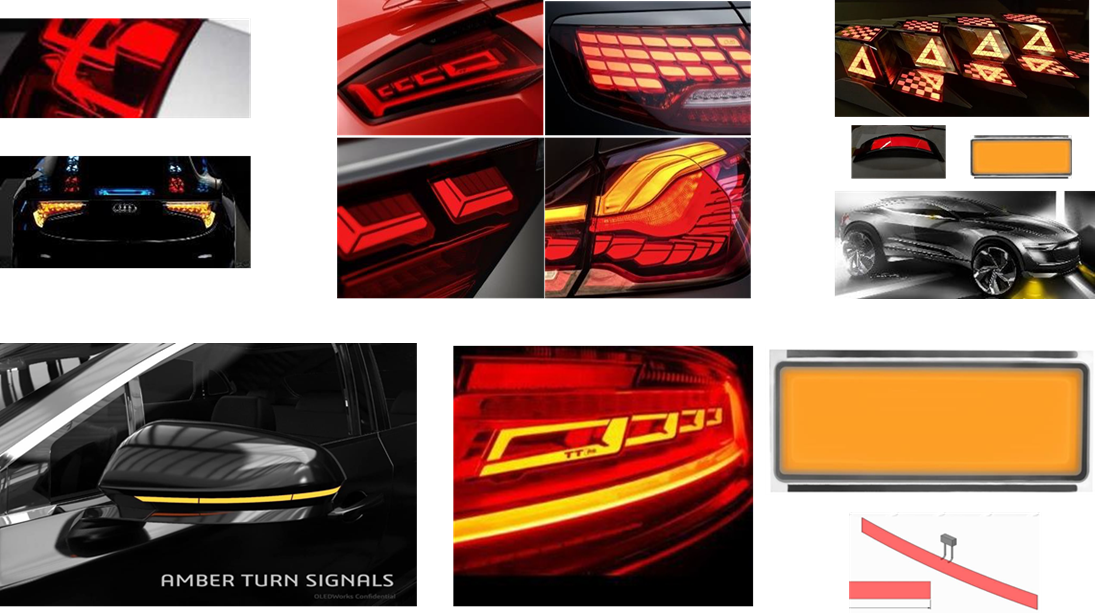

Automotive  Exterior Lighting:

1. Rear Combination Taillight-RCL CHMSL
2. Turn Signal
3. Indicator Exterior Lighting
4. Emblem or Logo Branded Lighting



OLED Light Principles – Cabin/Interior

Automotive  Interior Lighting:

1. Distributed Dome Lighting Branded Dome Lighting  Vanity Mirror
2. Mirror Product with LOGO Sill Plate
3. Decorative Paneling/Fabric

OLED Light Principles- Automotive
