E-PEAS Electronic – Portable Energy Autonomous Systems – Energy Harvesting

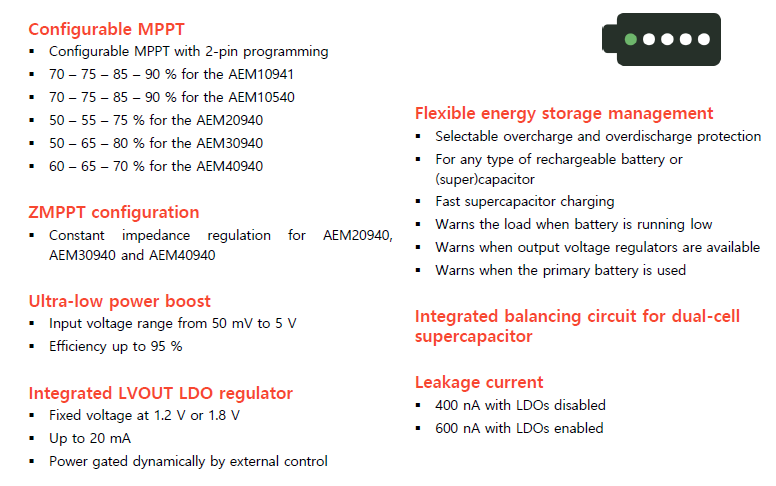

Key Features:
- Lowest power Coldstart: 3µW
- Boost Minimum Voltage: 50 mV
- Low quiescent current: 400 nA
- Smallest BOM: only 7 passives
- Primary battery: optional
- Dual cells supercapacitor balancing circuit: avoiding additional external BOM cost (BAL)
- Open-circuit and constant impedance (ZMPP) MPP tracking
- Energy Storage Management Flexibility
- Easy Integration
- Flexibility
- Customization

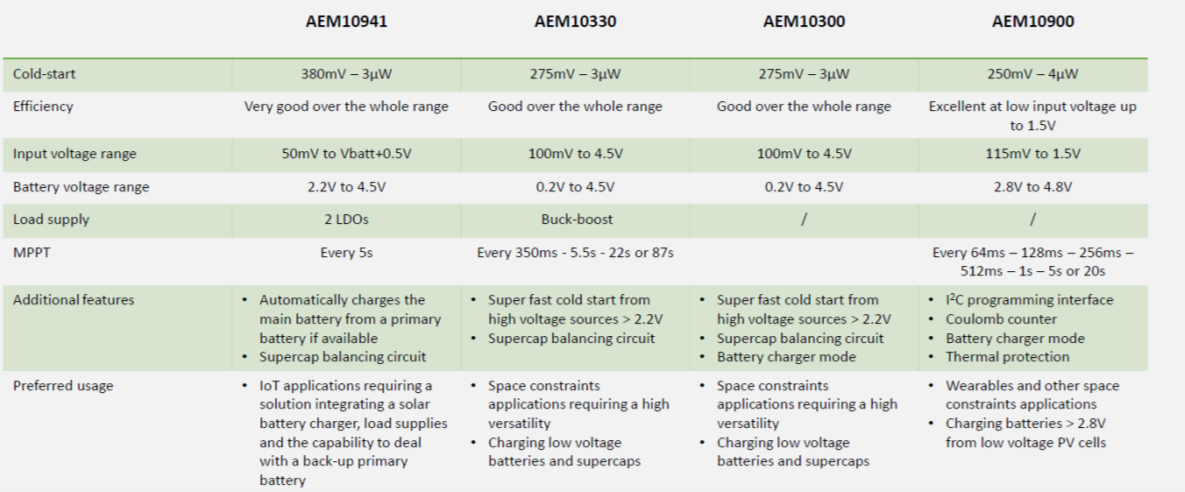

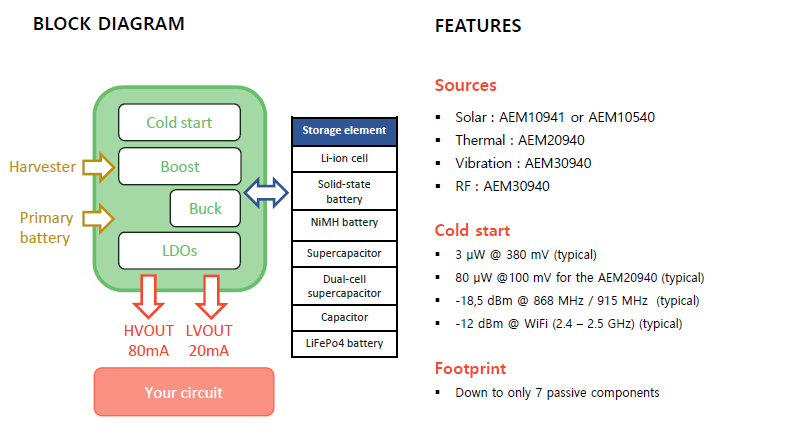

Ambient Energy Manager – AEM PMIC family

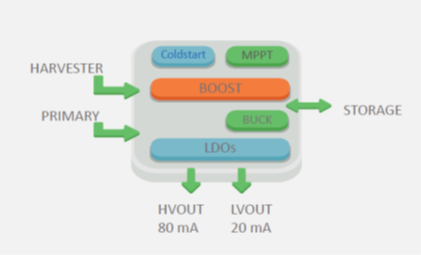

The AEM is an integrated energy management circuit that extracts DC or AC power from different types of ambient energy harvesters to simultaneously store energy in a rechargeable element and supply your system with two independent regulated voltages. The AEM family enables you to extend the battery lifetime and ultimately eliminates the primary energy storage element in a large range of wireless applications such as industrial monitoring, geolocation, home automation, tracking and wireless sensor nodes.
For More information CLICK www.e-peas.com or contact designhmi@gmail.com
