Solid State LiDAR Sensor

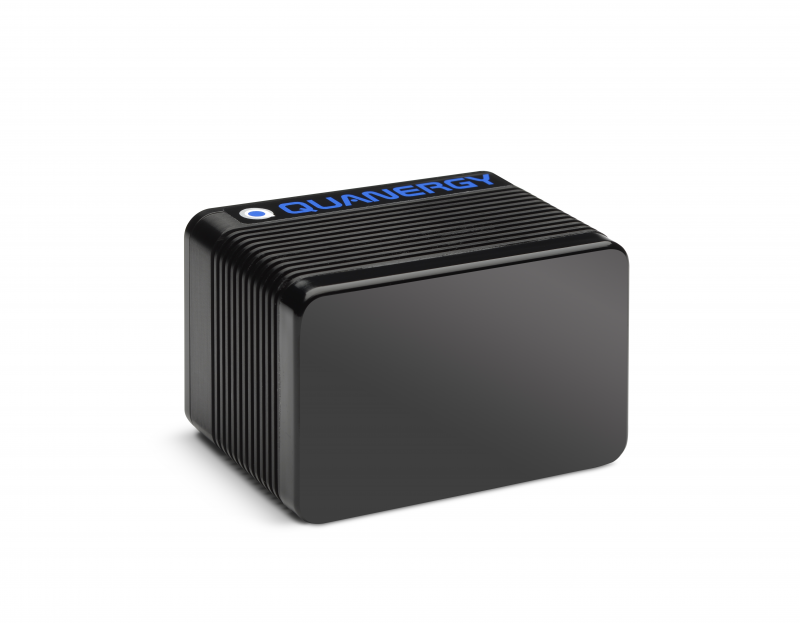

QUANERGY S3 solid state sensor’s housing fits in the palm of your hand for seamless integration into the design of any vehicle. The elimination of all moving parts improves performance and reliability over mechanical models. Through the interaction of three major components, the S3 generates half a million data points per second. Lasers emit collimated light pulses in a 120° arc. Light receivers detect the reflected light pulses. Signal processors calculate the Time-of-Flight (TOF) of each light pulse. With the ability to scan in every direction, the unit creates a live 3D view around a vehicle to detect, classify, and track objects in the scene.

QUANERGY M8 LiDAR sensor comes with 360° field of view, long range, high accuracy, fine resolution, high reliability, light weight, and low power consumption,

Their 3D sensing M8 LiDAR sensor enables new applications in automotive and transportation and other fields. It enables 3D detection, measurement, tracking, identification and classification of items, as well as triggering actions based on real-time scenario analysis powered by advanced perception software.

In automotive vehicle accidents, due to blind spots, poor visibility, changes in traffic flow, and distraction can be virtually eliminated using LiDAR in Advanced Driver Assist Systems (ADAS) and autonomous vehicles.

Product Features

• 8 sensing layers
• Wide Field of View (FOV)
• Long measurement range
• Fine horizontal resolution
• Day and night vision; no IR heat-signature needed
• Resistance to false returns caused by aerosols (dust, mist, rain, snow)
• PPS input signal to timestamp data and for synchronizing multiple sensors
• Light tight design to eliminate cross talk from multiple sensors
• Linux and Windows drivers for easy configuration, integration, and testing
• ROS drivers
• Development kits with a QPU (Quanergy Processing Unit) and visualization/data
• recording software for easy out-of-the-box operation

Disruptive Design: Patent-pending technology deliver solutions that are:

1. Low cost
2. High performance (range, resolution, etc.)
3. Uncompromised reliability
4. Compact
5. Lightweight
6. Low power consumption

For more information please click http://quanergy.com/products/ or write to Drew Madhu at drew.madhu@quanergy.com.
